AU-SurreyHills: TEB-CNRM

NOTE: Results presented here are highly dependent on how models are configured in this experiment and may be subject to variable output formatting errors. Results are not intended to indicate the quality of any individual model, but to help participants better understand and improve modelling approaches in different urban environments.

Submitted metadata

• Baseline
• Detailed

Error metrics

flux	experiment	MAE	MBE	nSD	R	5th	95th	RMSE	cRMSE	AMBE	1-nSD	1-R	nSkewness	nKurtosis	Overlap
SWup	baseline	11.5345	-11.5124	0.724222	0.99392	1.19681	33.6593	16.1196	0.291307	11.5124	0.275778	0.00607995	0.0251013	0.761885	0.13946
SWup	detailed	6.18854	-5.87252	0.850936	0.993936	1.17555	18.3885	9.1271	0.180389	5.87252	0.149064	0.006064	0.00754831	0.379452	0.114715
LWup	baseline	14.9519	11.5403	1.41527	0.961276	4.77818	47.197	21.0925	0.531098	11.5403	0.415273	0.0387245	0.0803154	0.190093	0.159811
LWup	detailed	12.0715	12.0258	0.993706	0.988406	10.62	11.4594	13.0433	0.151923	12.0258	0.00629555	0.0115935	0.0619981	0.100204	0.22542
Qle	baseline	19.3332	-6.1977	0.818735	0.457059	4.34062	14.242	33.3691	0.96016	6.1977	0.181265	0.542941	0.361474	0.203504	0.228802
Qle	detailed	19.4024	2.87149	0.852977	0.532479	4.72086	4.35366	31.0409	0.905089	2.87149	0.147023	0.467521	0.173321	0.546075	0.142386
Qh	baseline	23.201	16.2625	1.05719	0.933134	15.7754	42.9532	32.9272	0.380331	16.2625	0.0571915	0.0668662	0.0600987	0.211911	0.236597
Qh	detailed	27.3981	19.1412	0.945804	0.920658	16.0941	15.5542	35.1219	0.39118	19.1412	0.054196	0.0793422	0.153487	0.285709	0.331376
Qtau	baseline	0.149922	0.0453675	1.03805	0.847604	0.02544	0.0667424	0.210561	0.563772	0.0453675	0.0380532	0.152396	0.206733	0.566247	0.160652
Qtau	detailed	0.32929	0.302068	1.54949	0.841025	0.072075	0.694681	0.443779	0.891401	0.302068	0.549487	0.158975	0.11388	0.404422	0.304206

• MAE: mean absolute error (close to 0 is better)
• MBE: mean bias error (close to 0 is better)
• NSD: ratio of model to obs standard deviation (close to 1 is better)
• R: Pearson’s correlation (close to 1 is better)
• all others: closer to 0 is better

Link to variable definitions

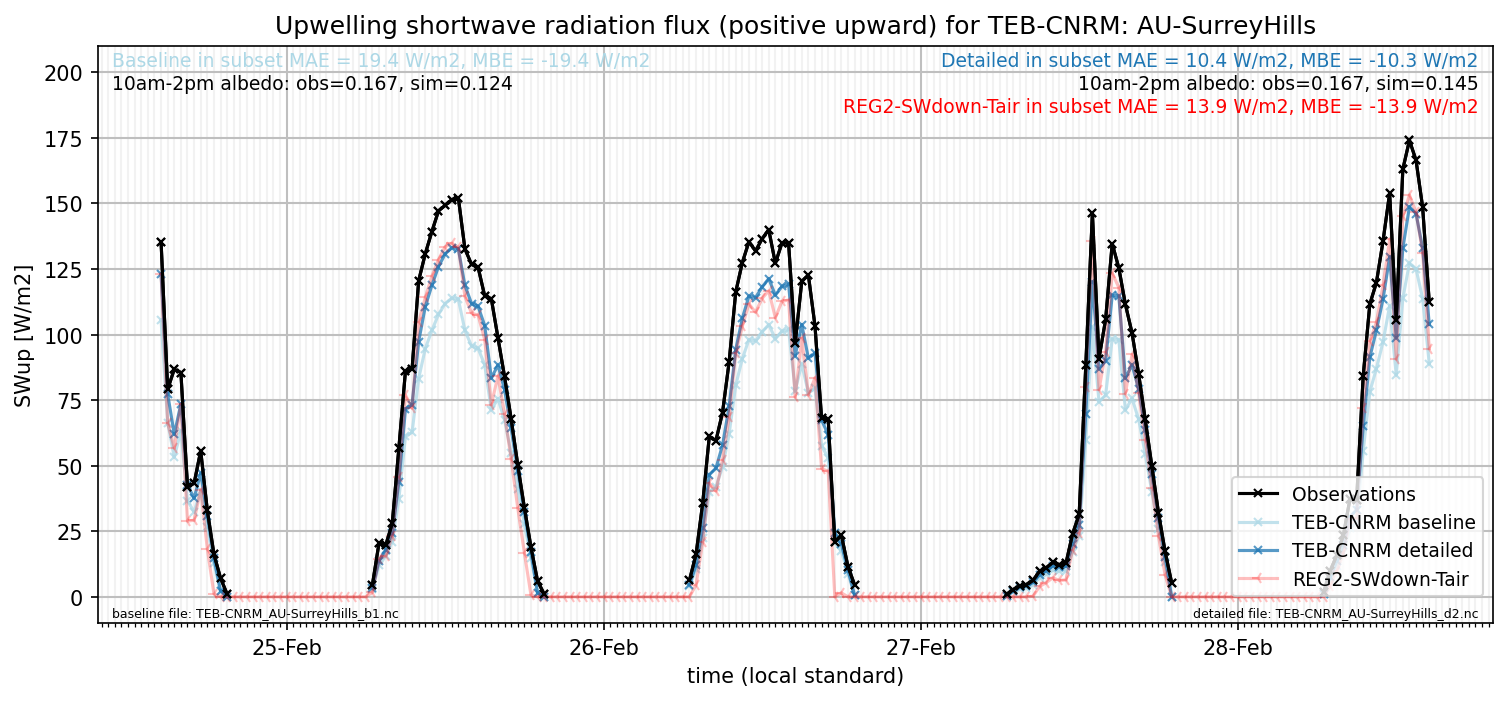

subset_SWup_v0-9

out of range: baseline

out of range: detailed

Link to variable definitions
