AU-SurreyHills: UCLEM

NOTE: Results presented here are highly dependent on how models are configured in this experiment and may be subject to variable output formatting errors. Results are not intended to indicate the quality of any individual model, but to help participants better understand and improve modelling approaches in different urban environments.

Submitted metadata

• Baseline
• Detailed

Error metrics

flux	experiment	MAE	MBE	nSD	R	5th	95th	RMSE	cRMSE	AMBE	1-nSD	1-R	nSkewness	nKurtosis	Overlap
SWup	baseline	3.52124	-2.75006	0.941863	0.994597	0.655	8.3227	5.28216	0.116434	2.75006	0.0581364	0.00540261	0.0266621	0.418992	0.101003
SWup	detailed	2.80656	-1.81729	0.962333	0.995281	0.6214	5.3667	4.36554	0.102479	1.81729	0.037667	0.00471938	0.00388612	0.0120479	0.0941945
LWup	baseline	19.516	19.4838	1.27059	0.982874	9.8589	41.9275	22.5529	0.341674	19.4838	0.270591	0.017126	0.0290854	0.0139027	0.245871
LWup	detailed	14.4231	13.4682	1.248	0.971056	1.7488	32.8929	18.1439	0.365716	13.4682	0.247999	0.0289439	0.00992955	0.0221268	0.194729
Qle	baseline	17.5661	-10.0156	0.669989	0.598819	1.92529	31.3606	29.2268	0.80404	10.0156	0.330011	0.401181	0.538044	1.9633	0.245812
Qle	detailed	17.3236	-6.52837	0.887175	0.62026	1.17009	13.0903	29.0381	0.828566	6.52837	0.112826	0.37974	0.627549	2.18241	0.255931
Qh	baseline	19.2464	-9.37218	0.70142	0.915914	5.8923	51.2812	35.5178	0.455093	9.37218	0.29858	0.0840859	0.0866196	0.107045	0.112141
Qh	detailed	18.4627	-3.71387	0.745784	0.92806	10.4063	35.8974	31.4341	0.414643	3.71387	0.254215	0.0719398	0.0703718	0.123055	0.136724
Qtau	baseline	0.125682	-0.0309414	0.90514	0.85293	0.00791	0.1177	0.193826	0.524631	0.0309414	0.0948601	0.14707	0.18665	0.514215	0.112177
Qtau	detailed	0.17309	-0.166376	0.589691	0.8557	0.01101	0.4905	0.269652	0.581841	0.166376	0.410309	0.1443	0.192989	0.478213	0.211792

• MAE: mean absolute error (close to 0 is better)
• MBE: mean bias error (close to 0 is better)
• NSD: ratio of model to obs standard deviation (close to 1 is better)
• R: Pearson’s correlation (close to 1 is better)
• all others: closer to 0 is better

Link to variable definitions

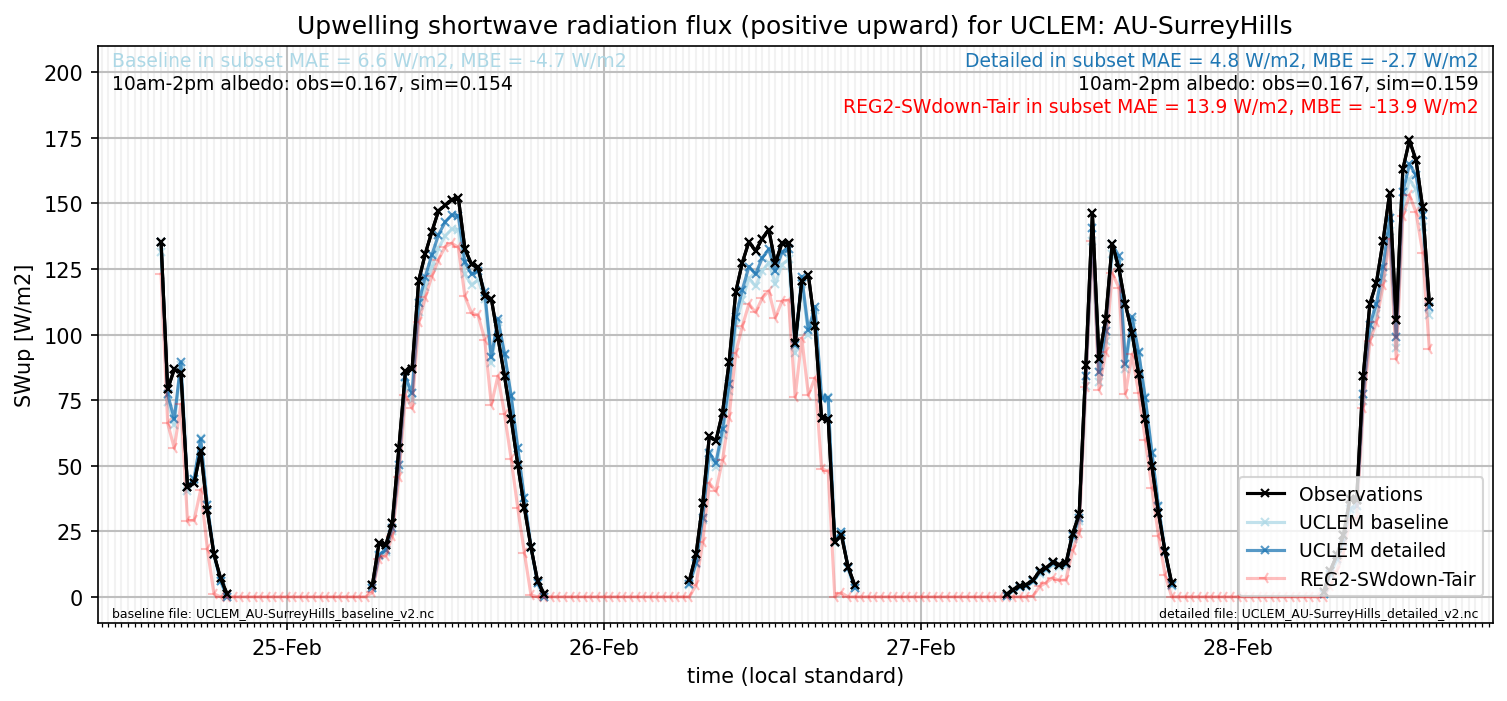

subset_SWup_v0-9

out of range: baseline

out of range: detailed

Link to variable definitions
