FI-Kumpula: NOAH-SLUCM

NOTE: Results presented here are highly dependent on how models are configured in this experiment and may be subject to variable output formatting errors. Results are not intended to indicate the quality of any individual model, but to help participants better understand and improve modelling approaches in different urban environments.

Submitted metadata

• Baseline
• Detailed

Error metrics

flux	experiment	MAE	MBE	nSD	R	5th	95th	RMSE	cRMSE	AMBE	1-nSD	1-R	nSkewness	nKurtosis	Overlap
SWup	baseline	8.85669	5.49684	1.15068	0.976204	0.211892	18.5145	13.9452	0.278327	5.49684	0.150664	0.0237957	0.0496597	0.150138	0.12005
SWup	detailed	5.74138	-0.377057	1.04716	0.978146	0.0150959	0.784355	10.0948	0.219074	0.377057	0.0471506	0.0218538	0.0794645	0.180247	0.103897
LWup	baseline	9.50011	5.92131	1.15069	0.986395	2.80652	29.381	13.609	0.232417	5.92131	0.150687	0.0136049	1.90926	0.476393	0.0816103
LWup	detailed	12.4564	9.32164	1.22035	0.977053	1.21219	45.0834	19.43	0.32336	9.32164	0.220347	0.0229473	3.25869	1.00455	0.0907444
Qle	baseline	14.4355	-9.19282	0.634457	0.780002	3.54455	37.3984	25.9921	0.642479	9.19282	0.365542	0.219998	0.116715	0.137567	0.213121
Qle	detailed	14.4349	-9.1831	0.634846	0.779751	3.54455	37.1649	25.9943	0.64264	9.1831	0.365153	0.220249	0.117848	0.142219	0.21364
Qh	baseline	26.2324	-17.5943	0.739917	0.792688	2.95702	57.089	40.2107	0.611908	17.5943	0.260084	0.207312	0.150718	0.309726	0.247917
Qh	detailed	26.2152	-18.1033	0.744664	0.801181	5.23347	56.663	39.8652	0.601085	18.1033	0.255336	0.198819	0.0929691	0.206363	0.24092

• MAE: mean absolute error (close to 0 is better)
• MBE: mean bias error (close to 0 is better)
• NSD: ratio of model to obs standard deviation (close to 1 is better)
• R: Pearson’s correlation (close to 1 is better)
• all others: closer to 0 is better

Link to variable definitions

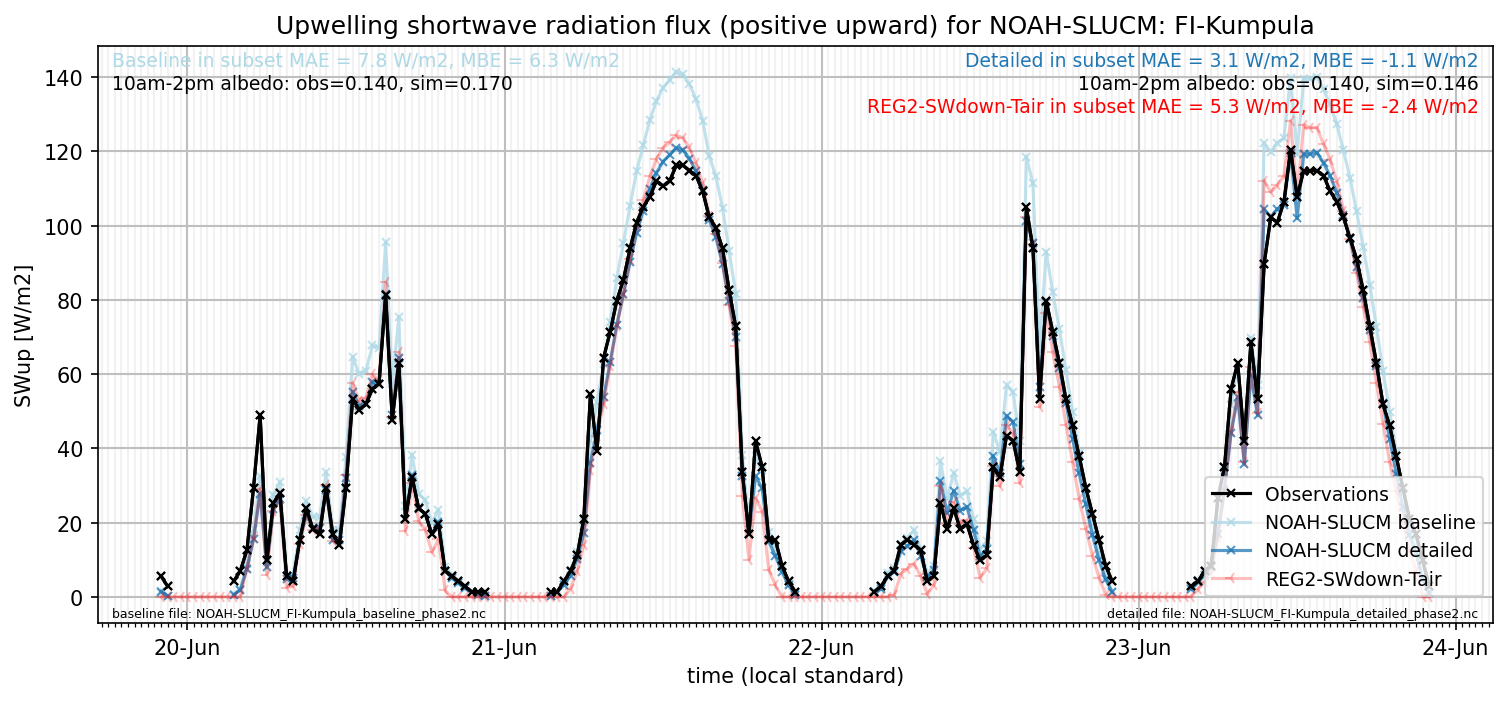

subset_SWup_v0-9

out of range: baseline

out of range: detailed

• NOAH-SLUCM Qle max value of 860.6373 is greater than expected 700.0 [W/m2]

Link to variable definitions
