Urban-PLUMBER

A multi-site model evaluation project for urban areas

Phase 2 Phase 1 Download project protocol

Mathew Lipson (UNSW), Sue Grimmond (Reading), Martin Best (Met Office),
with observational and modelling participants.

FI-Torni: UCLEM

NOTE: Results presented here are highly dependent on how models are configured in this experiment and may be subject to variable output formatting errors. Results are not intended to indicate the quality of any individual model, but to help participants better understand and improve modelling approaches in different urban environments.

Submitted metadata

Error metrics

flux	experiment	MAE	MBE	nSD	R	5th	95th	RMSE	cRMSE	AMBE	1-nSD	1-R	nSkewness	nKurtosis	Overlap
SWup	baseline	16.948	16.697	1.52759	0.939312	2.7304	38.4399	25.0307	0.681007	16.697	0.527596	0.0606883	0.677966	1.18909	0.226361
SWup	detailed	5.59844	2.70064	1.11694	0.931545	1.8021	4.9511	11.4983	0.40816	2.70064	0.116937	0.0684552	0.803251	1.32726	0.126361
LWup	baseline	15.1256	10.3156	1.31393	0.975137	6.04328	46.5436	22.3536	0.404833	10.3156	0.313931	0.0248628	1.11484	0.63433	0.113741
LWup	detailed	10.9758	7.59013	1.19892	0.983094	3.47548	30.1289	15.8061	0.283029	7.59013	0.198917	0.0169055	0.729179	0.357935	0.096864
Qle	baseline	19.4975	-12.9897	0.74986	0.404631	2.2109	33.6879	33.5336	0.977475	12.9897	0.25014	0.595369	0.457467	1.1629	0.410399
Qle	detailed	19.761	-14.118	0.690323	0.348545	2.973	45.8085	34.5684	0.997662	14.118	0.309677	0.651455	0.392555	2.33869	0.399064
Qh	baseline	38.0305	-24.7309	0.731664	0.73223	5.3293	57.1151	54.1002	0.681058	24.7309	0.268337	0.26777	0.254819	0.303694	0.310178
Qh	detailed	36.1614	5.09823	0.794516	0.720262	17.7555	21.2537	49.5529	0.697665	5.09823	0.205485	0.279738	0.0547589	0.0469565	0.223062

MAE: mean absolute error (close to 0 is better)
MBE: mean bias error (close to 0 is better)
NSD: ratio of model to obs standard deviation (close to 1 is better)
R: Pearson’s correlation (close to 1 is better)
all others: closer to 0 is better

Link to variable definitions

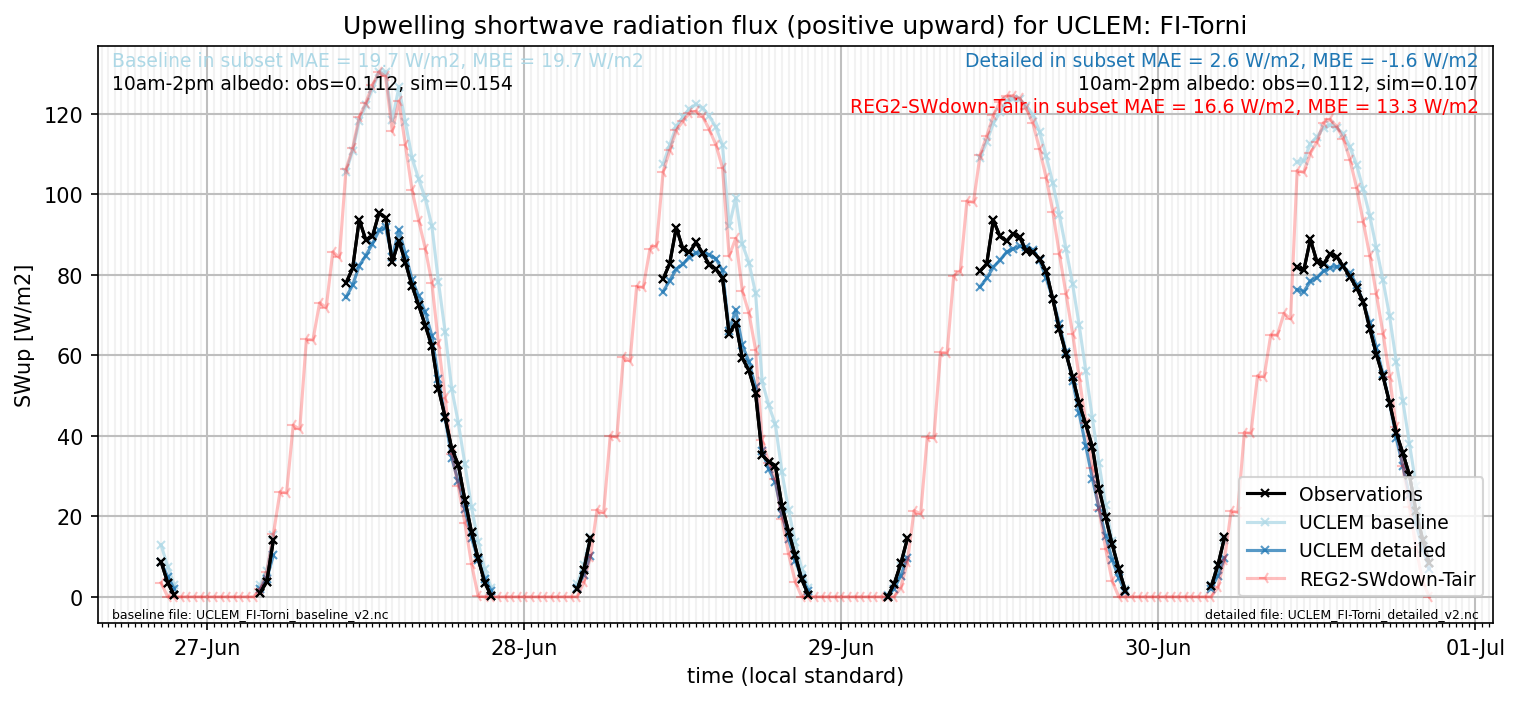

subset_SWup_v0-9

out of range: baseline

UCLEM Qle max value of 867.0872 is greater than expected 700.0 [W/m2]

out of range: detailed

UCLEM Qle max value of 702.8712 is greater than expected 700.0 [W/m2]
