FR-Capitole: JULES_1T

NOTE: Results presented here are highly dependent on how models are configured in this experiment and may be subject to variable output formatting errors. Results are not intended to indicate the quality of any individual model, but to help participants better understand and improve modelling approaches in different urban environments.

Submitted metadata

• Baseline
• Detailed

Error metrics

flux	experiment	MAE	MBE	nSD	R	5th	95th	RMSE	cRMSE	AMBE	1-nSD	1-R	nSkewness	nKurtosis	Overlap
SWup	baseline	13.6677	12.0729	1.43051	0.990299	2.59152	42.9068	19.6062	0.461622	12.0729	0.430514	0.00970059	0.13836	0.239241	0.174305
SWup	detailed	4.10679	-1.82835	1.05243	0.990299	2.70926	3.86086	5.41193	0.15221	1.82835	0.0524355	0.00970059	0.13836	0.239241	0.152559
LWup	baseline	11.0149	5.03646	1.17829	0.978823	5.94546	24.3142	15.8607	0.285816	5.03646	0.178285	0.0211771	0.0284582	0.00632656	0.0819986
LWup	detailed	10.4937	5.11257	1.18138	0.981401	5.81238	25.0844	15.4567	0.277205	5.11257	0.181379	0.0185986	0.0692372	0.375952	0.0763395
Qle	baseline	13.6122	-8.42609	0.678299	0.59495	5.43285	19.2834	18.6931	0.808073	8.42609	0.321702	0.40505	0.456132	0.366488	0.418081
Qle	detailed	13.6039	-8.21865	0.686643	0.586113	5.43298	19.0249	18.7557	0.816442	8.21865	0.313358	0.413887	0.519035	0.571656	0.417192
Qh	baseline	48.6085	-39.3764	0.739803	0.76021	11.8226	81.1023	66.3695	0.649998	39.3764	0.260197	0.23979	0.201017	0.633976	0.349203
Qh	detailed	46.3033	-32.3652	0.881783	0.774263	14.7993	45.9984	61.8993	0.641933	32.3652	0.118217	0.225737	0.186789	0.545535	0.327404
Qtau	baseline	0.0759291	0.0501873	1.28409	0.893853	0.0083785	0.160582	0.118231	0.594398	0.0501873	0.28409	0.106147	0.0829083	0.212721	0.0952851
Qtau	detailed	0.144403	0.13585	1.76018	0.90231	0.00289699	0.410305	0.219894	0.960096	0.13585	0.760185	0.0976903	0.0667833	0.176013	0.208852

• MAE: mean absolute error (close to 0 is better)
• MBE: mean bias error (close to 0 is better)
• NSD: ratio of model to obs standard deviation (close to 1 is better)
• R: Pearson’s correlation (close to 1 is better)
• all others: closer to 0 is better

Link to variable definitions

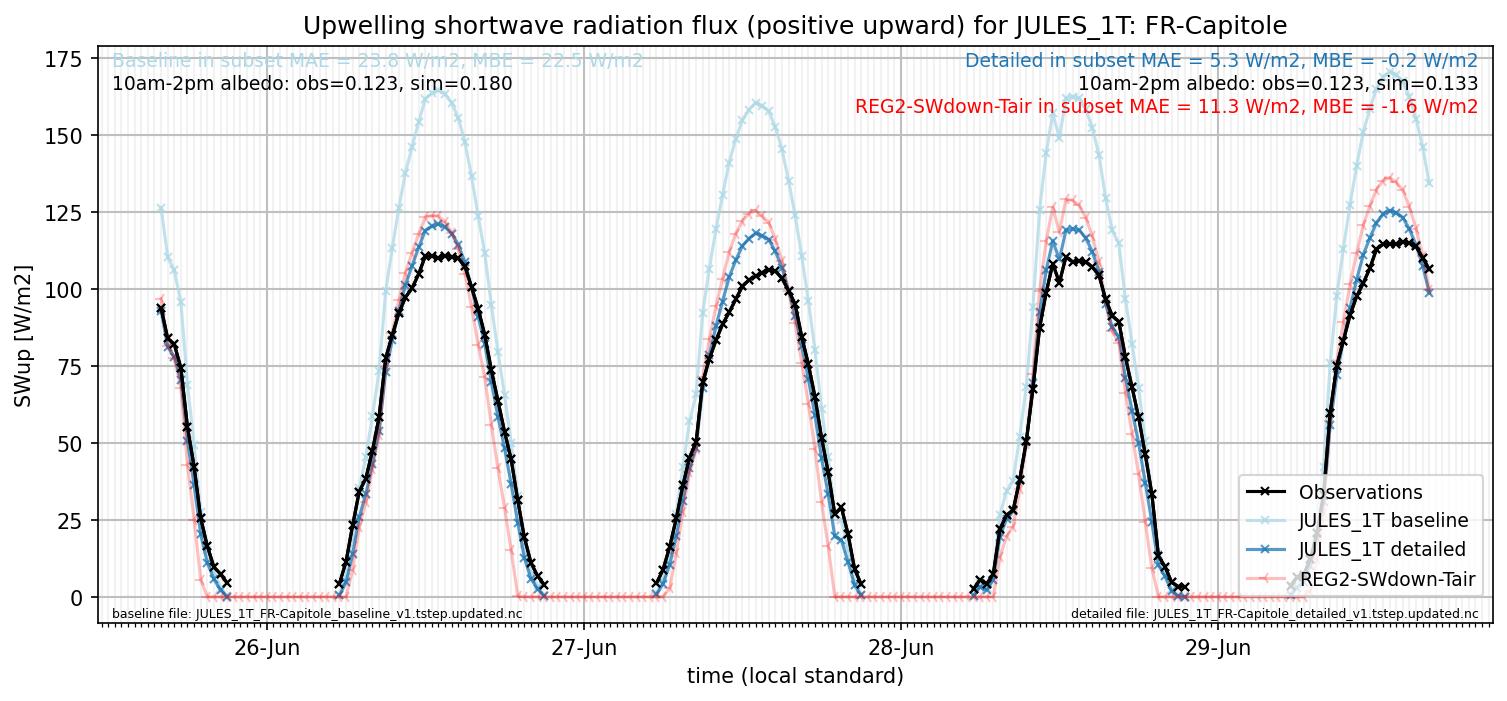

subset_SWup_v0-9

out of range: baseline

out of range: detailed

Link to variable definitions
