FR-Capitole: UCLEM

NOTE: Results presented here are highly dependent on how models are configured in this experiment and may be subject to variable output formatting errors. Results are not intended to indicate the quality of any individual model, but to help participants better understand and improve modelling approaches in different urban environments.

Submitted metadata

• Baseline
• Detailed

Error metrics

flux	experiment	MAE	MBE	nSD	R	5th	95th	RMSE	cRMSE	AMBE	1-nSD	1-R	nSkewness	nKurtosis	Overlap
SWup	baseline	6.81694	4.61542	1.20916	0.99318	2.6731	17.6887	9.42166	0.245441	4.61542	0.209165	0.00681953	0.00470229	0.0422113	0.177934
SWup	detailed	3.79106	-1.21192	1.06839	0.992296	2.7168	3.99317	5.01414	0.145389	1.21192	0.0683871	0.00770383	0.0644148	0.0370652	0.147196
LWup	baseline	14.91	10.2265	1.28697	0.988463	8.10378	40.4313	20.3684	0.33473	10.2265	0.286965	0.0115368	0.0087247	0.165196	0.123296
LWup	detailed	11.805	0.848079	1.22165	0.985746	15.9375	26.5901	15.2716	0.28975	0.848079	0.221649	0.0142539	0.043517	0.728455	0.102597
Qle	baseline	14.489	-7.44188	1.00312	0.56261	4.4853	14.7793	20.7249	0.936758	7.44188	0.00311413	0.43739	2.02288	4.45496	0.415555
Qle	detailed	16.1645	-8.41631	1.11864	0.468209	3.8588	14.0249	24.1684	1.0972	8.41631	0.11864	0.531791	3.19797	10.6512	0.44151
Qh	baseline	39.2636	-33.4319	0.729448	0.84842	0.3224	75.3268	55.7328	0.542529	33.4319	0.270552	0.15158	0.251904	0.668254	0.303396
Qh	detailed	27.5989	4.29188	1.03818	0.895635	19.4797	27.6581	38.6293	0.467072	4.29188	0.0381761	0.104365	0.254874	0.56586	0.217912
Qtau	baseline	0.0621548	0.0156033	1.09007	0.881697	0.010366	0.0489929	0.0941899	0.515779	0.0156033	0.0900669	0.118303	0.0973245	0.227785	0.0708584
Qtau	detailed	0.0692247	-0.054083	0.783469	0.872356	0.011066	0.127907	0.10456	0.496886	0.054083	0.216531	0.127644	0.094535	0.244216	0.194686

• MAE: mean absolute error (close to 0 is better)
• MBE: mean bias error (close to 0 is better)
• NSD: ratio of model to obs standard deviation (close to 1 is better)
• R: Pearson’s correlation (close to 1 is better)
• all others: closer to 0 is better

Link to variable definitions

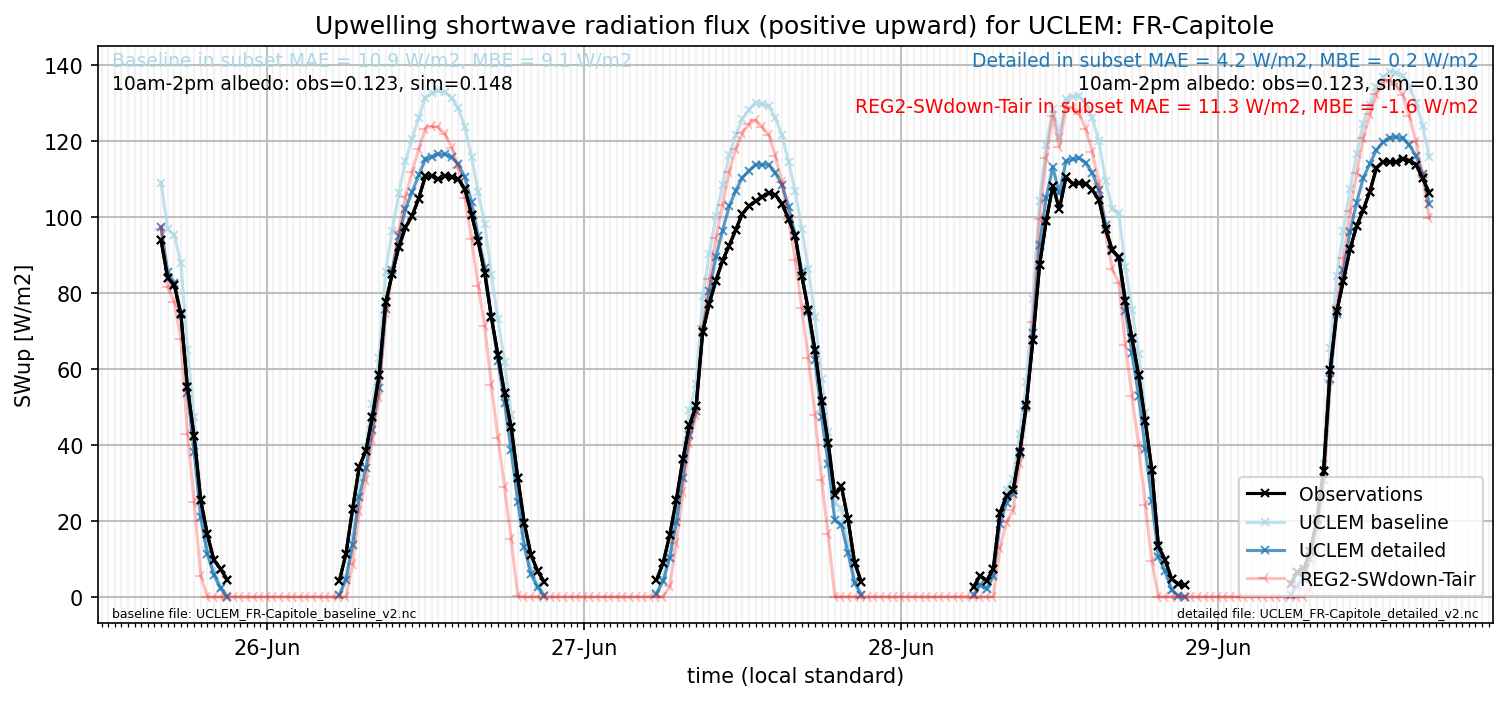

subset_SWup_v0-9

out of range: baseline

out of range: detailed

• UCLEM Qle max value of 928.3569 is greater than expected 700.0 [W/m2]
