Urban-PLUMBER

A multi-site model evaluation project for urban areas

Phase 2 Phase 1 Download project protocol
Mathew Lipson (UNSW), Sue Grimmond (Reading), Martin Best (Met Office),
with observational and modelling participants.

GR-HECKOR: CLMU5VEG

NOTE: Results presented here are highly dependent on how models are configured in this experiment and may be subject to variable output formatting errors. Results are not intended to indicate the quality of any individual model, but to help participants better understand and improve modelling approaches in different urban environments.

Submitted metadata

Error metrics

flux experiment MAE MBE nSD R 5th 95th RMSE cRMSE AMBE 1-nSD 1-R nSkewness nKurtosis Overlap
SWup baseline 11.6571 -11.0085 0.882767 0.985094 2.75308 35.8626 16.4935 0.200153 11.0085 0.117234 0.0149063 0.854865 0.259234 0.163273
SWup detailed 6.81315 -4.92237 1.0275 0.993016 2.74419 1.59484 9.00665 0.122917 4.92237 0.0274947 0.00698427 0.187072 0.0670739 0.0981514
LWup baseline 20.2915 17.0815 1.45975 0.950263 2.33206 68.9357 31.1616 0.597143 17.0815 0.459749 0.0497369 1.1165 0.934336 0.102662
LWup detailed 26.2361 18.2419 1.63042 0.933479 3.22052 85.7395 38.7695 0.783802 18.2419 0.630419 0.0665206 1.19389 0.885902 0.133206
Qle baseline 26.4818 -18.1338 0.769803 0.150153 3.54785 56.1949 45.1312 1.1668 18.1338 0.230197 0.849847 2.53528 6.74303 0.575991
Qle detailed 26.6298 -18.2634 0.797604 0.148388 3.6057 60.6981 45.7085 1.18299 18.2634 0.202396 0.851612 2.50948 6.29886 0.578402
Qh baseline 46.8377 17.5124 1.49405 0.944523 20.2103 142.955 69.9989 0.640198 17.5124 0.49405 0.0554766 0.0485355 0.615356 0.369021
Qh detailed 44.1475 13.1981 1.41509 0.936054 14.6795 115.681 64.2907 0.594371 13.1981 0.415088 0.0639463 0.0641364 0.747287 0.382315
Qtau baseline 0.245279 -0.244117 0.434118 0.905119 0.0177406 0.693336 0.364937 0.634508 0.244117 0.565882 0.0948806 0.117288 0.306363 0.286332
Qtau detailed 0.34717 -0.347145 0.171915 0.862465 0.0194848 1.00466 0.504467 0.856162 0.347145 0.828085 0.137535 0.0921544 0.300507 0.359353

Link to variable definitions

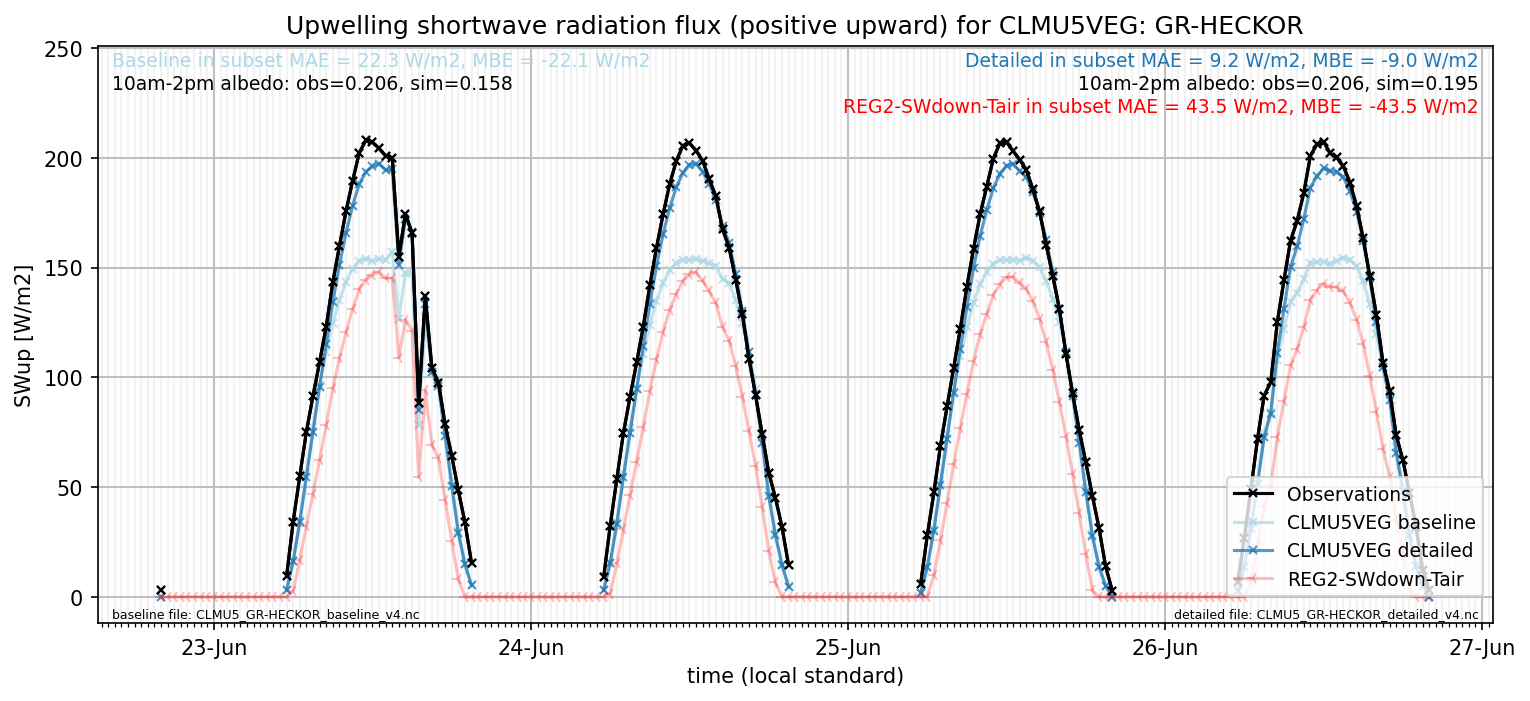

subset_SWup_v0-9


out of range: baseline

out of range: detailed

Link to variable definitions
