GR-HECKOR: JULES_2T

NOTE: Results presented here are highly dependent on how models are configured in this experiment and may be subject to variable output formatting errors. Results are not intended to indicate the quality of any individual model, but to help participants better understand and improve modelling approaches in different urban environments.

Submitted metadata

• Baseline
• Detailed

Error metrics

flux	experiment	MAE	MBE	nSD	R	5th	95th	RMSE	cRMSE	AMBE	1-nSD	1-R	nSkewness	nKurtosis	Overlap
SWup	baseline	11.8172	-11.7698	0.944805	0.993175	2.89113	16.6312	14.0911	0.126264	11.7698	0.0551956	0.00682469	0.210954	0.0617629	0.101777
SWup	detailed	6.4221	-3.27392	1.0507	0.993175	2.72946	2.7981	8.62542	0.130045	3.27392	0.0506974	0.00682469	0.210954	0.0617629	0.101367
LWup	baseline	28.0304	27.4542	1.54872	0.956226	6.06631	82.773	39.8197	0.660816	27.4542	0.548715	0.0437736	0.893293	0.651611	0.120048
LWup	detailed	25.2975	23.8761	1.51869	0.950748	5.36431	76.1313	36.9806	0.647018	23.8761	0.518683	0.0492524	0.965278	0.707739	0.108635
Qle	baseline	20.7015	-13.5293	0.460186	0.342839	4.65842	57.1105	36.1593	0.946695	13.5293	0.539814	0.657161	1.40186	3.71398	0.316012
Qle	detailed	20.6324	-13.3182	0.456658	0.333545	4.95557	57.3029	36.2141	0.950739	13.3182	0.543342	0.666455	1.51356	4.09943	0.344101
Qh	baseline	25.3031	-0.389886	1.03944	0.934739	0.663792	18.9177	39.2179	0.370439	0.389886	0.0394414	0.0652609	0.0235779	0.0580255	0.0893543
Qh	detailed	29.1848	-0.157005	1.15034	0.935926	13.2868	43.3905	43.6509	0.412329	0.157005	0.15034	0.0640739	0.0162101	0.285887	0.173802
Qtau	baseline	0.189869	-0.185036	0.561488	0.927626	0.0170412	0.542667	0.290247	0.523036	0.185036	0.438513	0.0723735	0.0504231	0.127619	0.182617
Qtau	detailed	0.116112	-0.0765038	0.827002	0.93191	0.0129349	0.236439	0.178632	0.377558	0.0765038	0.172999	0.0680904	0.0810442	0.198295	0.125299

• MAE: mean absolute error (close to 0 is better)
• MBE: mean bias error (close to 0 is better)
• NSD: ratio of model to obs standard deviation (close to 1 is better)
• R: Pearson’s correlation (close to 1 is better)
• all others: closer to 0 is better

Link to variable definitions

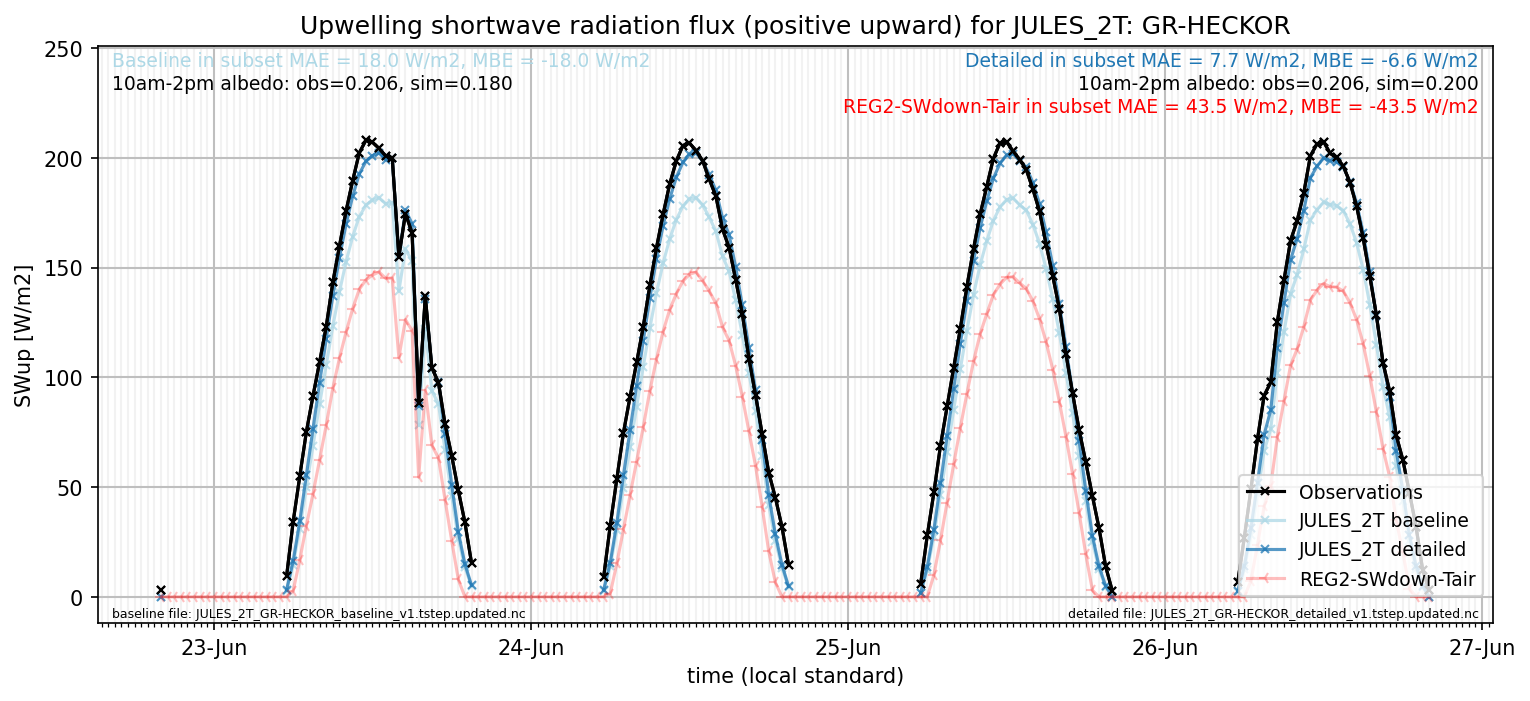

subset_SWup_v0-9

out of range: baseline

out of range: detailed

Link to variable definitions
