GR-HECKOR: JULES_MORUS

NOTE: Results presented here are highly dependent on how models are configured in this experiment and may be subject to variable output formatting errors. Results are not intended to indicate the quality of any individual model, but to help participants better understand and improve modelling approaches in different urban environments.

Submitted metadata

• Baseline
• Detailed

Error metrics

flux	experiment	MAE	MBE	nSD	R	5th	95th	RMSE	cRMSE	AMBE	1-nSD	1-R	nSkewness	nKurtosis	Overlap
SWup	baseline	31.9799	-31.979	0.646008	0.990678	3.10571	74.7675	39.241	0.370614	31.979	0.353993	0.00932194	0.622351	0.210059	0.143246
SWup	detailed	21.4802	-21.4749	0.793012	0.994059	2.9126	44.8409	25.6511	0.22862	21.4749	0.206989	0.00594123	0.138674	0.114043	0.102632
LWup	baseline	13.0796	12.8897	1.12911	0.988062	8.41623	25.248	15.7878	0.208874	12.8897	0.129113	0.0119377	0.266988	0.178127	0.108774
LWup	detailed	9.23859	6.47905	1.06436	0.983823	4.54117	11.7639	10.7457	0.196414	6.47905	0.0643569	0.0161771	0.0768379	0.00891108	0.087933
Qle	baseline	21.1647	-13.8326	0.497174	0.319354	4.38662	56.8885	36.847	0.964175	13.8326	0.502826	0.680646	1.58379	4.08821	0.326302
Qle	detailed	20.954	-13.4331	0.498345	0.315059	4.60514	56.8708	36.7792	0.966608	13.4331	0.501655	0.684941	1.64731	4.27539	0.296282
Qh	baseline	37.5233	26.4563	1.31894	0.943338	2.41511	117.985	59.2877	0.501188	26.4563	0.318939	0.056662	0.0629124	0.136515	0.158632
Qh	detailed	41.0875	28.9334	1.43936	0.948425	5.24911	145.722	68.2967	0.584386	28.9334	0.439361	0.0515748	0.0099795	0.400752	0.165782
Qtau	baseline	0.198547	-0.193432	0.526926	0.919306	0.011436	0.568873	0.306379	0.555732	0.193432	0.473075	0.080694	0.0722276	0.205136	0.197517
Qtau	detailed	0.302183	-0.302096	0.280952	0.930461	0.0178671	0.881008	0.439217	0.745724	0.302096	0.719048	0.069539	0.0194783	0.0743131	0.342301

• MAE: mean absolute error (close to 0 is better)
• MBE: mean bias error (close to 0 is better)
• NSD: ratio of model to obs standard deviation (close to 1 is better)
• R: Pearson’s correlation (close to 1 is better)
• all others: closer to 0 is better

Link to variable definitions

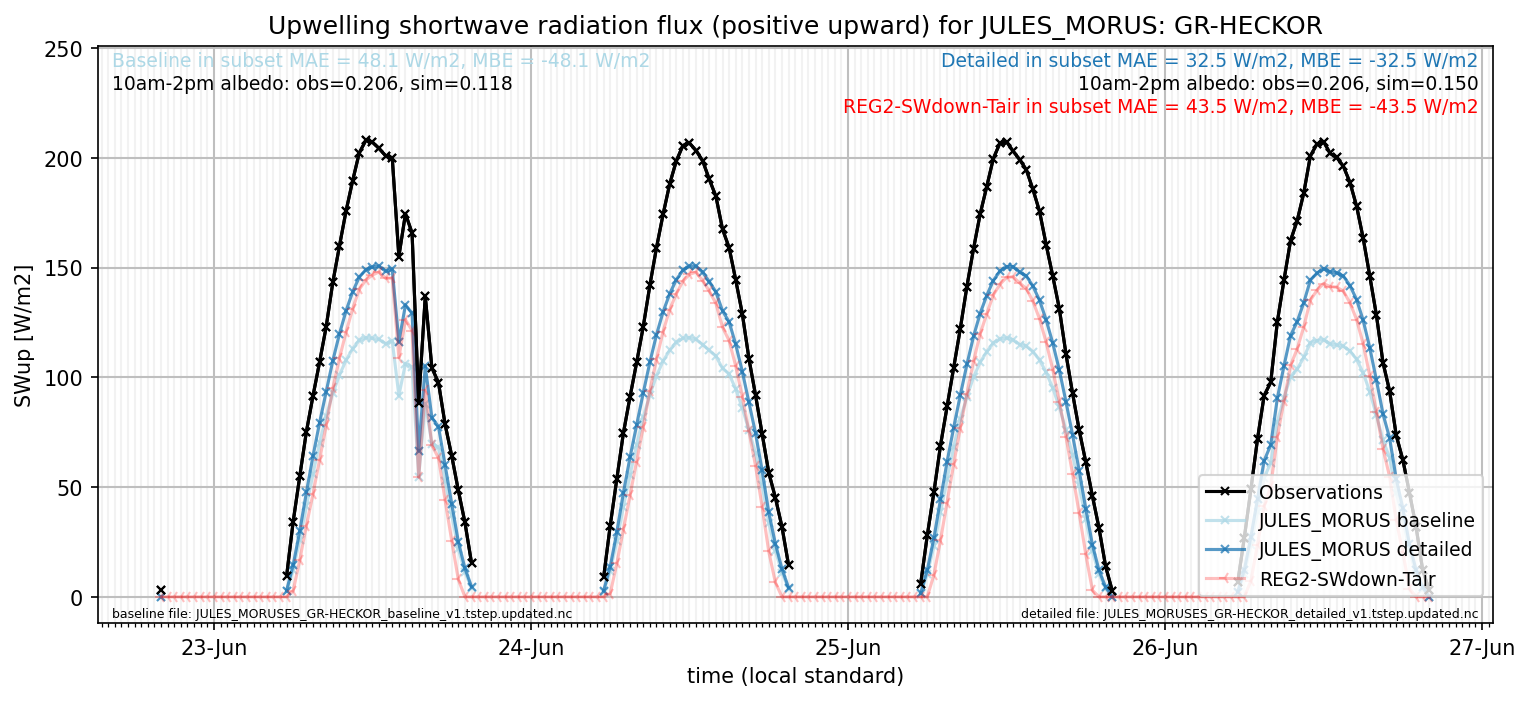

subset_SWup_v0-9

out of range: baseline

• JULES_MORUS Qh max value of 629.6711 is greater than expected 600.0 [W/m2]

out of range: detailed

Link to variable definitions
