Urban-PLUMBER

A multi-site model evaluation project for urban areas

Phase 2 Phase 1 Download project protocol

Mathew Lipson (UNSW), Sue Grimmond (Reading), Martin Best (Met Office),
with observational and modelling participants.

GR-HECKOR: Lodz-SUEB

NOTE: Results presented here are highly dependent on how models are configured in this experiment and may be subject to variable output formatting errors. Results are not intended to indicate the quality of any individual model, but to help participants better understand and improve modelling approaches in different urban environments.

Submitted metadata

Error metrics

flux	experiment	MAE	MBE	nSD	R	5th	95th	RMSE	cRMSE	AMBE	1-nSD	1-R	nSkewness	nKurtosis	Overlap
SWup	baseline	24.3007	-24.2993	0.788639	0.993175	3.12954	45.2847	28.2702	0.235453	24.2993	0.211362	0.00682469	0.210954	0.0617628	0.107622
SWup	detailed	6.41843	-3.20814	1.05152	0.993175	2.72824	2.9486	8.62143	0.13041	3.20814	0.0515173	0.00682469	0.210954	0.0617628	0.100468
LWup	baseline	26.7673	25.8094	1.60245	0.957031	2.45541	90.3416	40.2474	0.70757	25.8094	0.602444	0.0429693	1.03506	0.835556	0.0996101
LWup	detailed	27.4834	27.3634	1.51616	0.962469	7.63431	83.496	38.3806	0.616625	27.3634	0.516156	0.0375308	0.993379	0.819807	0.126922
Qle	baseline	22.0342	-6.78468	0.920883	0.309027	3.46753	28.8442	40.6258	1.13087	6.78468	0.0791175	0.690973	2.09545	7.68658	0.40492
Qle	detailed	22.2742	-6.47678	0.933448	0.29835	3.53813	29.4693	41.1202	1.14645	6.47678	0.0665524	0.70165	1.97091	6.91286	0.396864
Qh	baseline	21.8412	1.65782	1.00754	0.946011	9.74328	12.1219	34.9656	0.329922	1.65782	0.00754489	0.0539885	0.0299287	0.537493	0.136064
Qh	detailed	22.3672	5.35602	0.962335	0.944821	12.8785	2.49549	35.1392	0.328055	5.35602	0.037664	0.0551791	0.0653712	0.638296	0.128049
Qtau	baseline	0.263403	-0.26258	0.351893	0.915441	0.018419	0.78011	0.395726	0.692498	0.26258	0.648107	0.084559	0.125802	0.287356	0.289329
Qtau	detailed	0.141545	-0.113273	0.68553	0.931098	0.00106995	0.379802	0.219482	0.439728	0.113273	0.314471	0.0689024	0.0626706	0.155599	0.138424

MAE: mean absolute error (close to 0 is better)
MBE: mean bias error (close to 0 is better)
NSD: ratio of model to obs standard deviation (close to 1 is better)
R: Pearson’s correlation (close to 1 is better)
all others: closer to 0 is better

Link to variable definitions

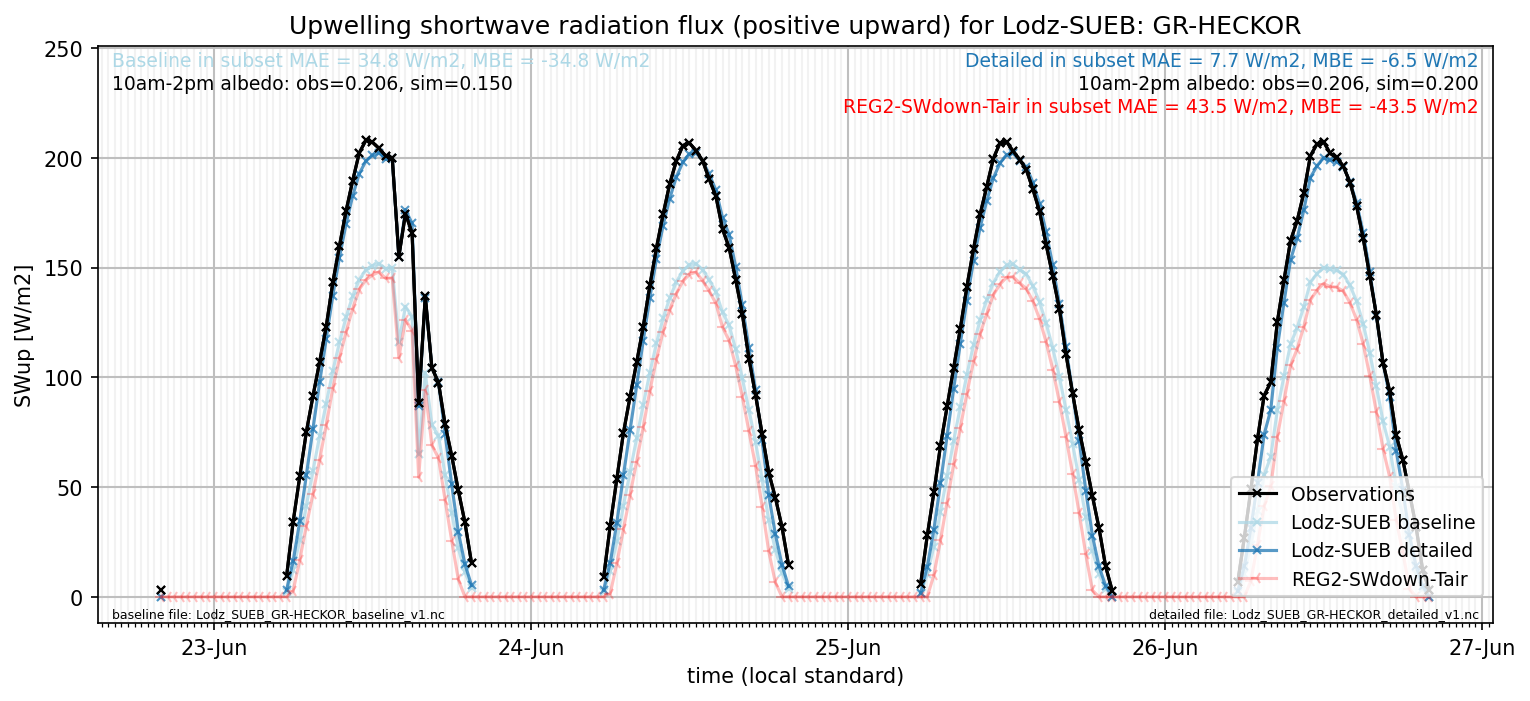

subset_SWup_v0-9

out of range: baseline

Lodz-SUEB Qle max value of 831.1957 is greater than expected 700.0 [W/m2]

out of range: detailed

Lodz-SUEB Qle max value of 829.2733 is greater than expected 700.0 [W/m2]
