GR-HECKOR: Manabe_2T

NOTE: Results presented here are highly dependent on how models are configured in this experiment and may be subject to variable output formatting errors. Results are not intended to indicate the quality of any individual model, but to help participants better understand and improve modelling approaches in different urban environments.

Submitted metadata

• Baseline
• Detailed

Error metrics

flux	experiment	MAE	MBE	nSD	R	5th	95th	RMSE	cRMSE	AMBE	1-nSD	1-R	nSkewness	nKurtosis	Overlap
SWup	baseline	12.7468	-12.7139	0.933038	0.993175	2.90909	18.7902	15.0493	0.131222	12.7139	0.0669623	0.00682469	0.210954	0.0617628	0.102309
SWup	detailed	6.56291	-4.21798	1.03893	0.993175	2.74743	0.639163	8.76896	0.125285	4.21798	0.0389308	0.00682469	0.210954	0.0617628	0.0974409
LWup	baseline	31.9503	31.6609	1.6236	0.957837	6.30869	93.672	44.7665	0.72511	31.6609	0.623595	0.0421626	0.906295	0.67913	0.126608
LWup	detailed	28.1908	27.4749	1.58723	0.951753	5.22019	85.6264	41.2743	0.705693	27.4749	0.587232	0.0482469	0.986649	0.747336	0.108956
Qle	baseline	25.4671	-21.0957	0.387562	0.138332	3.32146	69.319	41.876	1.02126	21.0957	0.612438	0.861668	2.3003	5.99888	0.59625
Qle	detailed	25.5715	-21.1607	0.390614	0.134621	3.31421	68.7303	41.9751	1.02343	21.1607	0.609386	0.865379	2.30171	6.04264	0.592382
Qh	baseline	25.7936	2.80688	1.05558	0.93331	0.202716	25.5397	40.2539	0.379318	2.80688	0.0555786	0.0666902	0.0176399	0.0733453	0.0846013
Qh	detailed	29.0565	3.98687	1.16947	0.935667	10.7761	51.9437	44.9898	0.423307	3.98687	0.169467	0.0643328	0.0157097	0.274585	0.14805
Qtau	baseline	0.19593	-0.191539	0.537862	0.927746	0.015597	0.569728	0.299888	0.53972	0.191539	0.462139	0.0722543	0.0475051	0.113669	0.19428
Qtau	detailed	0.125392	-0.0929347	0.781219	0.93143	0.0121404	0.288737	0.192274	0.393702	0.0929347	0.218782	0.0685701	0.0852005	0.209306	0.132952

• MAE: mean absolute error (close to 0 is better)
• MBE: mean bias error (close to 0 is better)
• NSD: ratio of model to obs standard deviation (close to 1 is better)
• R: Pearson’s correlation (close to 1 is better)
• all others: closer to 0 is better

Link to variable definitions

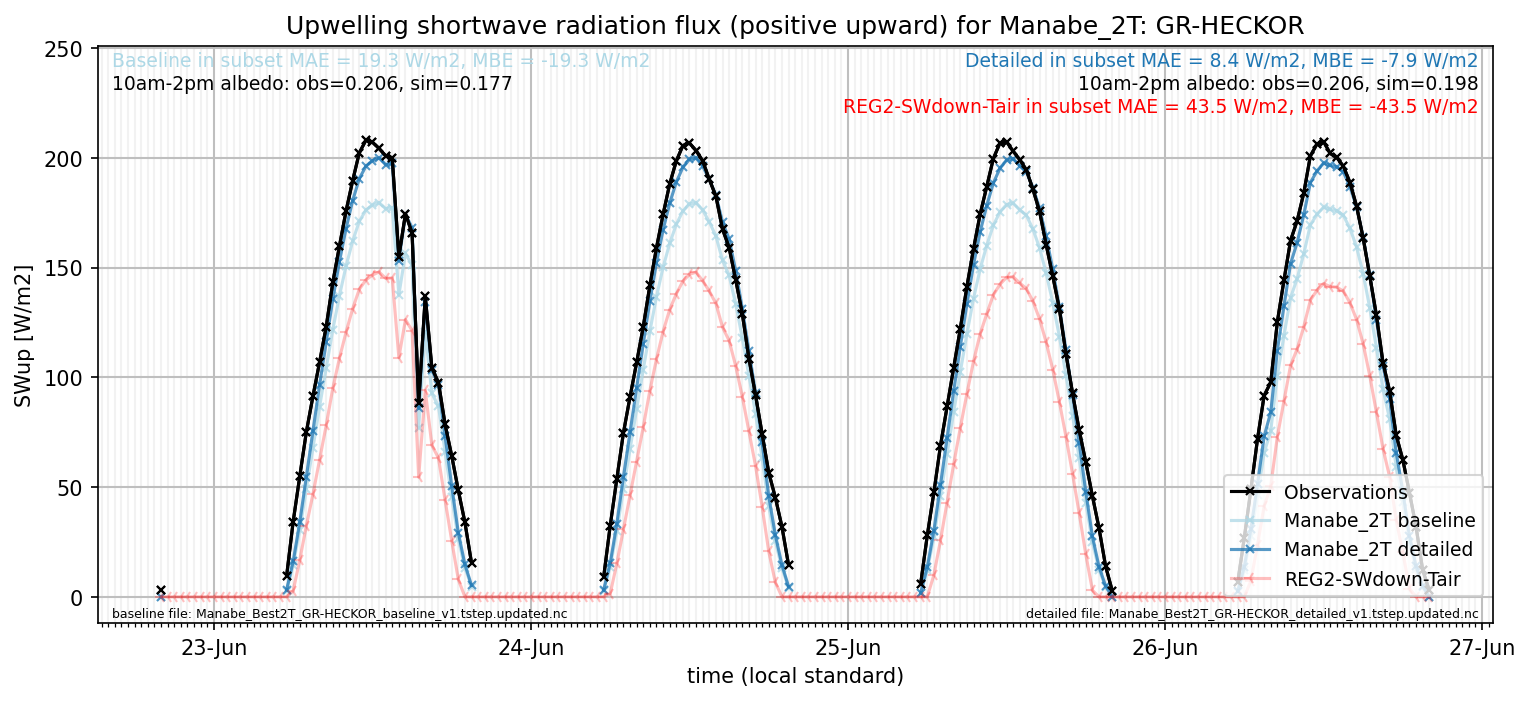

subset_SWup_v0-9

out of range: baseline

out of range: detailed

Link to variable definitions
