GR-HECKOR: TEB-CNRM

NOTE: Results presented here are highly dependent on how models are configured in this experiment and may be subject to variable output formatting errors. Results are not intended to indicate the quality of any individual model, but to help participants better understand and improve modelling approaches in different urban environments.

Submitted metadata

• Baseline
• Detailed

Error metrics

flux	experiment	MAE	MBE	nSD	R	5th	95th	RMSE	cRMSE	AMBE	1-nSD	1-R	nSkewness	nKurtosis	Overlap
SWup	baseline	38.6125	-38.6117	0.598034	0.992539	3.915	80.3475	46.183	0.412917	38.6117	0.401967	0.00746067	0.0200618	0.0829649	0.119634
SWup	detailed	22.9812	-22.9694	0.792071	0.99235	3.806	45.09	27.1297	0.235272	22.9694	0.20793	0.00764992	0.0132988	0.0888168	0.11255
LWup	baseline	34.1492	24.0369	1.85758	0.918222	7.23214	113.386	50.5719	1.01944	24.0369	0.857575	0.0817779	1.26935	0.891115	0.150204
LWup	detailed	25.7406	25.6934	1.39994	0.98231	8.04542	69.2295	32.5454	0.457691	25.6934	0.399934	0.0176904	0.701102	0.598587	0.158583
Qle	baseline	27.9555	-19.3386	0.842022	0.112542	2.60178	61.8558	47.7521	1.23267	19.3386	0.157978	0.887458	2.54729	6.66474	0.670389
Qle	detailed	24.9695	-16.0703	0.77181	0.171871	3.13274	49.2196	43.9011	1.15342	16.0703	0.22819	0.828129	2.48638	6.88278	0.499136
Qh	baseline	57.2106	53.885	1.44013	0.932908	26.2983	166.629	85.0889	0.622056	53.885	0.440128	0.067092	0.0380841	0.642263	0.332132
Qh	detailed	29.7809	22.6264	1.10812	0.950126	18.8219	59.7706	43.3784	0.349604	22.6264	0.108123	0.0498737	0.00266056	0.34525	0.232311
Qtau	baseline	0.206366	-0.198431	0.491645	0.927935	0.00713829	0.608723	0.315532	0.573835	0.198431	0.508356	0.0720651	0.0109189	0.0114818	0.217887
Qtau	detailed	0.124279	-0.0858417	0.744477	0.928154	0.000610587	0.295112	0.197117	0.415052	0.0858417	0.255524	0.0718464	0.0421104	0.12059	0.117097

• MAE: mean absolute error (close to 0 is better)
• MBE: mean bias error (close to 0 is better)
• NSD: ratio of model to obs standard deviation (close to 1 is better)
• R: Pearson’s correlation (close to 1 is better)
• all others: closer to 0 is better

Link to variable definitions

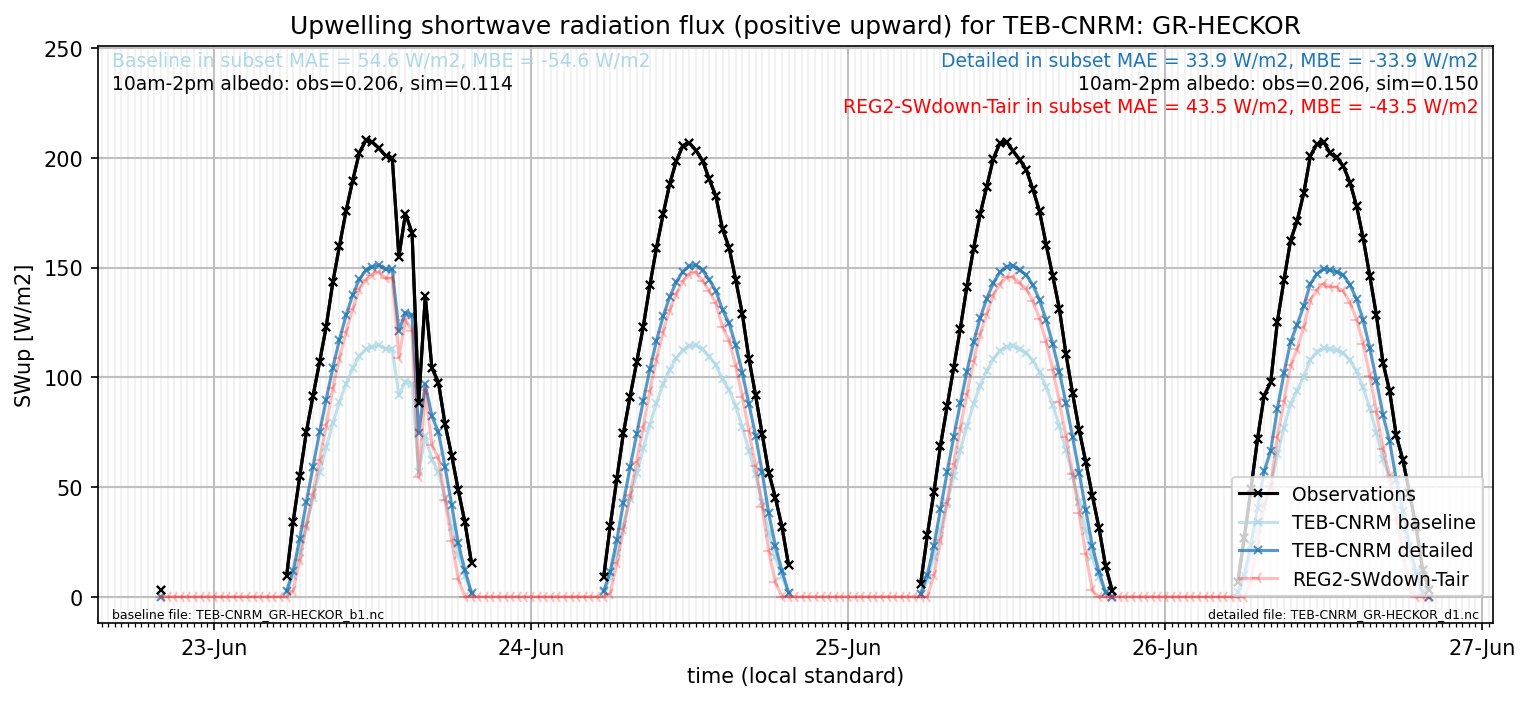

subset_SWup_v0-9

out of range: baseline

out of range: detailed
