GR-HECKOR: TEB-SPARTCS

NOTE: Results presented here are highly dependent on how models are configured in this experiment and may be subject to variable output formatting errors. Results are not intended to indicate the quality of any individual model, but to help participants better understand and improve modelling approaches in different urban environments.

Submitted metadata

• Baseline
• Detailed

Error metrics

flux	experiment	MAE	MBE	nSD	R	5th	95th	RMSE	cRMSE	AMBE	1-nSD	1-R	nSkewness	nKurtosis	Overlap
SWup	baseline	38.9319	-38.9312	0.598765	0.992398	3.90643	80.2022	46.4339	0.412423	38.9312	0.401235	0.00760172	0.0924022	0.0748497	0.115644
SWup	detailed	23.323	-23.3124	0.791696	0.992315	3.78213	44.9239	27.4349	0.23571	23.3124	0.208304	0.00768542	0.0762672	0.0802367	0.11549
LWup	baseline	35.0225	25.7375	1.88504	0.918263	6.48965	117.696	52.3602	1.04473	25.7375	0.885036	0.0817369	1.27733	0.886971	0.147347
LWup	detailed	27.4165	27.387	1.41946	0.981288	8.6826	72.6309	34.4444	0.478613	27.387	0.419459	0.0187119	0.706331	0.594709	0.168551
Qle	baseline	27.9941	-19.3404	0.84531	0.111836	2.60264	62.5092	47.8315	1.2351	19.3404	0.15469	0.888164	2.53489	6.58697	0.670665
Qle	detailed	24.9786	-16.0854	0.772813	0.173991	2.79667	49.0181	43.8771	1.15253	16.0854	0.227187	0.826009	2.46193	6.76973	0.495893
Qh	baseline	55.8885	52.1845	1.43394	0.931842	25.3509	163.431	83.8102	0.619497	52.1845	0.433944	0.0681584	0.0401896	0.65549	0.322593
Qh	detailed	28.7676	21.0925	1.10595	0.94997	17.7126	58.32	42.5543	0.349125	21.0925	0.105953	0.0500302	0.00297792	0.350617	0.216996
Qtau	baseline	0.206601	-0.198869	0.491589	0.928077	0.00716965	0.608722	0.315781	0.573755	0.198869	0.508412	0.0719226	0.0119265	0.0125926	0.218162
Qtau	detailed	0.124387	-0.0869986	0.74491	0.928345	0.000369713	0.295345	0.197419	0.414517	0.0869986	0.255091	0.0716551	0.0413921	0.12093	0.114539

• MAE: mean absolute error (close to 0 is better)
• MBE: mean bias error (close to 0 is better)
• NSD: ratio of model to obs standard deviation (close to 1 is better)
• R: Pearson’s correlation (close to 1 is better)
• all others: closer to 0 is better

Link to variable definitions

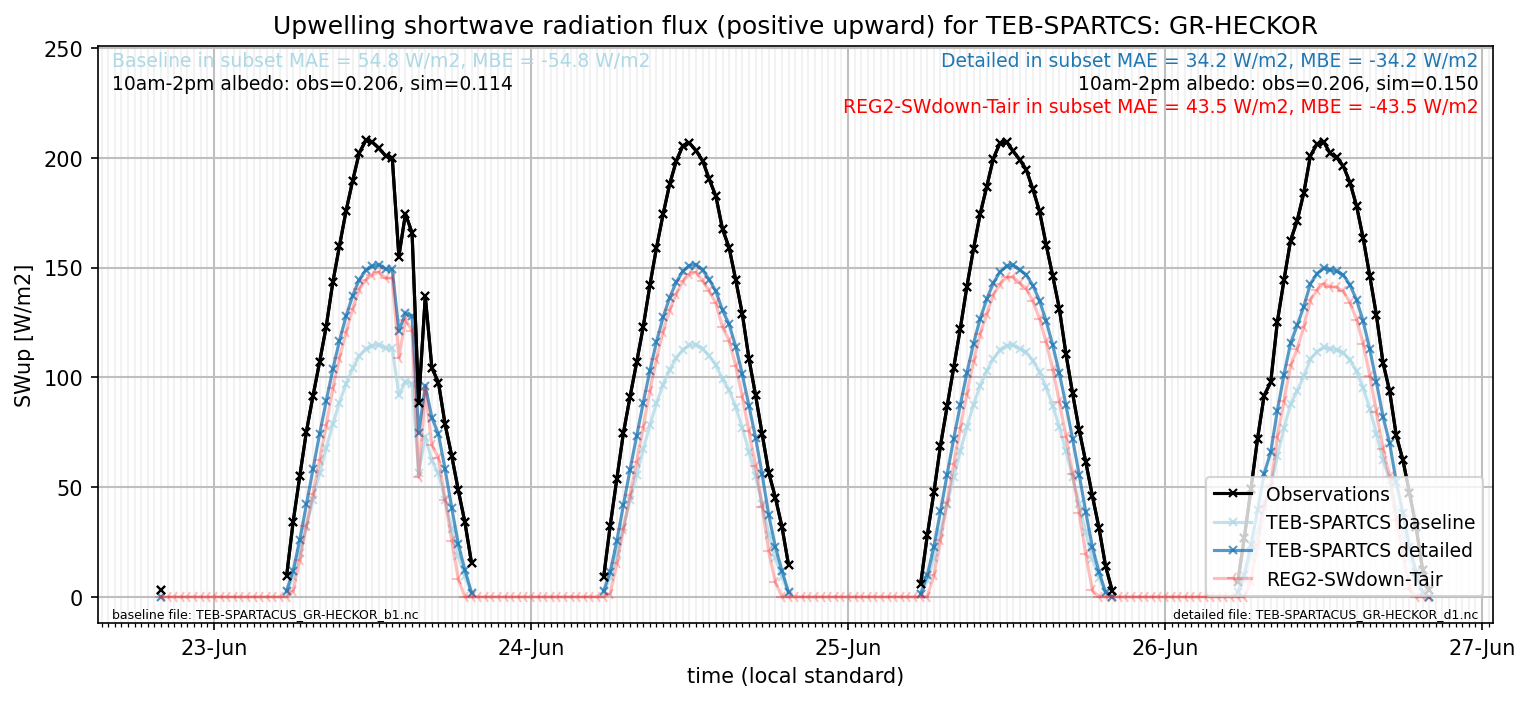

subset_SWup_v0-9

out of range: baseline

out of range: detailed

Link to variable definitions
