GR-HECKOR: UCLEM

NOTE: Results presented here are highly dependent on how models are configured in this experiment and may be subject to variable output formatting errors. Results are not intended to indicate the quality of any individual model, but to help participants better understand and improve modelling approaches in different urban environments.

Submitted metadata

• Baseline
• Detailed

Error metrics

flux	experiment	MAE	MBE	nSD	R	5th	95th	RMSE	cRMSE	AMBE	1-nSD	1-R	nSkewness	nKurtosis	Overlap
SWup	baseline	22.4051	-22.4035	0.788385	0.990766	3.15094	48.6493	26.9325	0.243599	22.4035	0.211615	0.00923395	0.300168	0.172568	0.13027
SWup	detailed	8.73732	-8.25634	0.974775	0.992791	2.84854	12.6225	11.1124	0.121206	8.25634	0.0252252	0.00720913	0.0121459	0.110615	0.107141
LWup	baseline	38.5812	38.4028	1.65513	0.963928	7.62121	103.593	50.198	0.740676	38.4028	0.655124	0.0360723	0.826032	0.727597	0.174649
LWup	detailed	29.3348	25.683	1.67111	0.946807	1.32369	93.3251	43.0843	0.792572	25.683	0.671107	0.0531926	0.999944	0.77069	0.114337
Qle	baseline	26.3781	-17.8906	0.928144	0.130281	3.30603	59.6695	48.4972	1.27264	17.8906	0.0718557	0.869719	6.30203	42.41	0.548418
Qle	detailed	24.8418	-15.4997	1.02462	0.179198	2.82313	61.5203	48.4892	1.29716	15.4997	0.0246196	0.820802	6.07403	36.4426	0.400167
Qh	baseline	26.1254	5.29566	0.958956	0.930041	18.1694	10.3324	39.3776	0.368591	5.29566	0.0410437	0.0699588	0.101987	0.332635	0.211636
Qh	detailed	30.0862	15.8489	1.06213	0.928364	22.6928	43.9342	44.7195	0.395012	15.8489	0.062134	0.071636	0.0714273	0.0213034	0.295307
Qtau	baseline	0.207871	-0.198058	0.510167	0.86074	0.012804	0.617923	0.330231	0.618085	0.198058	0.489834	0.13926	0.94384	8.08663	0.225611
Qtau	detailed	0.314773	-0.312818	0.303785	0.784736	0.021204	0.901423	0.458644	0.78454	0.312818	0.696215	0.215264	3.97843	54.1675	0.417368

• MAE: mean absolute error (close to 0 is better)
• MBE: mean bias error (close to 0 is better)
• NSD: ratio of model to obs standard deviation (close to 1 is better)
• R: Pearson’s correlation (close to 1 is better)
• all others: closer to 0 is better

Link to variable definitions

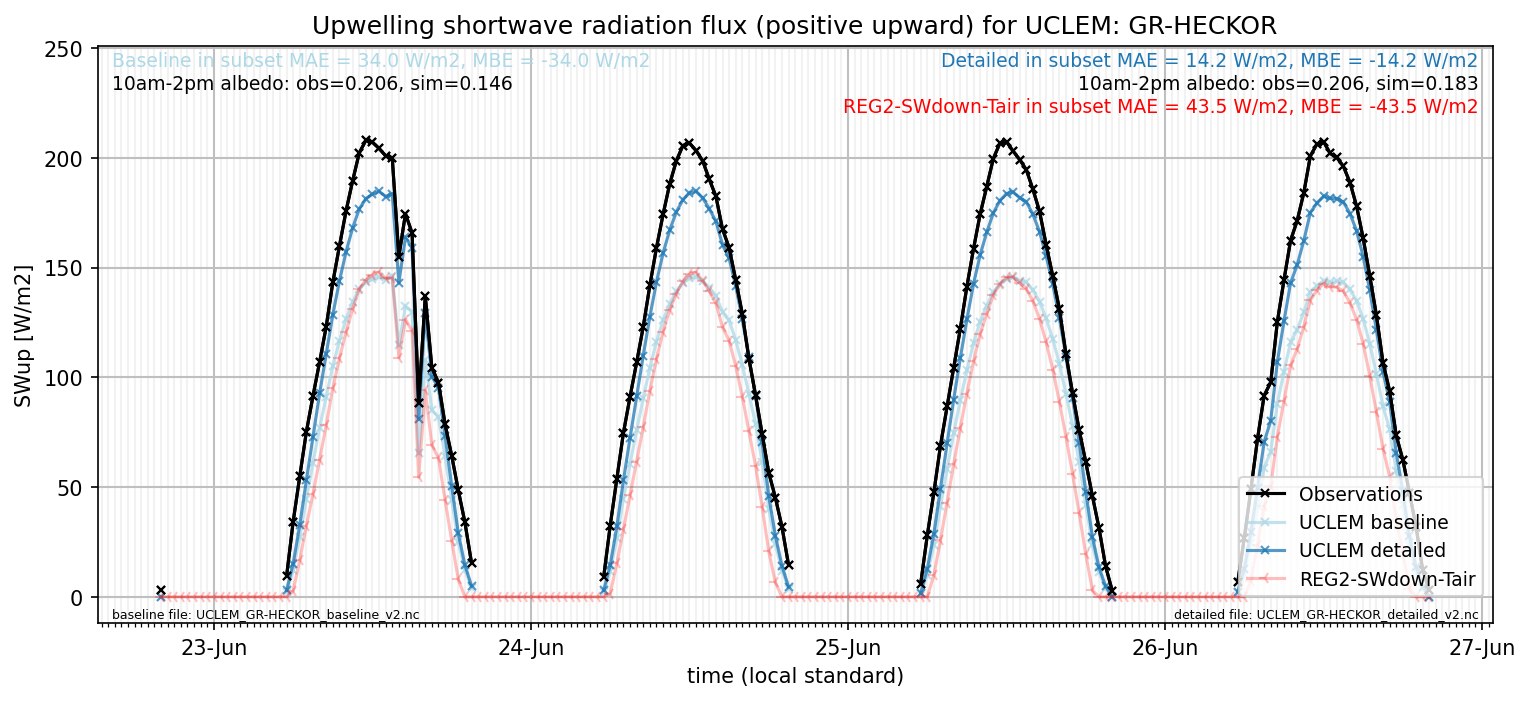

subset_SWup_v0-9

out of range: baseline

• UCLEM Qstor min value of -1061.3257 is less than expected -800.0 [W/m2]
• UCLEM Qle max value of 1570.7566 is greater than expected 700.0 [W/m2]

out of range: detailed

• UCLEM Qstor min value of -900.1288 is less than expected -800.0 [W/m2]
• UCLEM Qle max value of 1577.7567 is greater than expected 700.0 [W/m2]
