JP-Yoyogi: NOAH-SLUCM

NOTE: Results presented here are highly dependent on how models are configured in this experiment and may be subject to variable output formatting errors. Results are not intended to indicate the quality of any individual model, but to help participants better understand and improve modelling approaches in different urban environments.

Submitted metadata

• Baseline
• Detailed

Error metrics

flux	experiment	MAE	MBE	nSD	R	5th	95th	RMSE	cRMSE	AMBE	1-nSD	1-R	nSkewness	nKurtosis	Overlap
SWup	baseline	11.6078	9.93319	1.32462	0.966551	0.965878	35.5604	17.7196	0.440443	9.93319	0.324614	0.0334495	0.202505	0.290086	0.143866
SWup	detailed	8.42021	-7.21023	0.877666	0.9671	1.44116	11.0547	11.5195	0.269659	7.21023	0.122335	0.0328999	0.198473	0.281451	0.106563
LWup	baseline	28.9916	28.2997	1.44557	0.950125	1.06598	87.5254	40.9907	0.585432	28.2997	0.445572	0.0498746	2.11491	1.66006	0.129792
LWup	detailed	33.7073	33.6871	1.39477	0.963165	10.0262	85.363	42.4066	0.508525	33.6871	0.394772	0.0368347	1.85685	1.40965	0.160906
Qle	baseline	27.9489	-26.7372	0.240218	0.614754	0.373481	84.6064	42.7111	0.873129	26.7372	0.759782	0.385246	1.64512	14.6877	0.586161
Qle	detailed	27.9442	-26.7311	0.23849	0.61923	0.373481	84.5784	42.693	0.87265	26.7311	0.76151	0.38077	1.36224	11.2272	0.583986
Qh	baseline	22.3974	-1.48645	1.13086	0.894708	1.02591	23.3253	33.402	0.505237	1.48645	0.130858	0.105292	0.104178	0.0864849	0.162746
Qh	detailed	20.8298	1.00124	1.05553	0.894954	3.28309	13.9674	31.3333	0.474175	1.00124	0.0555252	0.105046	0.0776207	0.0715587	0.0674335

• MAE: mean absolute error (close to 0 is better)
• MBE: mean bias error (close to 0 is better)
• NSD: ratio of model to obs standard deviation (close to 1 is better)
• R: Pearson’s correlation (close to 1 is better)
• all others: closer to 0 is better

Link to variable definitions

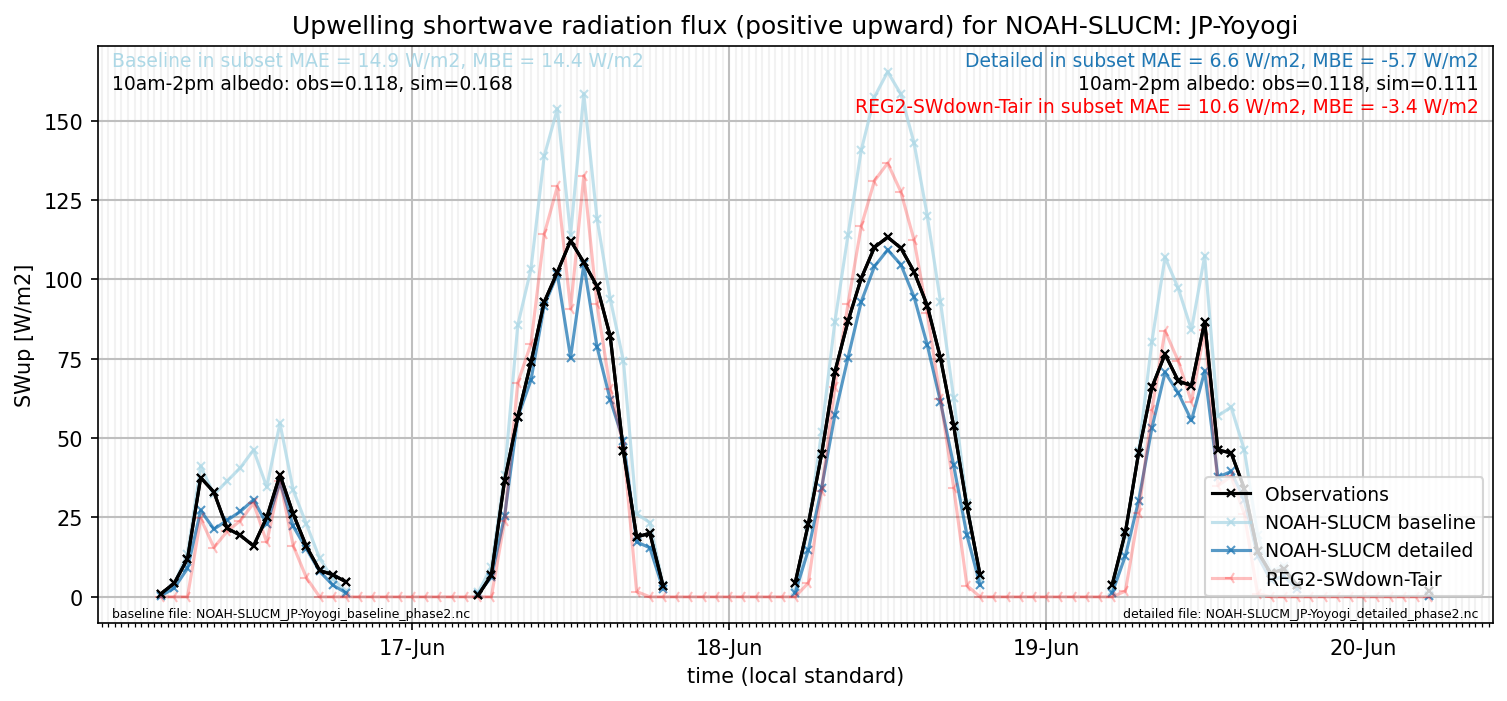

subset_SWup_v0-9

out of range: baseline

• NOAH-SLUCM TairSurf max value of 855.3789 is greater than expected 333.0 [K]

out of range: detailed

• NOAH-SLUCM TairSurf max value of 998.3037 is greater than expected 333.0 [K]
