JP-Yoyogi: TEB-READING

NOTE: Results presented here are highly dependent on how models are configured in this experiment and may be subject to variable output formatting errors. Results are not intended to indicate the quality of any individual model, but to help participants better understand and improve modelling approaches in different urban environments.

Submitted metadata

• Baseline
• Detailed

Error metrics

flux	experiment	MAE	MBE	nSD	R	5th	95th	RMSE	cRMSE	AMBE	1-nSD	1-R	nSkewness	nKurtosis	Overlap
SWup	baseline	9.35066	-7.17963	0.882055	0.934507	1.06385	15.9366	13.9724	0.359789	7.17963	0.117946	0.0654931	0.839475	4.52199	0.104268
SWup	detailed	15.3231	-14.291	0.728859	0.924676	1.39022	28.928	20.1917	0.428158	14.291	0.271142	0.0753244	1.21594	5.72249	0.196766
LWup	baseline	18.5973	15.7344	1.42503	0.942894	4.90672	74.8712	33.5956	0.586006	15.7344	0.425026	0.0571058	2.78475	2.21952	0.075352
LWup	detailed	19.2345	17.7702	1.40165	0.949115	1.94023	73.579	33.1012	0.551332	17.7702	0.401648	0.0508847	2.59366	2.02487	0.0764321
Qle	baseline	25.632	-16.1898	0.79198	0.43042	0.449808	32.901	40.4712	0.972349	16.1898	0.20802	0.56958	0.52814	1.16783	0.402469
Qle	detailed	23.5998	-13.769	0.762656	0.461362	0.449808	31.7779	38.3029	0.936976	13.769	0.237344	0.538638	0.39845	0.88377	0.294344
Qh	baseline	37.1496	31.3237	1.38789	0.890957	17.3277	91.7528	54.3856	0.673155	31.3237	0.387888	0.109043	0.129751	0.240441	0.177055
Qh	detailed	28.3117	18.3513	1.2691	0.890207	11.7756	61.9753	43.2233	0.592528	18.3513	0.269097	0.109793	0.172816	0.387095	0.106471

• MAE: mean absolute error (close to 0 is better)
• MBE: mean bias error (close to 0 is better)
• NSD: ratio of model to obs standard deviation (close to 1 is better)
• R: Pearson’s correlation (close to 1 is better)
• all others: closer to 0 is better

Link to variable definitions

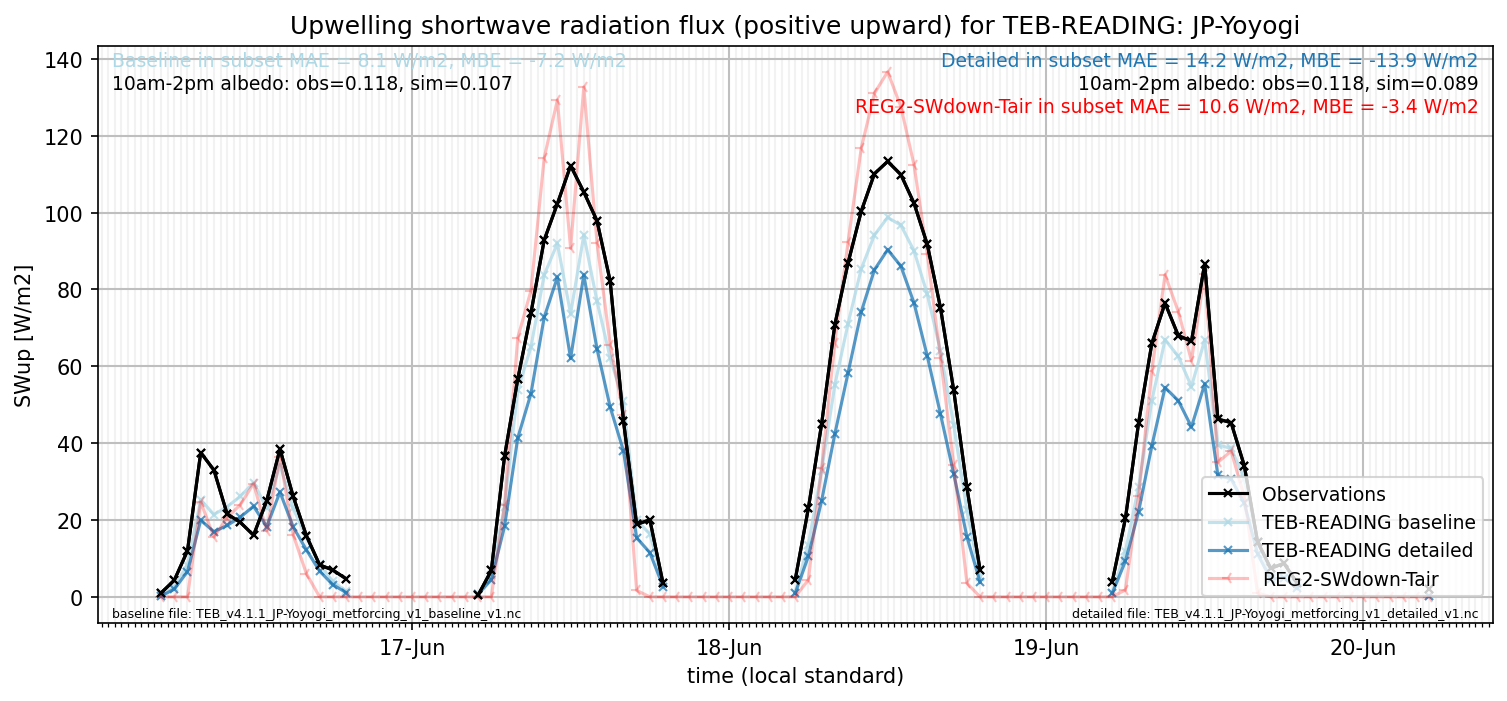

subset_SWup_v0-9

out of range: baseline

• TEB-READING Qanth min value of -7.0370 is less than expected 0.0 [W/m2]

out of range: detailed

• TEB-READING Qanth min value of -21.8175 is less than expected 0.0 [W/m2]

Link to variable definitions
