JP-Yoyogi: TERRA_4.11

NOTE: Results presented here are highly dependent on how models are configured in this experiment and may be subject to variable output formatting errors. Results are not intended to indicate the quality of any individual model, but to help participants better understand and improve modelling approaches in different urban environments.

Submitted metadata

• Baseline
• Detailed

Error metrics

flux	experiment	MAE	MBE	nSD	R	5th	95th	RMSE	cRMSE	AMBE	1-nSD	1-R	nSkewness	nKurtosis	Overlap
SWup	baseline	15.0484	-14.8114	0.680736	0.965569	1.6549	31.4828	19.6098	0.385754	14.8114	0.319265	0.0344307	0.212154	0.309667	0.144758
SWup	detailed	5.69008	-0.414431	1.05657	0.965593	1.25628	7.87068	9.18834	0.275515	0.414431	0.0565735	0.0344073	0.216126	0.322375	0.0972411
LWup	baseline	39.6603	-39.6554	1.16411	0.903359	61.8915	37.4283	47.1058	0.501929	39.6554	0.164106	0.0966415	1.49739	0.384862	0.255084
LWup	detailed	12.9767	12.2649	1.23427	0.983111	0.104753	42.4276	19.9552	0.310762	12.2649	0.234269	0.0168889	1.46428	1.08588	0.0711579
Qle	baseline	21.8912	-17.2522	0.600394	0.560961	0.351438	48.4938	36.0161	0.828781	17.2522	0.399606	0.439039	0.277733	0.437096	0.368222
Qle	detailed	21.2171	-17.5795	0.558457	0.586504	0.311905	51.0429	35.564	0.810432	17.5795	0.441543	0.413496	0.145683	0.117913	0.368951
Qh	baseline	163.404	163.32	1.74672	0.860292	110.192	262.1	176.733	1.02257	163.32	0.746713	0.139708	0.174703	0.536603	0.755354
Qh	detailed	40.6123	36.2764	1.06868	0.887932	32.7493	44.8787	48.7996	0.494215	36.2764	0.0686823	0.112068	0.0256545	0.113596	0.36373

• MAE: mean absolute error (close to 0 is better)
• MBE: mean bias error (close to 0 is better)
• NSD: ratio of model to obs standard deviation (close to 1 is better)
• R: Pearson’s correlation (close to 1 is better)
• all others: closer to 0 is better

Link to variable definitions

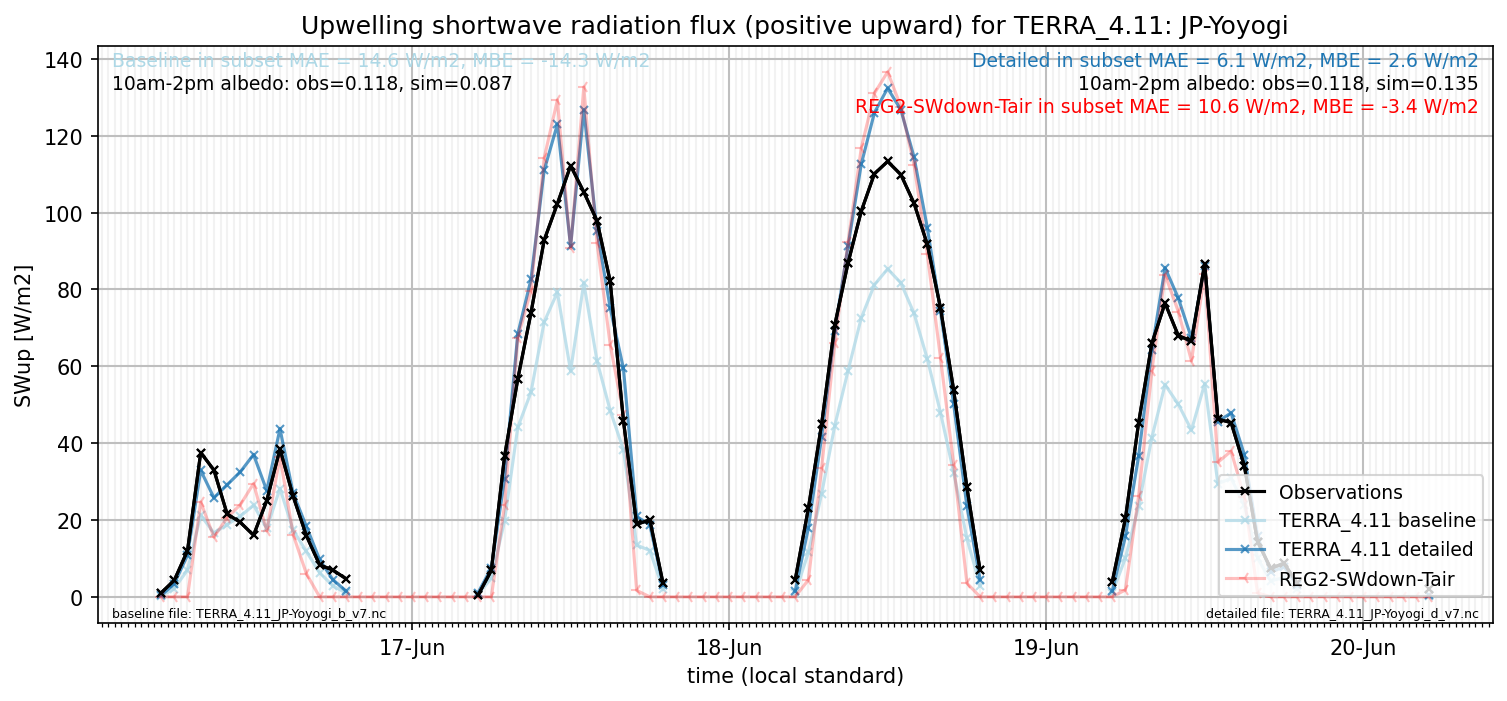

subset_SWup_v0-9

out of range: baseline

• TERRA_4.11 Qh max value of 693.7244 is greater than expected 600.0 [W/m2]

out of range: detailed
