KR-Ochang: TEB-READING

NOTE: Results presented here are highly dependent on how models are configured in this experiment and may be subject to variable output formatting errors. Results are not intended to indicate the quality of any individual model, but to help participants better understand and improve modelling approaches in different urban environments.

Submitted metadata

• Baseline
• Detailed

Error metrics

flux	experiment	MAE	MBE	nSD	R	5th	95th	RMSE	cRMSE	AMBE	1-nSD	1-R	nSkewness	nKurtosis	Overlap
SWup	baseline	13.7268	-12.6656	0.721415	0.933103	1.61258	33.3195	23.7514	0.41729	12.6656	0.278586	0.0668975	0.449428	1.0086	0.128207
SWup	detailed	8.47596	-5.61065	0.874079	0.940348	1.48314	9.23478	17.607	0.346608	5.61065	0.125922	0.0596519	0.42532	1.08407	0.0709252
LWup	baseline	19.3282	19.2617	1.17239	0.985783	9.33924	52.4189	24.9957	0.25111	19.2617	0.172391	0.0142174	4.63567	0.347951	0.0957788
LWup	detailed	18.0806	17.9512	1.15722	0.987447	8.79438	47.1452	23.2087	0.231883	17.9512	0.157214	0.012553	3.95483	0.271234	0.0964225
Qle	baseline	29.5435	4.93527	1.13813	0.660367	2.8503	36.4458	49.4941	0.890043	4.93527	0.138133	0.339633	0.220798	0.666891	0.267782
Qle	detailed	33.321	13.1288	1.2867	0.66638	3.07599	58.6454	55.2495	0.969917	13.1288	0.286703	0.33362	0.332221	0.822444	0.326495
Qh	baseline	39.1596	36.256	1.07324	0.903699	30.4094	46.8855	47.6391	0.460515	36.256	0.0732445	0.0963014	0.197747	0.530255	0.595363
Qh	detailed	21.9196	13.2466	0.950361	0.905502	19.0179	10.1245	31.5498	0.426707	13.2466	0.0496384	0.0944984	0.115835	0.396862	0.433344

• MAE: mean absolute error (close to 0 is better)
• MBE: mean bias error (close to 0 is better)
• NSD: ratio of model to obs standard deviation (close to 1 is better)
• R: Pearson’s correlation (close to 1 is better)
• all others: closer to 0 is better

Link to variable definitions

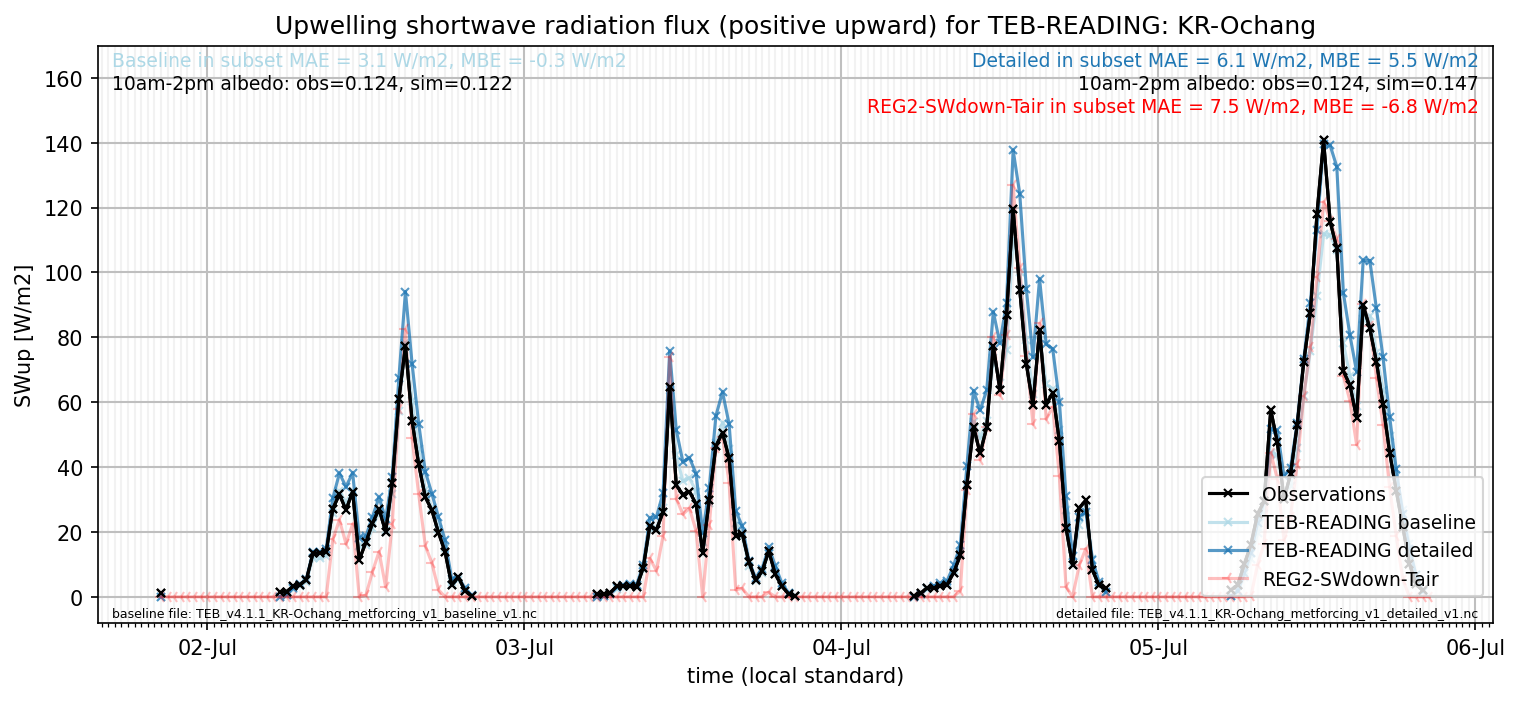

subset_SWup_v0-9

out of range: baseline

• TEB-READING Qanth min value of -5.0283 is less than expected 0.0 [W/m2]

out of range: detailed

• TEB-READING Qanth min value of -9.6024 is less than expected 0.0 [W/m2]

Link to variable definitions
