NL-Amsterdam: CLMU5

NOTE: Results presented here are highly dependent on how models are configured in this experiment and may be subject to variable output formatting errors. Results are not intended to indicate the quality of any individual model, but to help participants better understand and improve modelling approaches in different urban environments.

Submitted metadata

• Baseline
• Detailed

Error metrics

flux	experiment	MAE	MBE	nSD	R	5th	95th	RMSE	cRMSE	AMBE	1-nSD	1-R	nSkewness	nKurtosis	Overlap
SWup	baseline	3.46128	2.12401	1.03664	0.986715	0.541219	3.30182	4.73228	0.16996	2.12401	0.0366386	0.0132853	0.0357184	0.044468	0.063634
SWup	detailed	2.9994	-0.933716	0.939477	0.986022	0.407085	4.03001	4.40448	0.172996	0.933716	0.0605234	0.0139783	0.00291446	0.0641163	0.0624073
LWup	baseline	9.22365	2.09799	1.218	0.976054	5.43699	26.9287	12.878	0.325355	2.09799	0.217997	0.023946	0.389796	0.513459	0.0918136
LWup	detailed	8.16265	2.27419	1.19017	0.979989	4.37689	24.0012	11.5313	0.289477	2.27419	0.190168	0.0200108	0.337674	0.41609	0.0808097
Qle	baseline	16.7747	-1.94216	0.989404	0.658786	0.2837	3.62966	28.915	0.821772	1.94216	0.0105964	0.341214	0.245118	0.45653	0.139163
Qle	detailed	16.3086	-2.89074	0.930789	0.660328	0.213024	2.08952	28.1707	0.798195	2.89074	0.0692116	0.339672	0.254998	0.4436	0.129232
Qh	baseline	32.8635	-11.4588	1.01764	0.872133	8.90925	12.7569	48.9235	0.510447	11.4588	0.0176412	0.127867	0.685705	0.691057	0.219144
Qh	detailed	31.7229	-9.34166	0.991189	0.870279	5.95883	8.3779	48.1729	0.507183	9.34166	0.00881054	0.129721	0.67989	0.679993	0.175569
Qtau	baseline	0.330818	-0.316435	0.42167	0.732812	0.0296815	0.999655	0.553446	0.748195	0.316435	0.57833	0.267188	0.300848	0.661119	0.258402
Qtau	detailed	0.37023	-0.360375	0.352452	0.723384	0.0261584	1.12874	0.596756	0.783777	0.360375	0.647548	0.276616	0.292198	0.65352	0.314772

• MAE: mean absolute error (close to 0 is better)
• MBE: mean bias error (close to 0 is better)
• NSD: ratio of model to obs standard deviation (close to 1 is better)
• R: Pearson’s correlation (close to 1 is better)
• all others: closer to 0 is better

Link to variable definitions

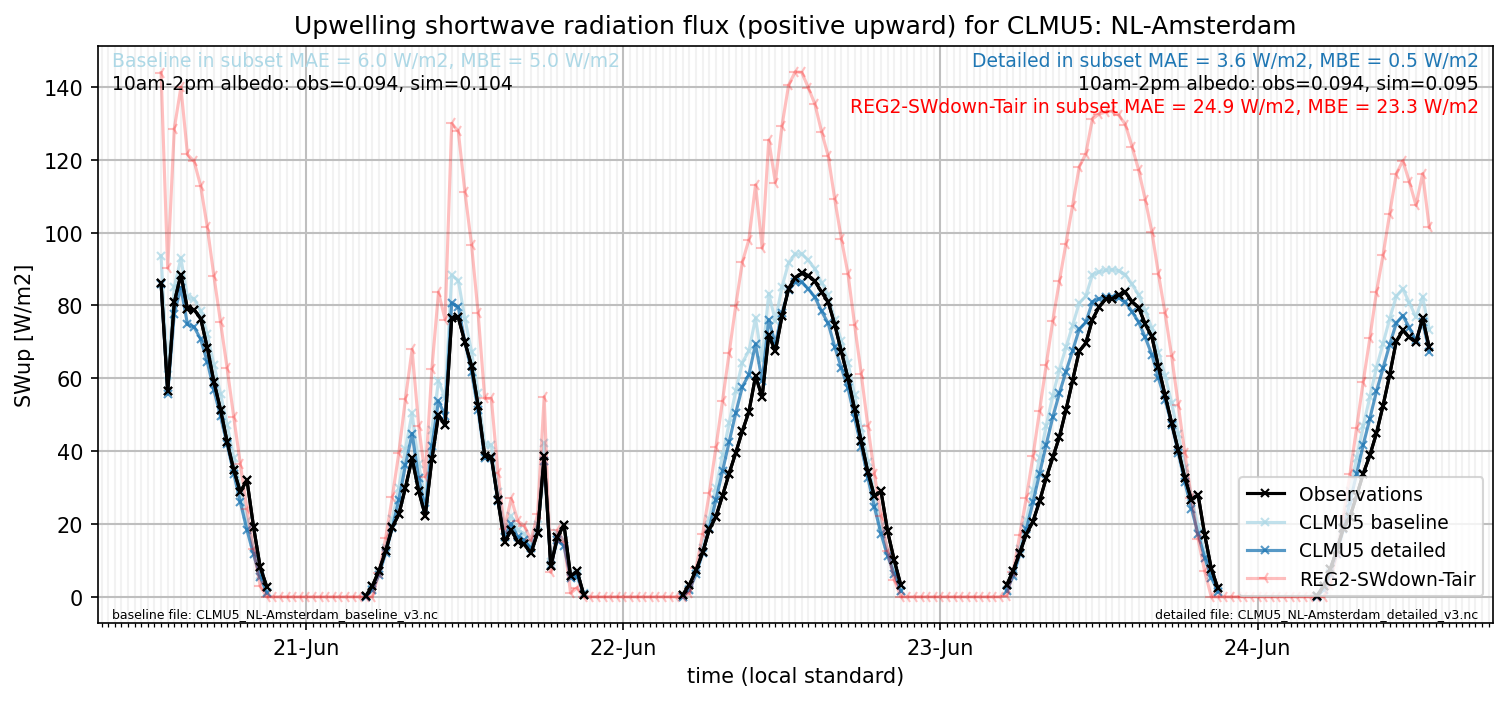

subset_SWup_v0-9

out of range: baseline

out of range: detailed
