NL-Amsterdam: JULES_2T

NOTE: Results presented here are highly dependent on how models are configured in this experiment and may be subject to variable output formatting errors. Results are not intended to indicate the quality of any individual model, but to help participants better understand and improve modelling approaches in different urban environments.

Submitted metadata

• Baseline
• Detailed

Error metrics

flux	experiment	MAE	MBE	nSD	R	5th	95th	RMSE	cRMSE	AMBE	1-nSD	1-R	nSkewness	nKurtosis	Overlap
SWup	baseline	19.1802	19.1433	1.64928	0.984603	1.22844	51.6875	25.6692	0.687284	19.1433	0.649285	0.0153973	0.0597059	0.23611	0.106184
SWup	detailed	4.39051	3.15056	1.09229	0.984606	0.567504	8.22469	6.00163	0.205297	3.15056	0.0922909	0.015394	0.0597372	0.236184	0.0696701
LWup	baseline	6.82255	3.5592	1.11544	0.984567	2.89269	12.9122	9.24685	0.218532	3.5592	0.11544	0.0154331	0.0826869	0.484684	0.075719
LWup	detailed	9.68404	5.78042	1.24111	0.981169	4.88199	28.229	13.9057	0.323847	5.78042	0.241109	0.0188309	0.170163	0.0427828	0.0937014
Qle	baseline	18.0416	-12.0921	0.615824	0.64427	2.56137	36.6486	29.4649	0.765327	12.0921	0.384177	0.35573	0.125502	0.49835	0.200522
Qle	detailed	18.1382	-11.9332	0.632343	0.634757	2.76943	36.1338	29.6373	0.772716	11.9332	0.367657	0.365243	0.21208	0.394278	0.202635
Qh	baseline	35.4748	-21.2349	0.788304	0.852526	4.45021	47.9049	53.4682	0.526616	21.2349	0.211696	0.147474	0.68351	0.615945	0.176565
Qh	detailed	31.6131	-12.5886	0.950677	0.872191	6.87833	5.39795	47.8495	0.495421	12.5886	0.0493233	0.127809	0.667579	0.684035	0.204837
Qtau	baseline	0.297602	-0.276359	0.482778	0.738149	0.0244441	0.886076	0.517708	0.721353	0.276359	0.517222	0.261851	0.283916	0.643898	0.216422
Qtau	detailed	0.289004	-0.268059	0.499137	0.753617	0.0334539	0.857481	0.504815	0.704856	0.268059	0.500862	0.246383	0.288113	0.646378	0.207442

• MAE: mean absolute error (close to 0 is better)
• MBE: mean bias error (close to 0 is better)
• NSD: ratio of model to obs standard deviation (close to 1 is better)
• R: Pearson’s correlation (close to 1 is better)
• all others: closer to 0 is better

Link to variable definitions

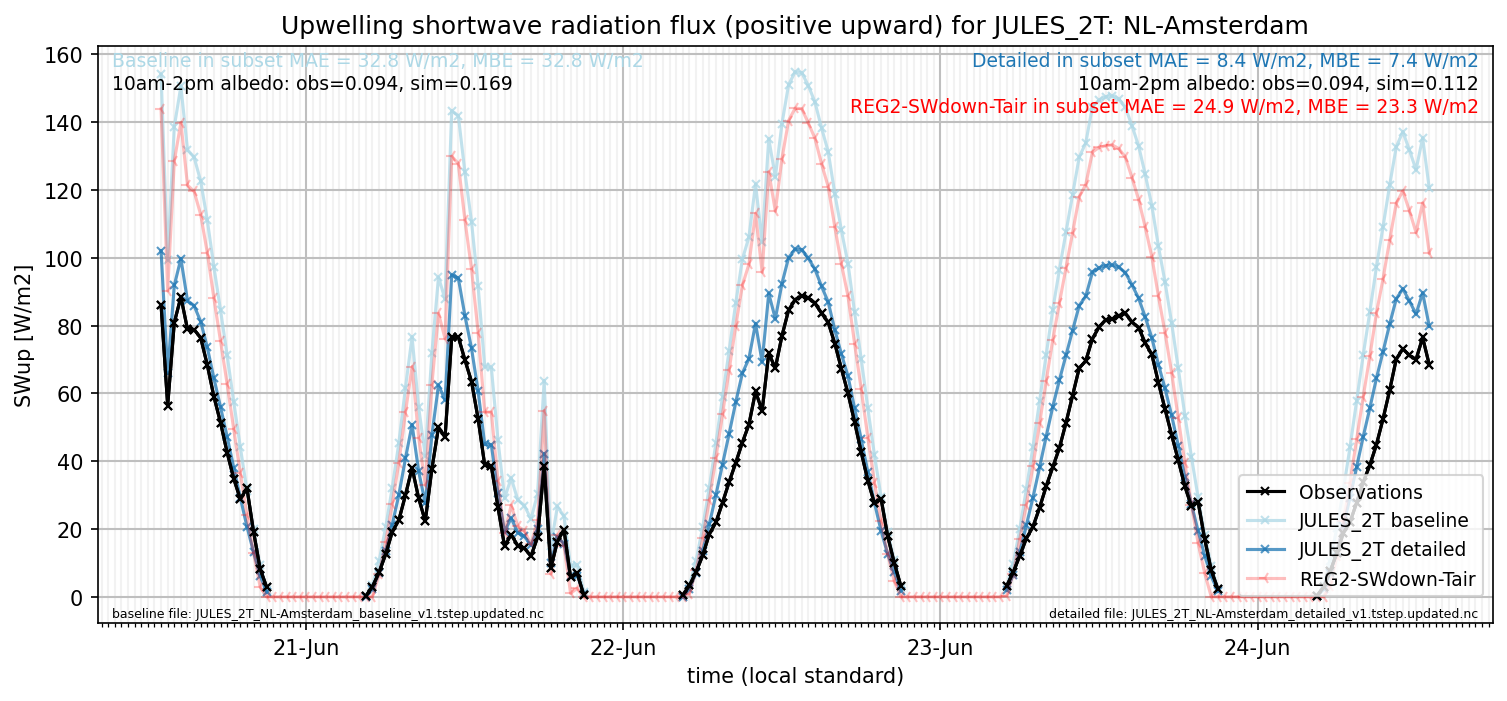

subset_SWup_v0-9

out of range: baseline

out of range: detailed
