NL-Amsterdam: Manabe_1T

NOTE: Results presented here are highly dependent on how models are configured in this experiment and may be subject to variable output formatting errors. Results are not intended to indicate the quality of any individual model, but to help participants better understand and improve modelling approaches in different urban environments.

Submitted metadata

• Baseline
• Detailed

Error metrics

flux	experiment	MAE	MBE	nSD	R	5th	95th	RMSE	cRMSE	AMBE	1-nSD	1-R	nSkewness	nKurtosis	Overlap
SWup	baseline	19.5297	19.4986	1.66149	0.984615	1.24381	52.6466	26.1294	0.699064	19.4986	0.661487	0.0153854	0.059848	0.236387	0.105258
SWup	detailed	4.63401	3.5068	1.10446	0.984625	0.582614	9.1838	6.33081	0.211834	3.5068	0.104462	0.0153746	0.0599877	0.236767	0.0709075
LWup	baseline	9.85976	6.43967	1.22729	0.975808	4.18832	26.0438	14.5198	0.333228	6.43967	0.227285	0.0241924	0.0892457	0.175755	0.0925265
LWup	detailed	11.7089	8.72565	1.28672	0.972075	3.81099	33.853	17.6387	0.392522	8.72565	0.28672	0.0279253	0.164031	0.0555155	0.105834
Qle	baseline	17.7475	-10.5227	0.690246	0.627001	0.877296	23.9493	29.3884	0.781582	10.5227	0.309754	0.372999	0.0263441	0.717616	0.231666
Qle	detailed	17.6517	-10.0302	0.689014	0.619877	0.670982	24.1858	29.4188	0.787739	10.0302	0.310987	0.380123	0.0228914	0.707651	0.220805
Qh	baseline	41.4435	-24.8699	0.769443	0.804265	7.16937	58.1252	60.7899	0.59529	24.8699	0.230557	0.195735	0.718864	0.529851	0.182025
Qh	detailed	40.246	-18.4036	0.83914	0.803101	6.82737	37.0828	58.5883	0.596932	18.4036	0.16086	0.196899	0.701363	0.552806	0.152039
Qtau	baseline	0.329597	-0.313783	0.415381	0.746058	0.0181897	1.00218	0.54958	0.743468	0.313783	0.584619	0.253942	0.258862	0.618136	0.265934
Qtau	detailed	0.326899	-0.311317	0.412952	0.75696	0.00943239	0.999167	0.545687	0.73848	0.311317	0.587047	0.24304	0.243267	0.604179	0.265741

• MAE: mean absolute error (close to 0 is better)
• MBE: mean bias error (close to 0 is better)
• NSD: ratio of model to obs standard deviation (close to 1 is better)
• R: Pearson’s correlation (close to 1 is better)
• all others: closer to 0 is better

Link to variable definitions

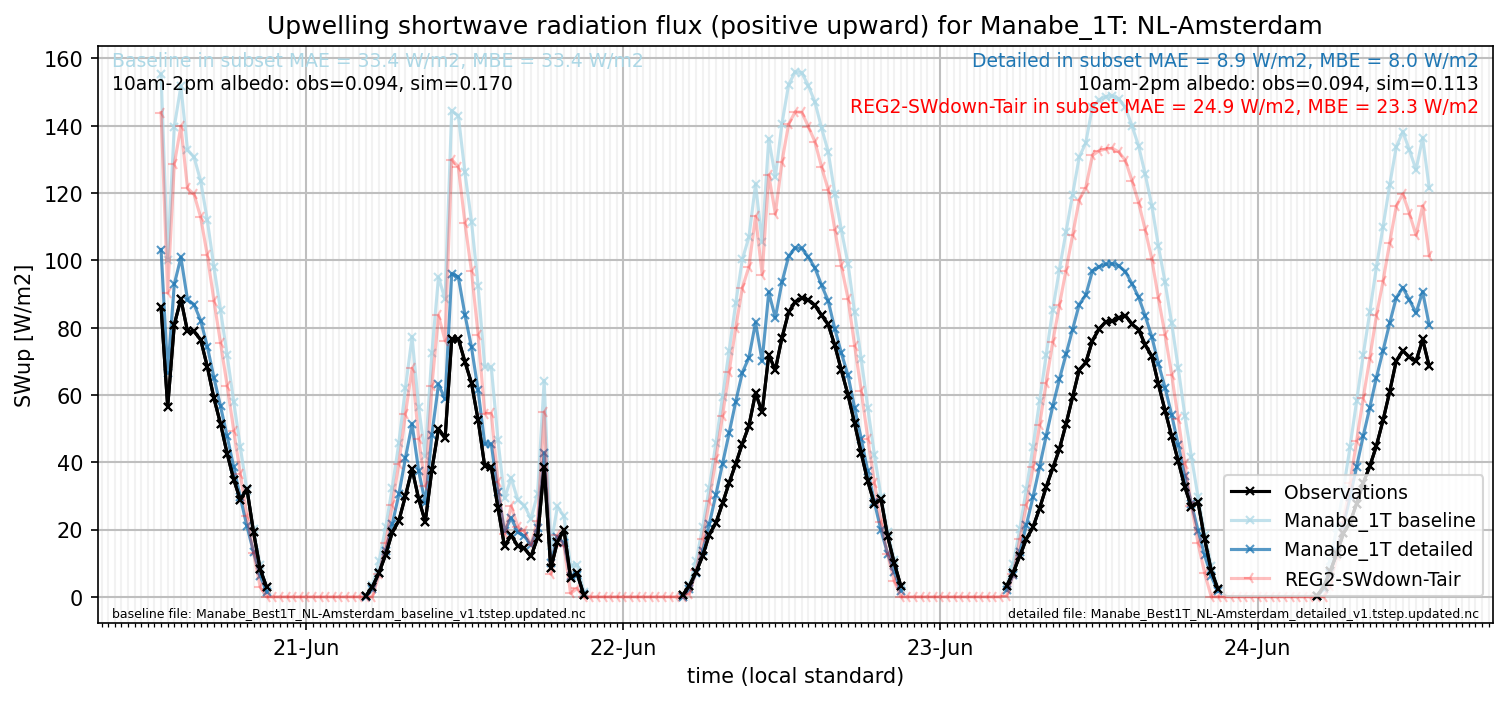

subset_SWup_v0-9

out of range: baseline

out of range: detailed

Link to variable definitions
