NL-Amsterdam: Manabe_2T

NOTE: Results presented here are highly dependent on how models are configured in this experiment and may be subject to variable output formatting errors. Results are not intended to indicate the quality of any individual model, but to help participants better understand and improve modelling approaches in different urban environments.

Submitted metadata

• Baseline
• Detailed

Error metrics

flux	experiment	MAE	MBE	nSD	R	5th	95th	RMSE	cRMSE	AMBE	1-nSD	1-R	nSkewness	nKurtosis	Overlap
SWup	baseline	19.5303	19.4994	1.66146	0.984618	1.24381	52.6466	26.1294	0.699026	19.4994	0.661457	0.015382	0.0598893	0.236489	0.10527
SWup	detailed	4.63331	3.50907	1.10439	0.984631	0.582614	9.1838	6.33055	0.21176	3.50907	0.104388	0.0153686	0.060095	0.237154	0.0707509
LWup	baseline	9.8387	6.20456	1.25753	0.982183	5.61909	28.6857	14.422	0.333367	6.20456	0.257529	0.0178173	0.146548	0.0632491	0.0976475
LWup	detailed	13.6167	8.37616	1.40064	0.972675	7.70509	45.8953	20.7776	0.486884	8.37616	0.400637	0.0273248	0.37275	0.393476	0.119826
Qle	baseline	17.847	-10.694	0.696995	0.629251	1.23098	23.7782	29.4033	0.780149	10.694	0.303005	0.370749	0.0259226	0.714181	0.24201
Qle	detailed	18.0732	-10.4929	0.715023	0.619608	1.90307	23.2426	29.6767	0.79069	10.4929	0.284978	0.380392	0.00946133	0.682898	0.237572
Qh	baseline	37.7972	-23.5204	0.799466	0.839697	8.14074	48.6485	55.9274	0.544544	23.5204	0.200534	0.160303	0.686357	0.584073	0.193901
Qh	detailed	33.3801	-14.7466	0.958518	0.866082	10.9071	8.50747	49.6133	0.508376	14.7466	0.0414819	0.133918	0.661289	0.666588	0.218981
Qtau	baseline	0.331598	-0.317978	0.419976	0.751161	0.0236538	1.00189	0.549544	0.738539	0.317978	0.580023	0.248839	0.270114	0.630867	0.264857
Qtau	detailed	0.332358	-0.320642	0.424546	0.765987	0.0325355	0.998586	0.545854	0.727905	0.320642	0.575454	0.234013	0.279802	0.639622	0.265597

• MAE: mean absolute error (close to 0 is better)
• MBE: mean bias error (close to 0 is better)
• NSD: ratio of model to obs standard deviation (close to 1 is better)
• R: Pearson’s correlation (close to 1 is better)
• all others: closer to 0 is better

Link to variable definitions

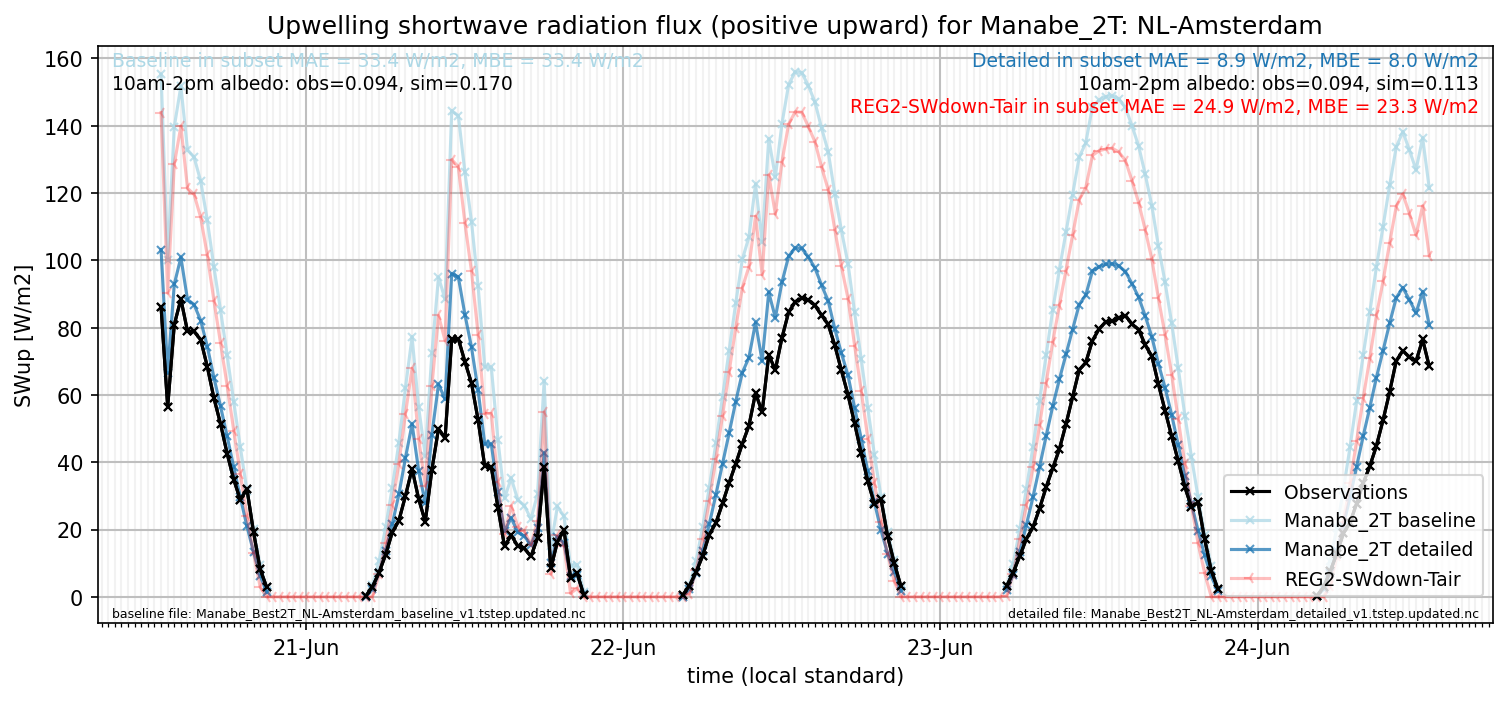

subset_SWup_v0-9

out of range: baseline

out of range: detailed

Link to variable definitions
