NL-Amsterdam: TEB-CNRM

NOTE: Results presented here are highly dependent on how models are configured in this experiment and may be subject to variable output formatting errors. Results are not intended to indicate the quality of any individual model, but to help participants better understand and improve modelling approaches in different urban environments.

Submitted metadata

• Baseline
• Detailed

Error metrics

flux	experiment	MAE	MBE	nSD	R	5th	95th	RMSE	cRMSE	AMBE	1-nSD	1-R	nSkewness	nKurtosis	Overlap
SWup	baseline	6.44945	5.88037	1.15449	0.981485	0.50654	13.4914	8.70743	0.258101	5.88037	0.154487	0.0185145	0.00664142	0.124701	0.0856968
SWup	detailed	11.8747	11.7488	1.33826	0.985871	0.780653	27.8468	15.2408	0.390176	11.7488	0.338259	0.0141294	0.0452684	0.025473	0.104723
LWup	baseline	16.9287	5.07064	1.48725	0.958805	17.9741	52.2458	23.9724	0.59996	5.07064	0.487252	0.0411954	0.367345	0.447933	0.151307
LWup	detailed	7.18595	3.84269	1.04118	0.980654	1.213	3.94172	8.87646	0.204892	3.84269	0.0411835	0.0193456	0.351238	0.864156	0.0929211
Qle	baseline	24.4854	-16.1488	0.962989	0.555883	3.94432	9.81942	36.2862	0.925597	16.1488	0.0370119	0.444117	0.911791	0.125402	0.472053
Qle	detailed	17.5184	1.27746	1.07855	0.656929	0.408749	15.6492	30.3533	0.863834	1.27746	0.0785496	0.343071	0.26619	0.496222	0.0991709
Qh	baseline	37.2001	24.0319	1.17414	0.867867	23.3778	89.0387	59.4543	0.583621	24.0319	0.174145	0.132133	0.854885	0.586	0.221482
Qh	detailed	34.4547	8.49881	0.83483	0.85183	15.5541	10.6891	49.5683	0.524094	8.49881	0.16517	0.14817	0.638854	0.58445	0.181921
Qtau	baseline	0.209416	-0.117113	0.642648	0.754512	0.0448048	0.51726	0.42066	0.665752	0.117113	0.357352	0.245488	0.2385	0.611408	0.130993
Qtau	detailed	0.253957	0.0614597	0.825668	0.71045	0.0901272	0.160644	0.437116	0.713117	0.0614597	0.174331	0.28955	0.260646	0.57291	0.153023

• MAE: mean absolute error (close to 0 is better)
• MBE: mean bias error (close to 0 is better)
• NSD: ratio of model to obs standard deviation (close to 1 is better)
• R: Pearson’s correlation (close to 1 is better)
• all others: closer to 0 is better

Link to variable definitions

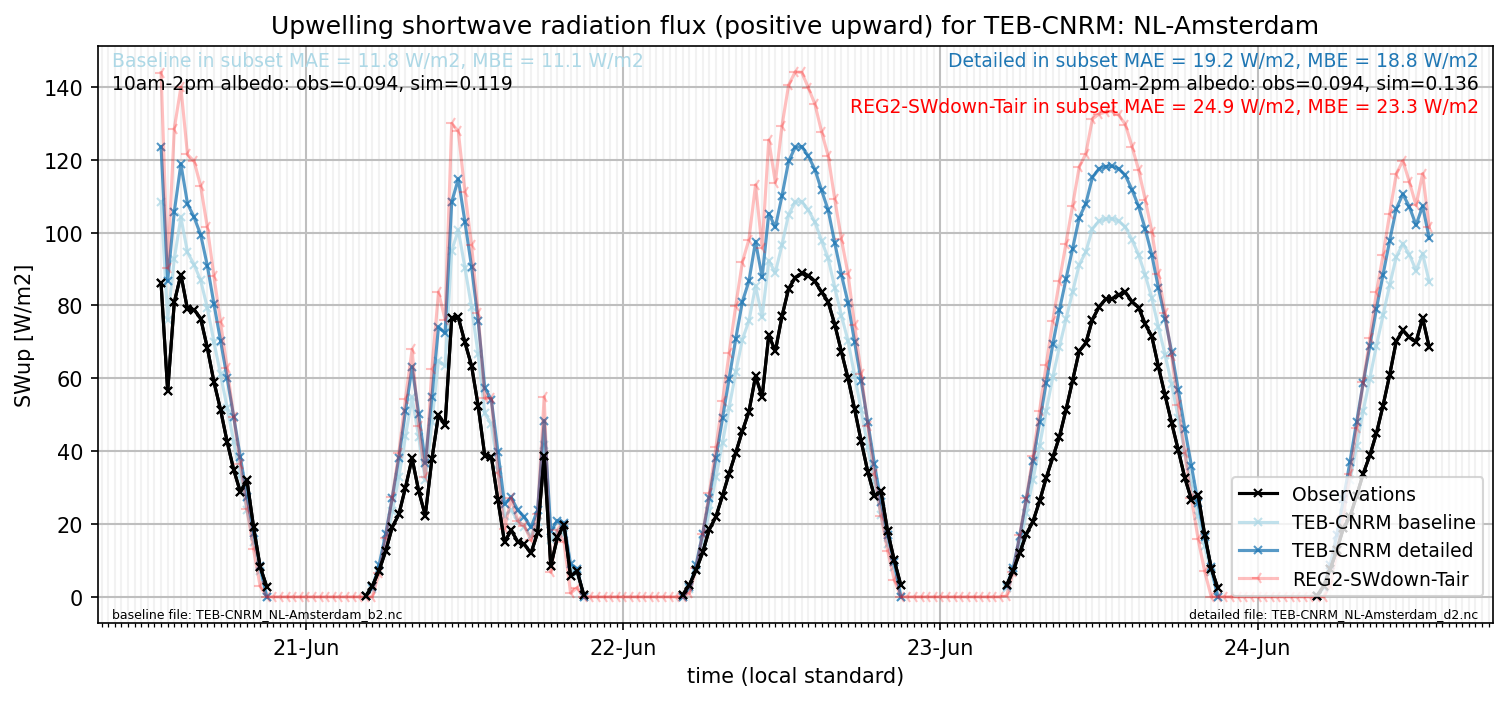

subset_SWup_v0-9

out of range: baseline

out of range: detailed

Link to variable definitions
