Urban-PLUMBER

A multi-site model evaluation project for urban areas

Phase 2 Phase 1 Download project protocol

Mathew Lipson (UNSW), Sue Grimmond (Reading), Martin Best (Met Office),
with observational and modelling participants.

NL-Amsterdam: UCLEM

NOTE: Results presented here are highly dependent on how models are configured in this experiment and may be subject to variable output formatting errors. Results are not intended to indicate the quality of any individual model, but to help participants better understand and improve modelling approaches in different urban environments.

Submitted metadata

Error metrics

flux	experiment	MAE	MBE	nSD	R	5th	95th	RMSE	cRMSE	AMBE	1-nSD	1-R	nSkewness	nKurtosis	Overlap
SWup	baseline	16.1658	16.126	1.53284	0.988412	1.04637	41.4007	21.3965	0.565193	16.126	0.532839	0.0115878	0.0234927	0.0408173	0.0996415
SWup	detailed	2.52942	0.370871	0.99359	0.986539	0.389067	0.648999	4.08942	0.16368	0.370871	0.00641071	0.0134612	0.0445915	0.183107	0.0610664
LWup	baseline	12.9463	10.7657	1.28185	0.980089	2.61089	35.3468	17.7456	0.361228	10.7657	0.281849	0.0199112	0.0496801	0.249314	0.117141
LWup	detailed	9.35761	5.90412	1.19901	0.982676	4.88869	23.4279	12.5942	0.284861	5.90412	0.199004	0.0173238	0.054727	0.116859	0.0869115
Qle	baseline	21.6461	-14.2846	0.937458	0.632485	4.56958	13.3965	32.5288	0.832448	14.2846	0.0625429	0.367515	0.0804467	0.11452	0.417986
Qle	detailed	22.75	-15.5719	0.955389	0.587115	4.52828	18.272	34.8896	0.889337	15.5719	0.0446116	0.412885	0.734538	1.50077	0.425344
Qh	baseline	32.7054	-15.7766	0.791904	0.859012	6.1969	41.5273	50.632	0.516335	15.7766	0.208096	0.140988	0.743639	0.59191	0.14562
Qh	detailed	40.4889	28.5242	1.00895	0.864608	28.4374	48.9824	56.448	0.52277	28.5242	0.00895188	0.135392	0.746717	0.586027	0.247187
Qtau	baseline	0.299901	-0.273504	0.463068	0.736822	0.0218099	0.90648	0.520338	0.729407	0.273504	0.536932	0.263178	0.293046	0.646354	0.219501
Qtau	detailed	0.242319	-0.197456	0.58162	0.76083	0.0261099	0.68368	0.453786	0.673242	0.197456	0.41838	0.23917	0.285585	0.641595	0.145381

MAE: mean absolute error (close to 0 is better)
MBE: mean bias error (close to 0 is better)
NSD: ratio of model to obs standard deviation (close to 1 is better)
R: Pearson’s correlation (close to 1 is better)
all others: closer to 0 is better

Link to variable definitions

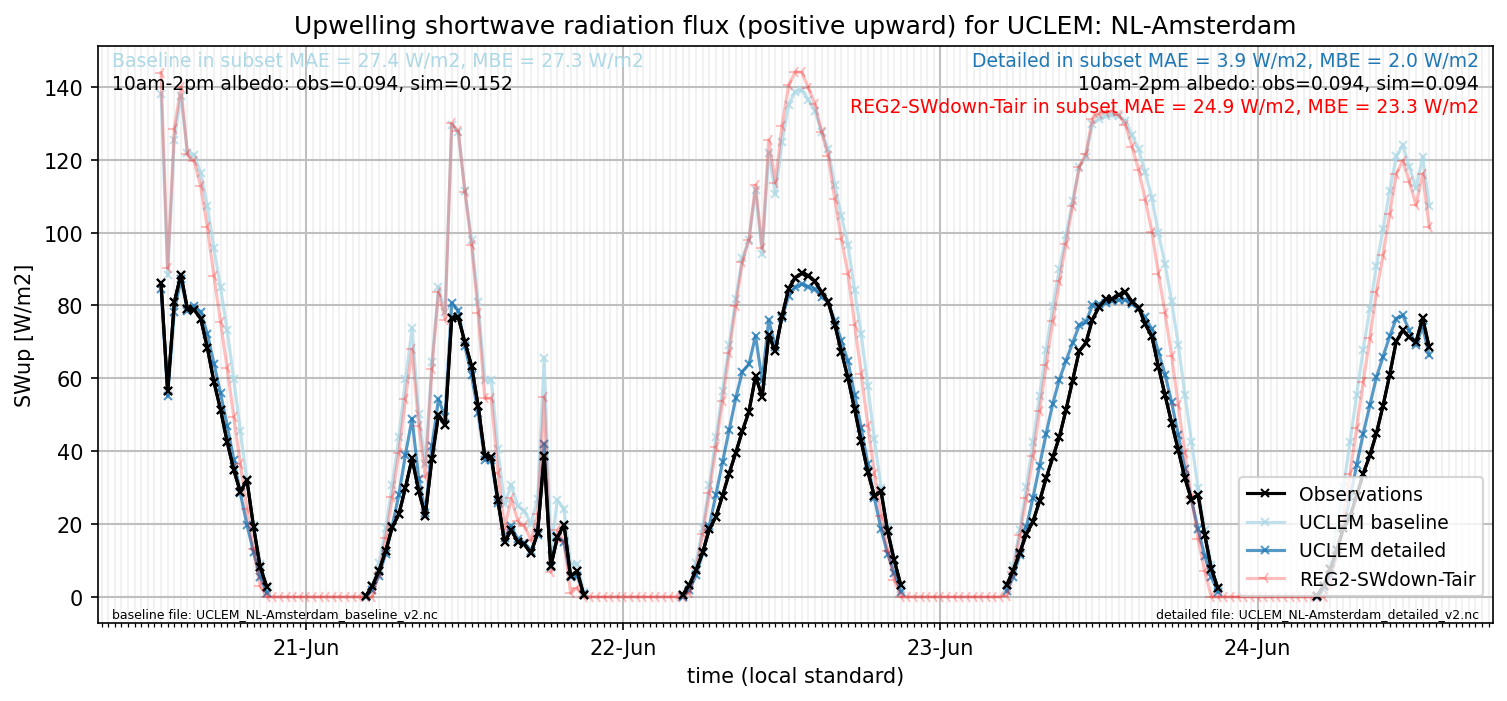

subset_SWup_v0-9

out of range: baseline

out of range: detailed

UCLEM Qle max value of 715.5164 is greater than expected 700.0 [W/m2]

Link to variable definitions
