PL-Lipowa: ASLUMv2.0

NOTE: Results presented here are highly dependent on how models are configured in this experiment and may be subject to variable output formatting errors. Results are not intended to indicate the quality of any individual model, but to help participants better understand and improve modelling approaches in different urban environments.

Submitted metadata

• Baseline
• Detailed

Error metrics

flux	experiment	MAE	MBE	nSD	R	5th	95th	RMSE	cRMSE	AMBE	1-nSD	1-R	nSkewness	nKurtosis	Overlap
SWup	baseline	17.275	14.5679	1.8608	0.905004	0.746811	56.5087	25.8247	1.04619	14.5679	0.860796	0.0949959	0.15597	1.00132	0.247689
SWup	detailed	4.80915	-1.43766	1.03895	0.907114	0.955335	4.8556	9.10373	0.441048	1.43766	0.038945	0.0928856	0.0406845	1.50033	0.134181
LWup	baseline	23.6207	-23.5775	0.986042	0.988778	20.9815	22.8138	25.1984	0.149415	23.5775	0.0139614	0.0112217	0.140257	0.186366	0.178671
LWup	detailed	26.7396	-26.7277	0.960099	0.990519	22.0596	27.9564	28.0086	0.140706	26.7277	0.0399039	0.00948132	0.24127	0.7316	0.194591
Qle	baseline	16.3491	2.17585	0.8223	0.636399	12.2073	3.76363	25.8953	0.793445	2.17585	0.1777	0.363601	0.358871	0.16008	0.148429
Qle	detailed	18.3039	5.62478	0.957955	0.580174	12.5738	2.00213	29.7357	0.897841	5.62478	0.0420447	0.419826	0.871011	1.22301	0.165016
Qh	baseline	22.2692	9.34876	0.897538	0.88923	20.7829	4.23784	32.0862	0.457537	9.34876	0.102462	0.11077	0.147293	0.483123	0.22868
Qh	detailed	27.0705	19.1749	1.13571	0.883086	13.3524	40.2857	40.5674	0.532897	19.1749	0.135711	0.116914	0.20039	0.537866	0.15375

• MAE: mean absolute error (close to 0 is better)
• MBE: mean bias error (close to 0 is better)
• NSD: ratio of model to obs standard deviation (close to 1 is better)
• R: Pearson’s correlation (close to 1 is better)
• all others: closer to 0 is better

Link to variable definitions

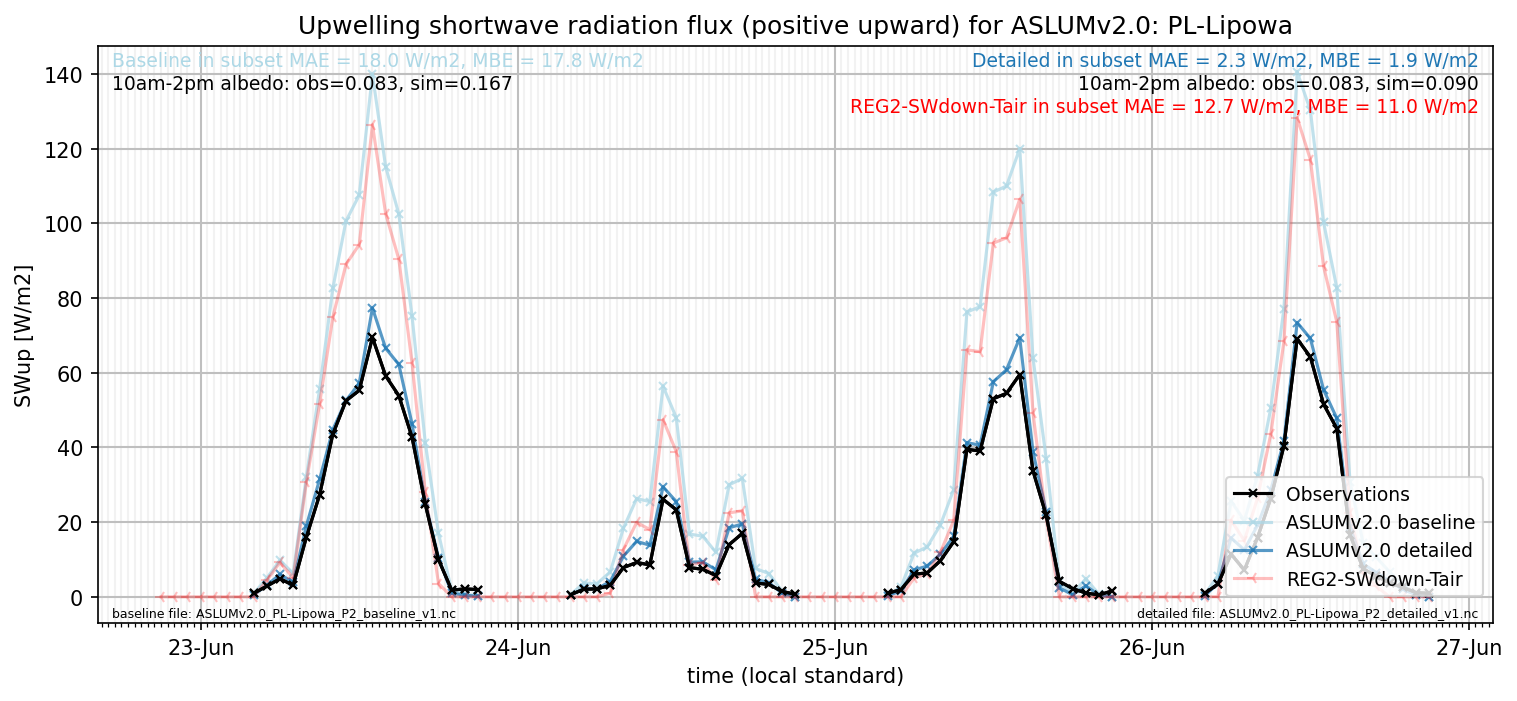

subset_SWup_v0-9

out of range: baseline

out of range: detailed

• ASLUMv2.0 Qh max value of 673.2982 is greater than expected 600.0 [W/m2]

Link to variable definitions
