PL-Lipowa: TEB-READING

NOTE: Results presented here are highly dependent on how models are configured in this experiment and may be subject to variable output formatting errors. Results are not intended to indicate the quality of any individual model, but to help participants better understand and improve modelling approaches in different urban environments.

Submitted metadata

• Baseline
• Detailed

Error metrics

flux	experiment	MAE	MBE	nSD	R	5th	95th	RMSE	cRMSE	AMBE	1-nSD	1-R	nSkewness	nKurtosis	Overlap
SWup	baseline	7.46311	5.89698	1.36967	0.958632	0.70115	22.3257	11.7738	0.499979	5.89698	0.369671	0.0413677	0.292938	1.66725	0.15402
SWup	detailed	7.80144	-6.48731	0.867241	0.908388	0.949241	10.3239	10.7433	0.420149	6.48731	0.13276	0.0916123	1.25932	12.7057	0.172605
LWup	baseline	17.4654	-14.1697	1.12401	0.987205	17.266	9.79116	18.897	0.210099	14.1697	0.124002	0.0127954	0.726143	2.01914	0.151454
LWup	detailed	15.8305	-10.7985	1.14945	0.98691	14.9078	16.7632	17.3859	0.228972	10.7985	0.149449	0.0130898	0.770499	1.96246	0.145658
Qle	baseline	18.206	-4.72439	0.768114	0.533357	11.8288	17.1958	28.9373	0.877861	4.72439	0.231886	0.466643	0.882714	1.1709	0.263798
Qle	detailed	18.145	-5.11059	0.722373	0.525658	12.127	20.9694	28.8519	0.873144	5.11059	0.277627	0.474342	0.88914	1.19811	0.250802
Qh	baseline	48.0785	46.2756	1.20304	0.892131	38.2304	82.9823	59.1187	0.548422	46.2756	0.203039	0.107869	0.1248	0.435023	0.496584
Qh	detailed	35.8351	31.9085	1.14644	0.887773	29.4151	61.4126	47.6732	0.527984	31.9085	0.146437	0.112227	0.0786508	0.350146	0.387743

• MAE: mean absolute error (close to 0 is better)
• MBE: mean bias error (close to 0 is better)
• NSD: ratio of model to obs standard deviation (close to 1 is better)
• R: Pearson’s correlation (close to 1 is better)
• all others: closer to 0 is better

Link to variable definitions

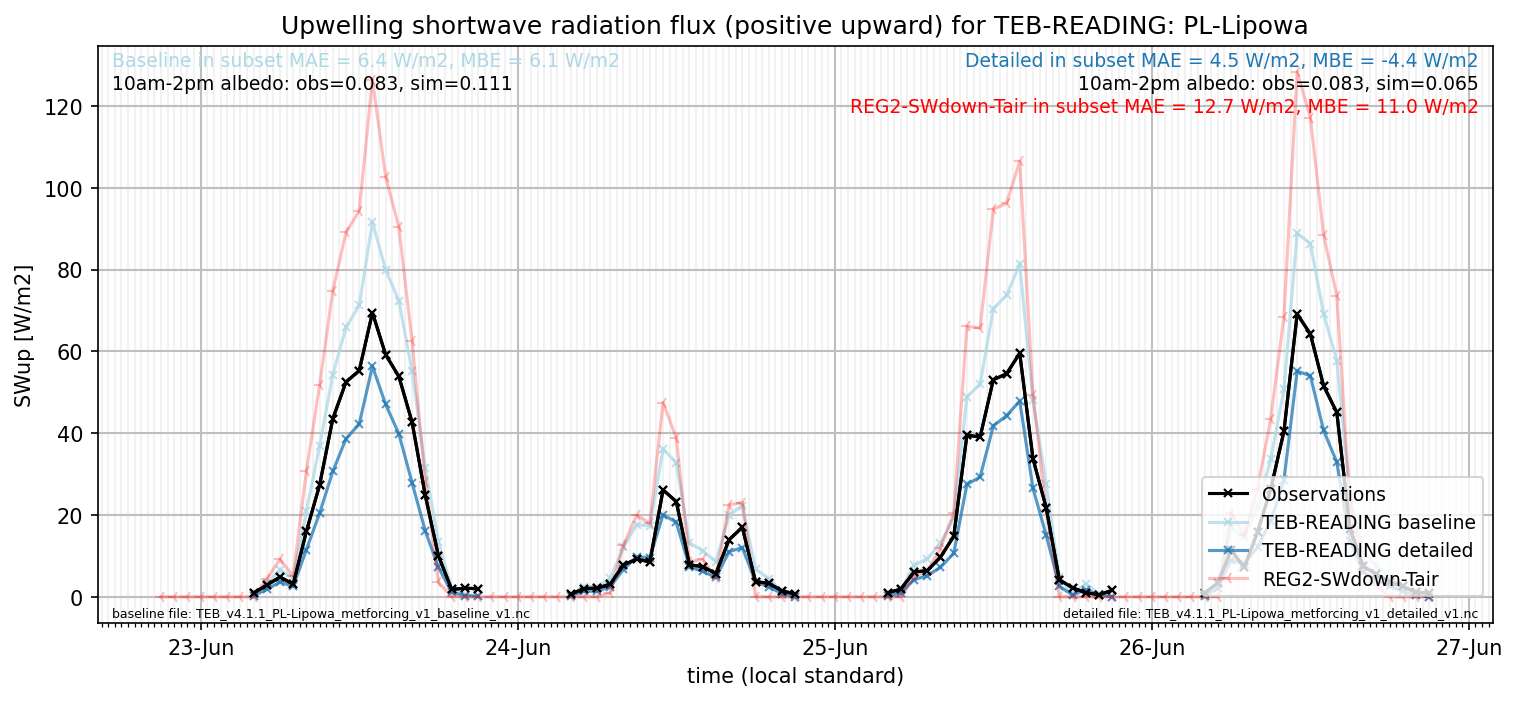

subset_SWup_v0-9

out of range: baseline

• TEB-READING Qanth min value of -25.6198 is less than expected 0.0 [W/m2]

out of range: detailed

• TEB-READING Qanth min value of -50.5744 is less than expected 0.0 [W/m2]

Link to variable definitions
