PL-Lipowa: TERRA_4.11

NOTE: Results presented here are highly dependent on how models are configured in this experiment and may be subject to variable output formatting errors. Results are not intended to indicate the quality of any individual model, but to help participants better understand and improve modelling approaches in different urban environments.

Submitted metadata

• Baseline
• Detailed

Error metrics

flux	experiment	MAE	MBE	nSD	R	5th	95th	RMSE	cRMSE	AMBE	1-nSD	1-R	nSkewness	nKurtosis	Overlap
SWup	baseline	5.59155	0.977007	1.26209	0.897156	0.933906	11.1041	11.719	0.572966	0.977007	0.262089	0.102844	1.41239	17.4746	0.141131
SWup	detailed	5.8941	1.6621	1.28232	0.907397	0.926833	13.1658	11.5989	0.563201	1.6621	0.282314	0.092603	1.21515	14.3838	0.14741
LWup	baseline	42.4208	-42.4185	0.841923	0.886537	42.3029	71.0757	50.6399	0.464803	42.4185	0.15808	0.113463	1.39058	0.628239	0.233523
LWup	detailed	17.9683	-17.7848	1.03265	0.994867	19.0362	11.7825	18.9107	0.108016	17.7848	0.0326471	0.00513313	0.222845	0.734639	0.138752
Qle	baseline	16.6057	-7.37061	0.668499	0.650248	12.1501	22.7052	25.7898	0.759941	7.37061	0.331501	0.349752	0.547106	0.128331	0.382799
Qle	detailed	16.6991	-7.83193	0.663916	0.655208	12.1347	22.2116	25.7878	0.755499	7.83193	0.336084	0.344792	0.476374	0.0785276	0.403236
Qh	baseline	70.8445	69.6962	1.37304	0.871684	43.7054	125.602	84.0811	0.701088	69.6962	0.373038	0.128316	0.214957	0.574691	0.547669
Qh	detailed	42.8514	40.4391	1.16903	0.894924	29.8634	64.671	53.5682	0.523684	40.4391	0.169027	0.105076	0.201573	0.556726	0.416363

• MAE: mean absolute error (close to 0 is better)
• MBE: mean bias error (close to 0 is better)
• NSD: ratio of model to obs standard deviation (close to 1 is better)
• R: Pearson’s correlation (close to 1 is better)
• all others: closer to 0 is better

Link to variable definitions

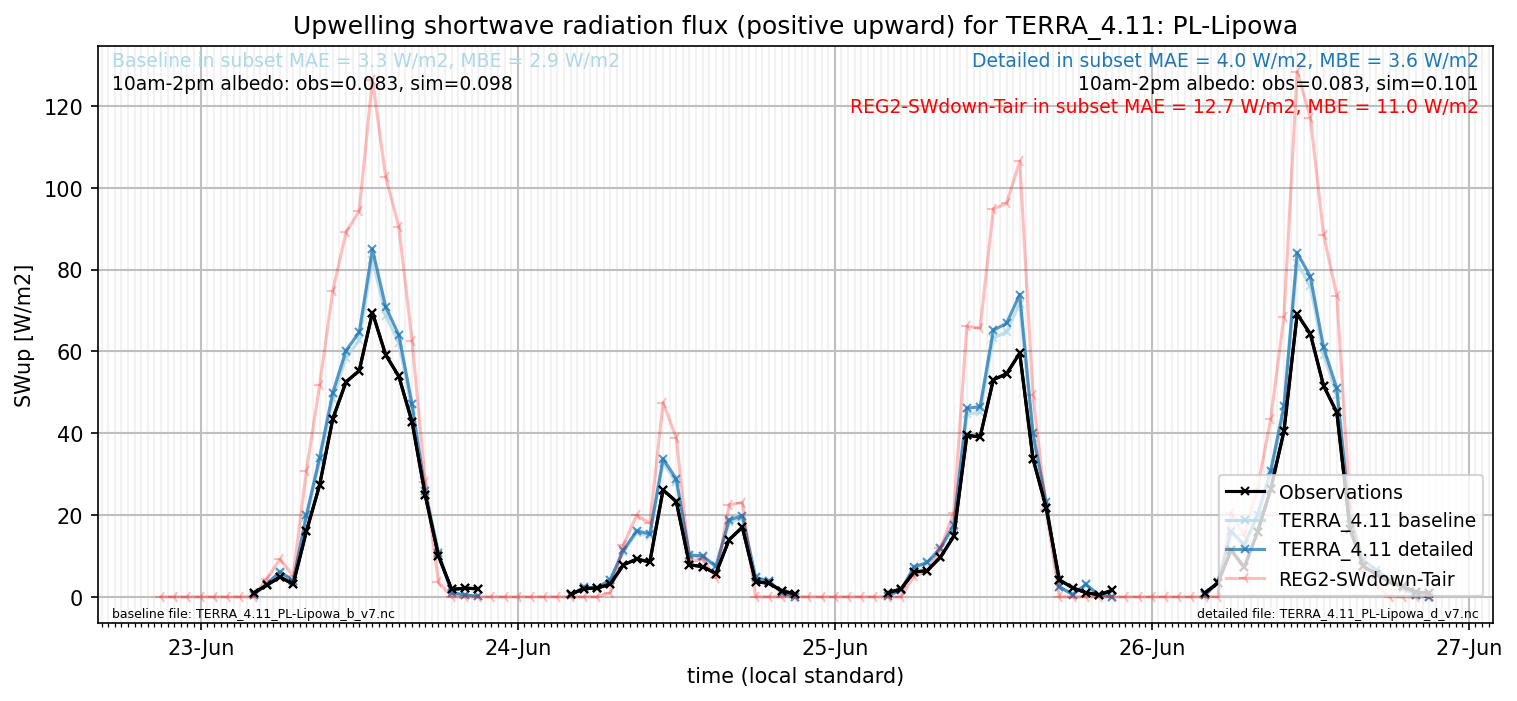

subset_SWup_v0-9

out of range: baseline

• TERRA_4.11 SWup min value of -0.0013 is less than expected 0.0 [W/m2]
• TERRA_4.11 Albedo min value of -0.0753 is less than expected 0.0 [1]

out of range: detailed

• TERRA_4.11 SWup min value of -0.0012 is less than expected 0.0 [W/m2]
• TERRA_4.11 Albedo min value of -0.0717 is less than expected 0.0 [1]

Link to variable definitions
