PL-Narutowicza: SUEWS

NOTE: Results presented here are highly dependent on how models are configured in this experiment and may be subject to variable output formatting errors. Results are not intended to indicate the quality of any individual model, but to help participants better understand and improve modelling approaches in different urban environments.

Submitted metadata

• Baseline
• Detailed

Error metrics

flux	experiment	MAE	MBE	nSD	R	5th	95th	RMSE	cRMSE	AMBE	1-nSD	1-R	nSkewness	nKurtosis	Overlap
SWup	baseline	10.2517	5.25422	1.32475	0.882203	0.279755	24.6669	14.9133	0.646192	5.25422	0.324747	0.117797	0.140319	1.28571	0.151213
SWup	detailed	5.63759	-3.7357	0.926677	0.887994	0.055795	1.99168	10.6445	0.461479	3.7357	0.0733234	0.112006	0.106354	1.40457	0.102242
LWup	baseline	13.1211	-4.45751	0.934727	0.966134	0.0690563	12.5239	15.7628	0.259945	4.45751	0.0652711	0.033866	0.1802	0.45666	0.0550217
LWup	detailed	13.0343	-4.24734	0.940917	0.96628	0.0433823	10.9755	15.637	0.258738	4.24734	0.059081	0.0337196	0.142669	0.387203	0.0521711
Qle	baseline	31.7431	-18.8019	0.687476	0.348777	14.6366	46.6149	46.8577	0.996529	18.8019	0.312526	0.651223	2.5454	8.64429	0.48564
Qle	detailed	31.6504	-18.9833	0.689243	0.367279	14.6352	45.0412	46.448	0.98426	18.9833	0.310759	0.632721	2.3881	7.40412	0.495493
Qh	baseline	80.4521	76.6266	1.18588	0.815603	50.2304	100.895	91.5722	0.686946	76.6266	0.185875	0.184397	0.302544	0.649512	0.516548
Qh	detailed	48.0894	39.2114	1.13743	0.826791	26.6099	66.3253	61.1323	0.642582	39.2114	0.137425	0.173209	0.0671589	0.223896	0.331506

• MAE: mean absolute error (close to 0 is better)
• MBE: mean bias error (close to 0 is better)
• NSD: ratio of model to obs standard deviation (close to 1 is better)
• R: Pearson’s correlation (close to 1 is better)
• all others: closer to 0 is better

Link to variable definitions

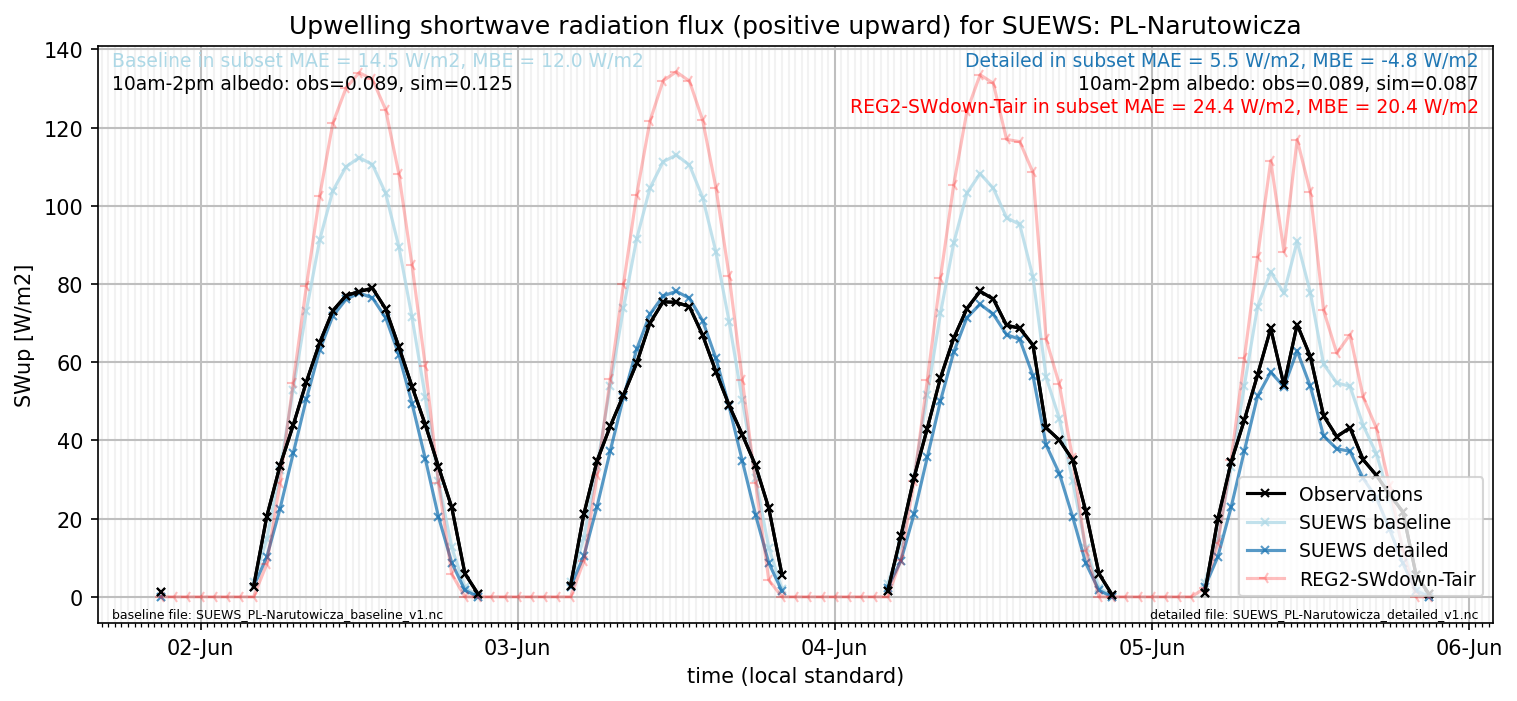

subset_SWup_v0-9

out of range: baseline

out of range: detailed
