PL-Narutowicza: TEB-READING

NOTE: Results presented here are highly dependent on how models are configured in this experiment and may be subject to variable output formatting errors. Results are not intended to indicate the quality of any individual model, but to help participants better understand and improve modelling approaches in different urban environments.

Submitted metadata

• Baseline
• Detailed

Error metrics

flux	experiment	MAE	MBE	nSD	R	5th	95th	RMSE	cRMSE	AMBE	1-nSD	1-R	nSkewness	nKurtosis	Overlap
SWup	baseline	9.21254	7.78282	1.3949	0.937225	0.445503	25.4415	14.6636	0.575389	7.78282	0.394897	0.0627747	0.427102	2.18043	0.139868
SWup	detailed	7.94811	-5.43524	0.933548	0.885342	0.145599	6.62196	11.4661	0.467432	5.43524	0.0664526	0.114658	1.30966	10.1974	0.138578
LWup	baseline	12.584	2.9351	1.12033	0.974356	1.36652	23.5458	15.874	0.268213	2.9351	0.120334	0.0256435	0.688103	1.58621	0.0705493
LWup	detailed	13.6025	5.64148	1.14075	0.973864	0.749397	29.116	17.3371	0.281851	5.64148	0.140754	0.0261359	0.735369	1.51777	0.074768
Qle	baseline	26.4338	-13.5229	0.758107	0.581986	13.9299	24.2619	38.3027	0.832052	13.5229	0.241895	0.418014	1.17847	2.35156	0.37614
Qle	detailed	26.4504	-14.433	0.707755	0.578265	14.2033	30.5402	38.3942	0.826061	14.433	0.292247	0.421735	1.24741	2.69149	0.365657
Qh	baseline	38.944	34.4774	1.06582	0.897291	39.5008	52.5928	48.7656	0.472516	34.4774	0.0658184	0.102709	0.0413131	0.111283	0.394686
Qh	detailed	31.0679	22.4108	1.02582	0.886542	31.7446	35.883	41.7829	0.483157	22.4108	0.0258138	0.113458	0.0986596	0.0385387	0.304307

• MAE: mean absolute error (close to 0 is better)
• MBE: mean bias error (close to 0 is better)
• NSD: ratio of model to obs standard deviation (close to 1 is better)
• R: Pearson’s correlation (close to 1 is better)
• all others: closer to 0 is better

Link to variable definitions

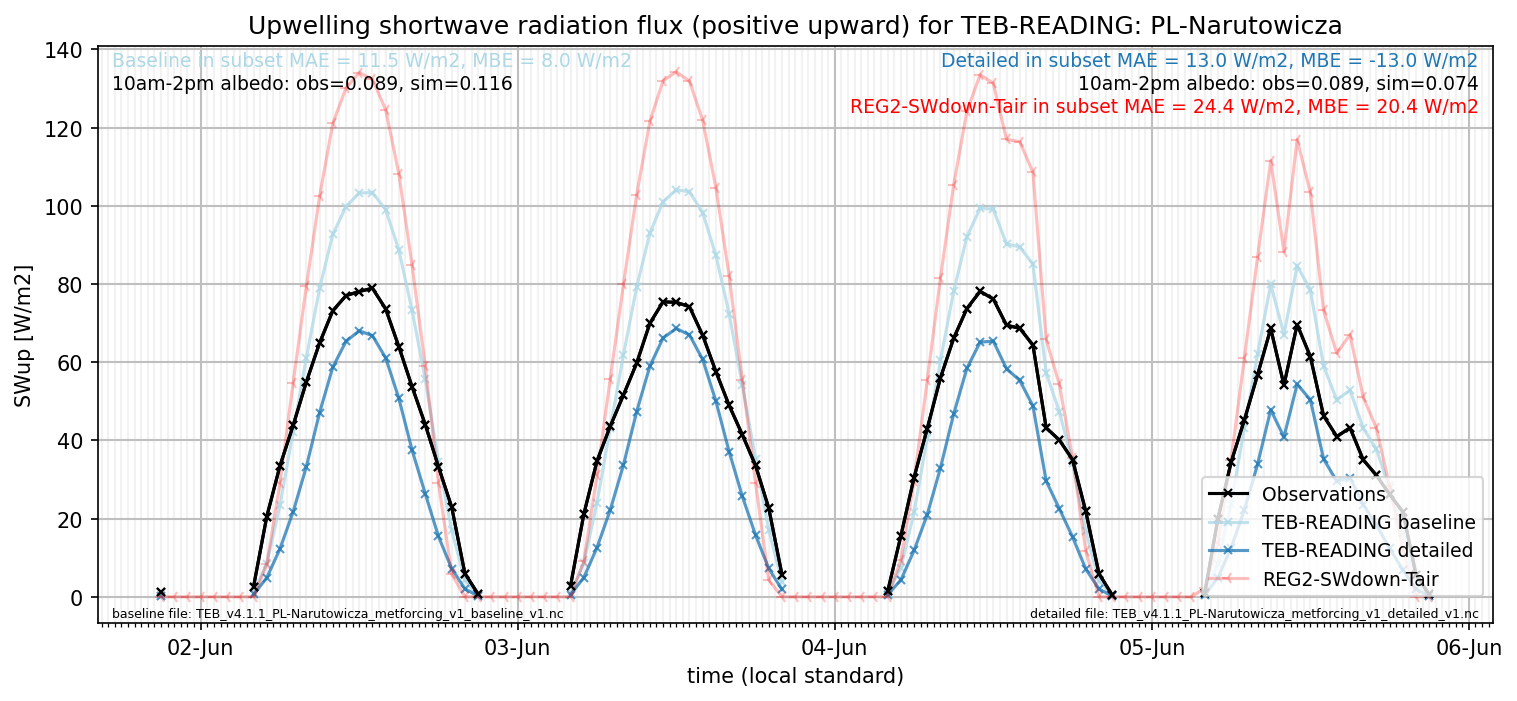

subset_SWup_v0-9

out of range: baseline

• TEB-READING Qanth min value of -33.2882 is less than expected 0.0 [W/m2]

out of range: detailed

• TEB-READING Qanth min value of -54.4694 is less than expected 0.0 [W/m2]

Link to variable definitions
