Urban-PLUMBER

A multi-site model evaluation project for urban areas

Phase 2 Phase 1 Download project protocol

Mathew Lipson (UNSW), Sue Grimmond (Reading), Martin Best (Met Office),
with observational and modelling participants.

PL-Narutowicza: UCLEM

NOTE: Results presented here are highly dependent on how models are configured in this experiment and may be subject to variable output formatting errors. Results are not intended to indicate the quality of any individual model, but to help participants better understand and improve modelling approaches in different urban environments.

Submitted metadata

Error metrics

flux	experiment	MAE	MBE	nSD	R	5th	95th	RMSE	cRMSE	AMBE	1-nSD	1-R	nSkewness	nKurtosis	Overlap
SWup	baseline	18.4876	17.792	1.82566	0.939424	0.4643	54.1484	27.162	0.950212	17.792	0.825662	0.0605762	0.194805	0.0387495	0.234841
SWup	detailed	5.18397	1.63611	1.16005	0.927814	0.069	8.0074	9.63113	0.439426	1.63611	0.16005	0.0721862	0.43458	2.47971	0.0850786
LWup	baseline	14.0427	8.13726	1.13337	0.975111	0.54031	25.3332	17.8116	0.272406	8.13726	0.133376	0.0248888	0.307235	0.221382	0.0780744
LWup	detailed	12.6139	6.09479	1.07763	0.975271	2.50821	15.7802	15.4222	0.243566	6.09479	0.0776356	0.0247289	0.201299	0.0453905	0.0699416
Qle	baseline	27.6931	-17.391	0.8485	0.519855	9.4279	32.2509	43.0869	0.915292	17.391	0.151502	0.480145	0.730118	10.3671	0.379416
Qle	detailed	29.1635	-20.4156	0.762111	0.470377	10.2012	48.8729	44.9359	0.929438	20.4156	0.237891	0.529623	0.719587	22.1254	0.388119
Qh	baseline	28.131	4.73311	0.711579	0.848875	27.5209	41.1217	40.1408	0.546133	4.73311	0.288423	0.151125	0.0313721	0.0858659	0.288559
Qh	detailed	40.8169	28.4433	0.78295	0.820502	41.2902	7.927	50.57	0.572876	28.4433	0.217052	0.179498	0.00707449	0.214797	0.447009

MAE: mean absolute error (close to 0 is better)
MBE: mean bias error (close to 0 is better)
NSD: ratio of model to obs standard deviation (close to 1 is better)
R: Pearson’s correlation (close to 1 is better)
all others: closer to 0 is better

Link to variable definitions

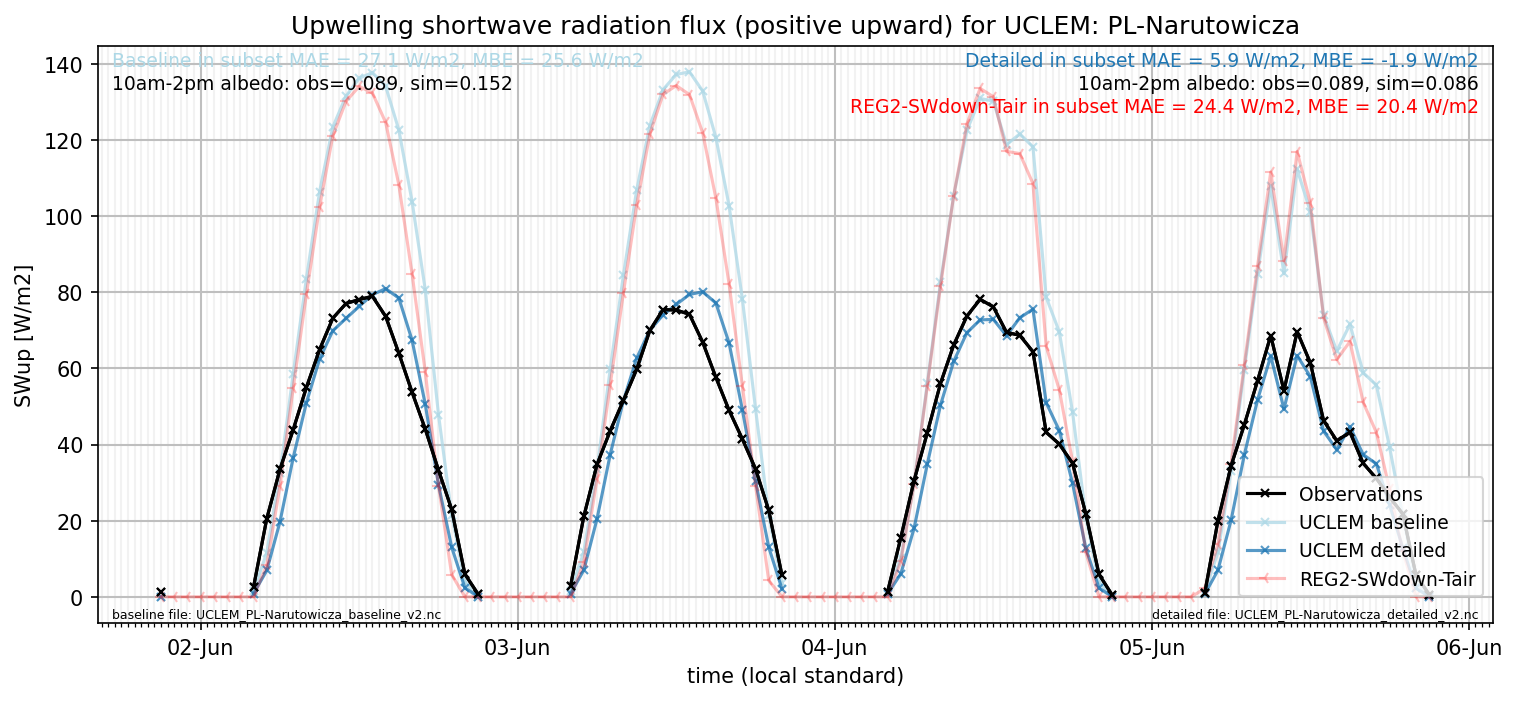

subset_SWup_v0-9

out of range: baseline

UCLEM Qle max value of 763.4641 is greater than expected 700.0 [W/m2]

out of range: detailed

UCLEM Qle max value of 931.6539 is greater than expected 700.0 [W/m2]
