UK-KingsCollege: JULES_1T

NOTE: Results presented here are highly dependent on how models are configured in this experiment and may be subject to variable output formatting errors. Results are not intended to indicate the quality of any individual model, but to help participants better understand and improve modelling approaches in different urban environments.

Submitted metadata

• Baseline
• Detailed

Error metrics

flux	experiment	MAE	MBE	nSD	R	5th	95th	RMSE	cRMSE	AMBE	1-nSD	1-R	nSkewness	nKurtosis	Overlap
SWup	baseline	12.7177	12.3366	1.52302	0.98657	0.436157	38.1826	18.0926	0.560764	12.3366	0.523015	0.0134304	0.0394805	0.238343	0.139435
SWup	detailed	2.93885	0.640186	1.02959	0.986559	0.628546	1.44814	4.03903	0.168978	0.640186	0.0295871	0.0134413	0.0395524	0.238422	0.0944061
LWup	baseline	10.1729	5.67706	1.21119	0.973428	4.15149	21.569	13.7486	0.3301	5.67706	0.211188	0.0265716	0.0886368	0.580108	0.11188
LWup	detailed	9.25031	5.95254	1.19855	0.978618	2.50762	21.9356	12.8806	0.301125	5.95254	0.198549	0.0213822	0.00310091	0.328153	0.0980436
Qle	baseline	13.7801	-3.41398	0.679195	0.496376	8.04149	17.4044	19.4262	0.887149	3.41398	0.320805	0.503624	0.683913	0.922859	0.205868
Qle	detailed	13.7556	-3.02414	0.687425	0.491441	8.37646	16.9433	19.4794	0.89269	3.02414	0.312576	0.508559	0.777478	1.16718	0.221055
Qh	baseline	53.6315	-49.4037	0.658278	0.673604	18.3992	89.6834	69.2042	0.739251	49.4037	0.341723	0.326396	0.388162	0.931154	0.468587
Qh	detailed	51.4004	-43.8823	0.828394	0.6969	24.1618	58.0431	64.8864	0.729124	43.8823	0.171607	0.3031	0.363938	0.801462	0.437343
Qtau	baseline	0.140229	-0.127166	0.658558	0.740977	0.0395192	0.261916	0.195487	0.676569	0.127166	0.341442	0.259023	0.0556047	0.17269	0.278454
Qtau	detailed	0.108778	-0.0300145	1.00267	0.777636	0.0350681	0.0185172	0.149585	0.667773	0.0300145	0.00266705	0.222364	0.00366843	0.00752807	0.0884755

• MAE: mean absolute error (close to 0 is better)
• MBE: mean bias error (close to 0 is better)
• NSD: ratio of model to obs standard deviation (close to 1 is better)
• R: Pearson’s correlation (close to 1 is better)
• all others: closer to 0 is better

Link to variable definitions

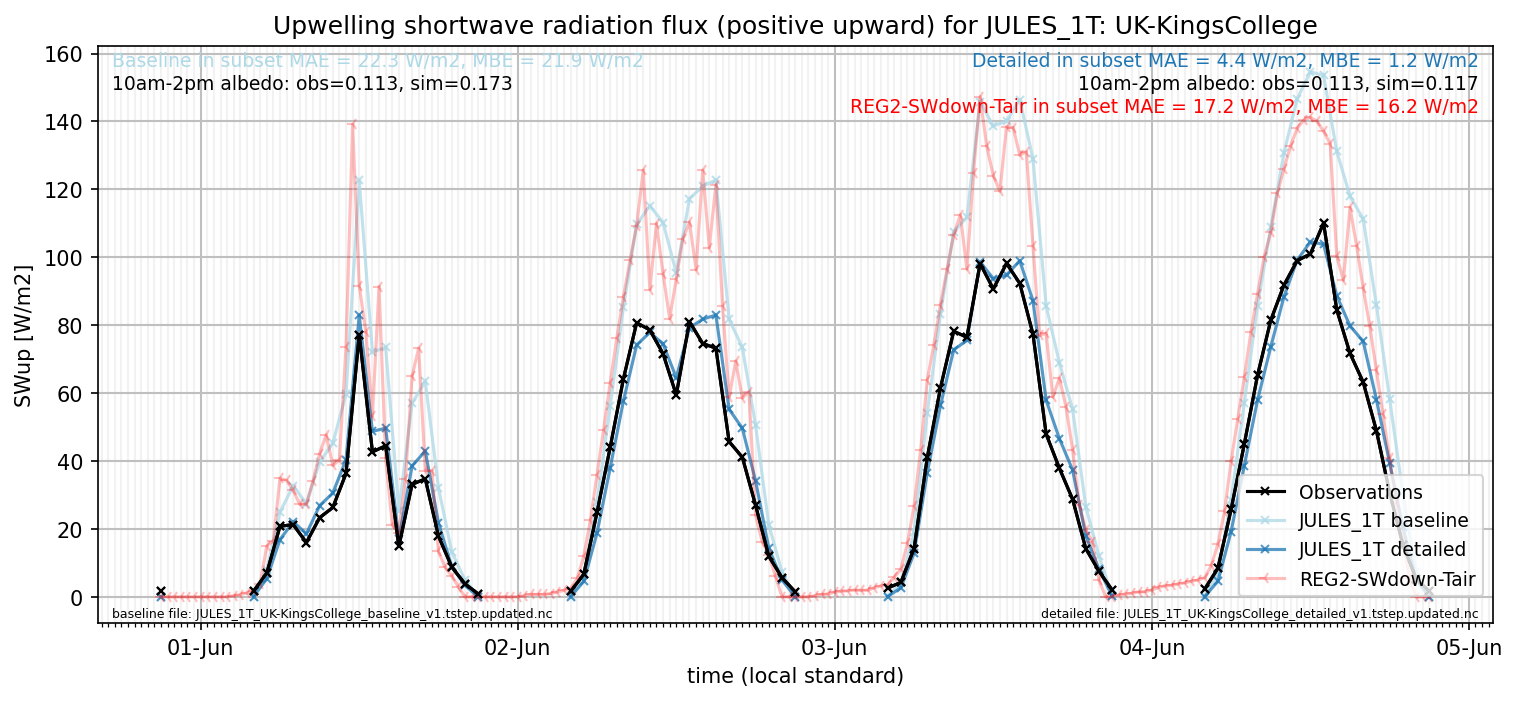

subset_SWup_v0-9

out of range: baseline

out of range: detailed
