UK-KingsCollege: Manabe_2T

NOTE: Results presented here are highly dependent on how models are configured in this experiment and may be subject to variable output formatting errors. Results are not intended to indicate the quality of any individual model, but to help participants better understand and improve modelling approaches in different urban environments.

Submitted metadata

• Baseline
• Detailed

Error metrics

flux	experiment	MAE	MBE	nSD	R	5th	95th	RMSE	cRMSE	AMBE	1-nSD	1-R	nSkewness	nKurtosis	Overlap
SWup	baseline	12.8253	12.4576	1.52805	0.986702	0.434209	38.5546	18.2521	0.565228	12.4576	0.528053	0.0132984	0.0397045	0.23953	0.140932
SWup	detailed	2.97799	0.763808	1.03467	0.986757	0.626598	1.82015	4.0641	0.169135	0.763808	0.0346725	0.0132429	0.0399746	0.24143	0.09217
LWup	baseline	11.0639	5.6455	1.33018	0.985948	8.22919	32.4403	15.5735	0.382627	5.6455	0.330183	0.0140519	0.162099	0.182163	0.123776
LWup	detailed	10.963	5.49473	1.35471	0.983914	8.27774	35.7208	16.5514	0.411583	5.49473	0.354706	0.0160864	0.32687	0.735184	0.110176
Qle	baseline	13.9643	-3.37704	0.78247	0.493364	9.07392	8.95563	20.0454	0.91661	3.37704	0.21753	0.506636	0.989203	1.26901	0.275565
Qle	detailed	14.0599	-3.07036	0.79753	0.486782	9.06251	8.10569	20.2206	0.92715	3.07036	0.20247	0.513218	1.01015	1.37409	0.265673
Qh	baseline	53.0094	-49.2981	0.750393	0.74115	24.058	74.2719	66.087	0.671403	49.2981	0.249608	0.25885	0.361075	0.742603	0.485644
Qh	detailed	50.3429	-43.0244	0.991187	0.782507	31.1811	29.2763	60.8627	0.656681	43.0244	0.00881517	0.217493	0.356242	0.575612	0.483365
Qtau	baseline	0.144928	-0.134912	0.649865	0.748204	0.0382713	0.270612	0.199664	0.670717	0.134912	0.350135	0.251796	0.0182088	0.133132	0.298555
Qtau	detailed	0.112076	-0.0444772	1.00864	0.78004	0.0353391	0.026062	0.152809	0.666181	0.0444772	0.00864365	0.21996	0.00355384	0.0307807	0.135918

• MAE: mean absolute error (close to 0 is better)
• MBE: mean bias error (close to 0 is better)
• NSD: ratio of model to obs standard deviation (close to 1 is better)
• R: Pearson’s correlation (close to 1 is better)
• all others: closer to 0 is better

Link to variable definitions

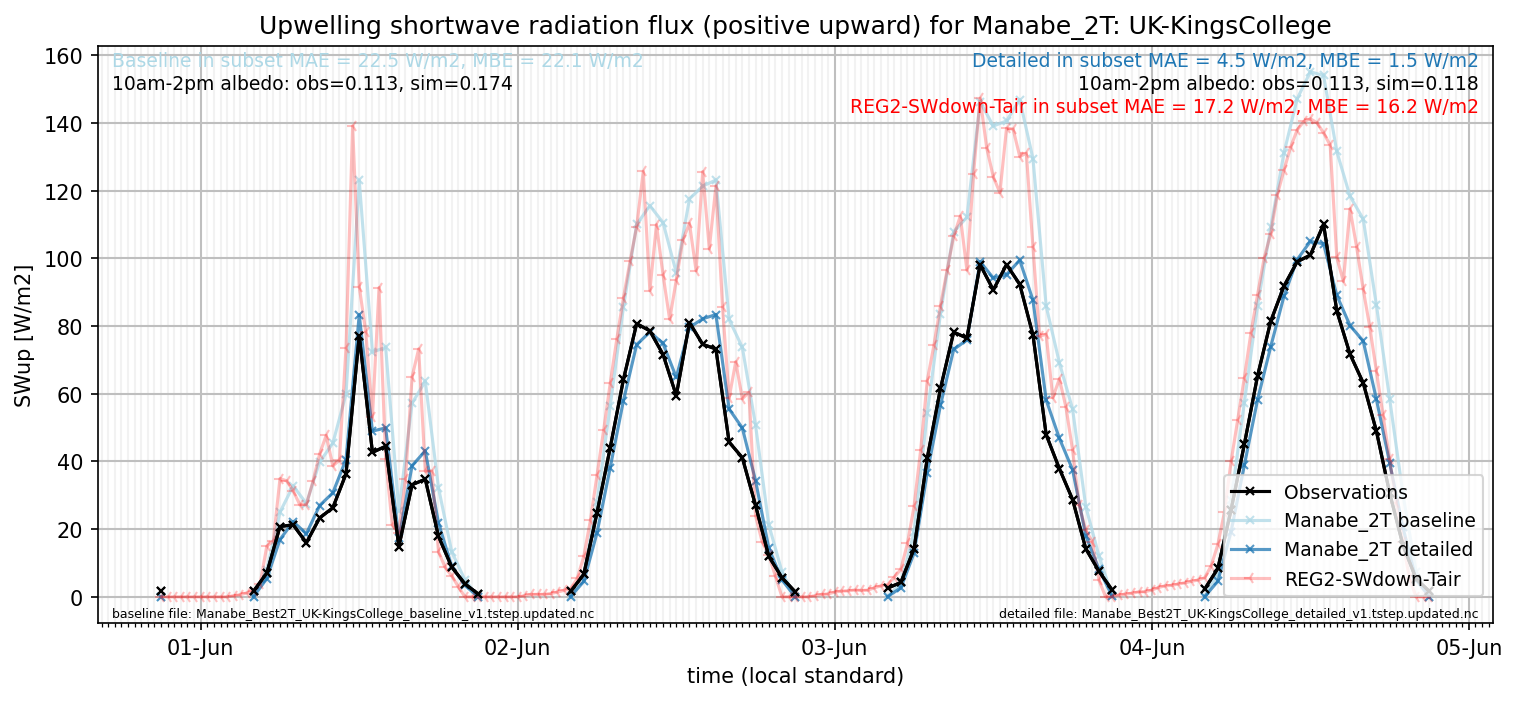

subset_SWup_v0-9

out of range: baseline

out of range: detailed
