UK-KingsCollege: TEB-SPARTCS

NOTE: Results presented here are highly dependent on how models are configured in this experiment and may be subject to variable output formatting errors. Results are not intended to indicate the quality of any individual model, but to help participants better understand and improve modelling approaches in different urban environments.

Submitted metadata

• Baseline
• Detailed

Error metrics

flux	experiment	MAE	MBE	nSD	R	5th	95th	RMSE	cRMSE	AMBE	1-nSD	1-R	nSkewness	nKurtosis	Overlap
SWup	baseline	3.71424	-1.40474	0.956624	0.95898	1.03	5.58836	6.83626	0.283483	1.40474	0.0433771	0.0410198	0.0279595	1.72595	0.149895
SWup	detailed	7.38877	6.31121	1.2331	0.977562	1.03	15.5015	10.0458	0.331169	6.31121	0.2331	0.0224379	0.165324	0.795172	0.189974
LWup	baseline	13.2172	4.25471	1.39919	0.974631	12.5631	40.682	18.6961	0.479944	4.25471	0.399192	0.0253688	0.203611	0.337762	0.136677
LWup	detailed	8.61881	6.34072	1.10511	0.98365	0.111799	11.2237	10.3971	0.217222	6.34072	0.105111	0.01635	0.347897	1.04793	0.115497
Qle	baseline	15.8059	-2.69089	1.09644	0.43935	8.87304	2.12079	24.1414	1.11299	2.69089	0.0964449	0.56065	2.03963	3.49119	0.335344
Qle	detailed	15.4238	4.65327	1.08098	0.511284	10.6495	11.9764	22.7075	1.03109	4.65327	0.0809812	0.488716	0.826748	0.789274	0.168502
Qh	baseline	35.004	-20.4632	1.02746	0.800497	0.101364	7.31496	46.7296	0.640873	20.4632	0.0274616	0.199503	0.518593	0.858676	0.319671
Qh	detailed	29.3628	-9.80144	0.820426	0.808368	6.47623	28.7966	39.8225	0.588801	9.80144	0.179575	0.191632	0.124997	0.132043	0.139524
Qtau	baseline	0.10339	-0.0664314	0.768258	0.795496	0.00296122	0.148937	0.148768	0.60657	0.0664314	0.231742	0.204504	0.0398091	0.0509871	0.15053
Qtau	detailed	0.230969	0.223652	1.71288	0.798327	0.0552984	0.541419	0.328277	1.09503	0.223652	0.712879	0.201673	0.0532201	0.153274	0.298052

• MAE: mean absolute error (close to 0 is better)
• MBE: mean bias error (close to 0 is better)
• NSD: ratio of model to obs standard deviation (close to 1 is better)
• R: Pearson’s correlation (close to 1 is better)
• all others: closer to 0 is better

Link to variable definitions

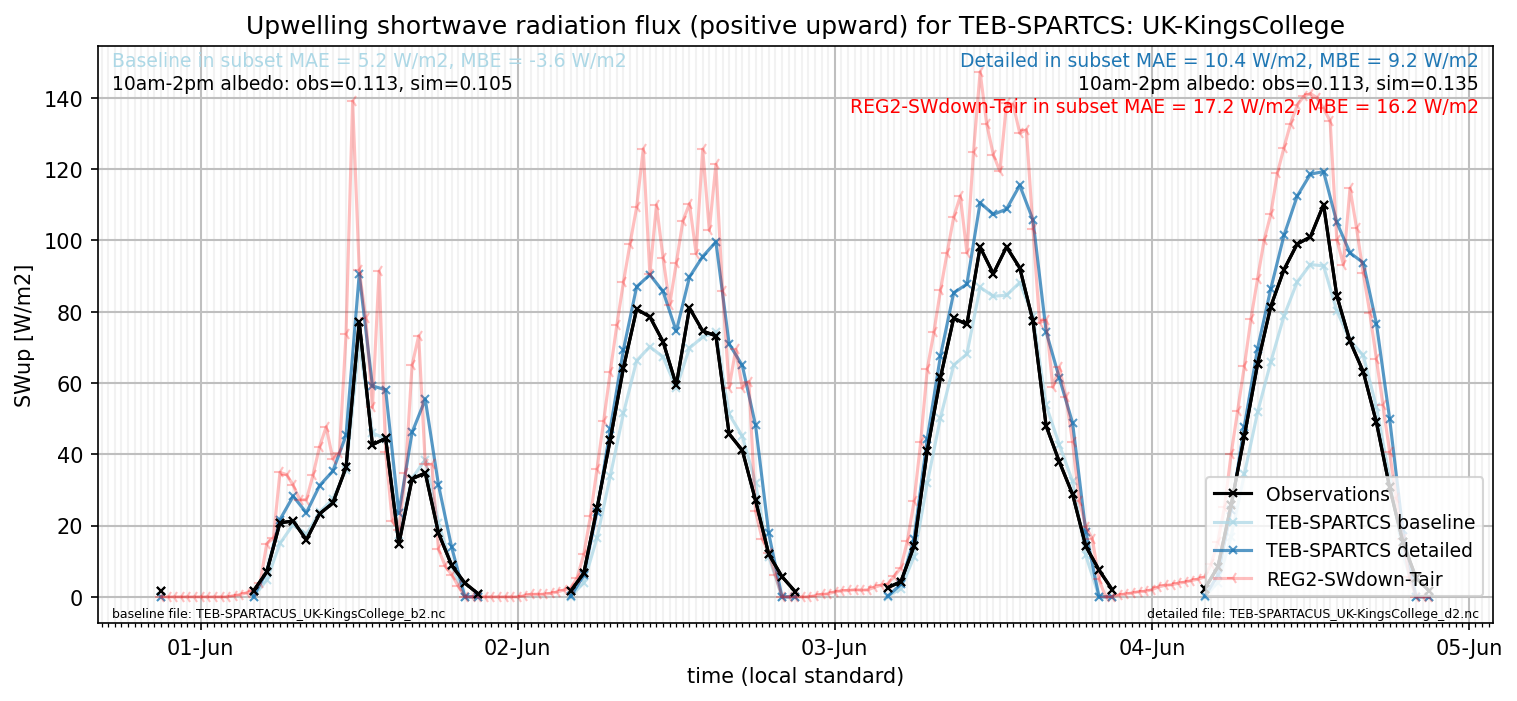

subset_SWup_v0-9

out of range: baseline

out of range: detailed
