UK-KingsCollege: UCLEM

NOTE: Results presented here are highly dependent on how models are configured in this experiment and may be subject to variable output formatting errors. Results are not intended to indicate the quality of any individual model, but to help participants better understand and improve modelling approaches in different urban environments.

Submitted metadata

• Baseline
• Detailed

Error metrics

flux	experiment	MAE	MBE	nSD	R	5th	95th	RMSE	cRMSE	AMBE	1-nSD	1-R	nSkewness	nKurtosis	Overlap
SWup	baseline	10.0274	9.5638	1.39756	0.968983	0.5001	27.3385	15.0927	0.494722	9.5638	0.397559	0.0310167	0.0375915	0.18756	0.136717
SWup	detailed	3.30302	0.387104	1.02481	0.966815	0.6402	0.00339817	6.19488	0.261975	0.387104	0.0248056	0.0331845	0.00110234	0.448187	0.0917988
LWup	baseline	14.2121	9.30182	1.36296	0.980297	6.24602	37.4489	18.7979	0.430635	9.30182	0.362958	0.0197029	0.014516	0.225476	0.152212
LWup	detailed	10.0658	7.42895	1.20807	0.986281	2.17922	22.8801	12.8522	0.276479	7.42895	0.208072	0.0137189	0.0514968	0.337927	0.10668
Qle	baseline	16.638	-3.61067	1.1592	0.473097	6.75	4.4795	24.3393	1.11665	3.61067	0.159199	0.526903	0.749782	2.85628	0.330863
Qle	detailed	16.1047	-4.95012	1.05551	0.463169	7.486	3.5033	23.5051	1.06599	4.95012	0.0555105	0.536831	0.836513	4.72806	0.337457
Qh	baseline	46.6063	-42.4955	0.717403	0.764732	9.9374	71.4269	59.9967	0.646084	42.4955	0.282599	0.235268	0.455478	0.959256	0.41699
Qh	detailed	30.2432	8.56592	0.898523	0.811021	17.1475	1.45741	39.7108	0.591524	8.56592	0.101479	0.188979	0.165152	0.348926	0.194315
Qtau	baseline	0.143718	-0.129535	0.654956	0.709015	0.0401081	0.26884	0.20216	0.707263	0.129535	0.345044	0.290985	0.133972	0.322167	0.272977
Qtau	detailed	0.125442	0.0383958	1.27179	0.777175	0.0368081	0.15806	0.179795	0.800402	0.0383958	0.271791	0.222825	0.00465496	0.028258	0.136915

• MAE: mean absolute error (close to 0 is better)
• MBE: mean bias error (close to 0 is better)
• NSD: ratio of model to obs standard deviation (close to 1 is better)
• R: Pearson’s correlation (close to 1 is better)
• all others: closer to 0 is better

Link to variable definitions

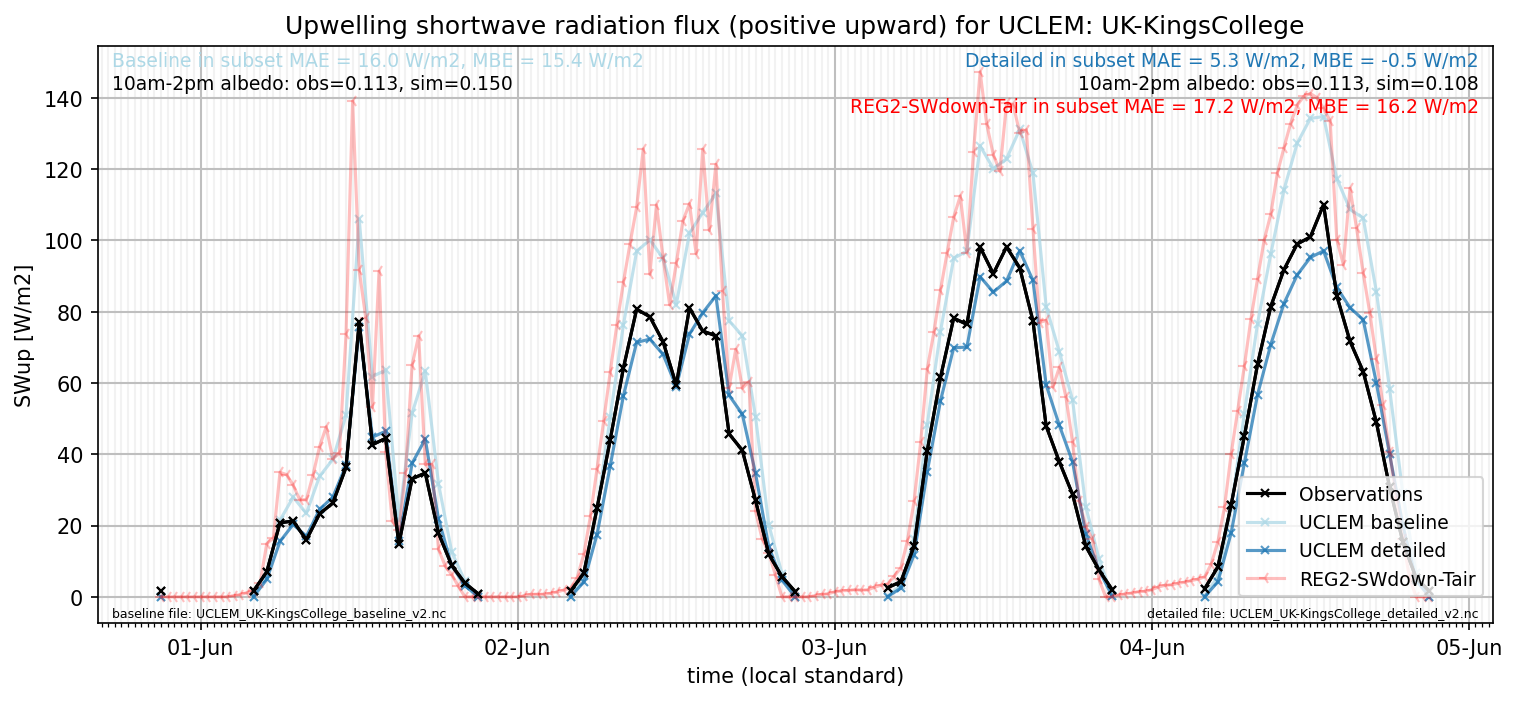

subset_SWup_v0-9

out of range: baseline

out of range: detailed
