UK-Swindon: JULES_1T

NOTE: Results presented here are highly dependent on how models are configured in this experiment and may be subject to variable output formatting errors. Results are not intended to indicate the quality of any individual model, but to help participants better understand and improve modelling approaches in different urban environments.

Submitted metadata

• Baseline
• Detailed

Error metrics

flux	experiment	MAE	MBE	nSD	R	5th	95th	RMSE	cRMSE	AMBE	1-nSD	1-R	nSkewness	nKurtosis	Overlap
SWup	baseline	10.5999	10.2318	1.31448	0.993443	0.662524	28.1561	14.4489	0.340788	10.2318	0.314481	0.00655703	0.0949053	0.452835	0.1256
SWup	detailed	6.44931	5.95595	1.17735	0.993353	0.728905	15.4556	8.81413	0.217037	5.95595	0.177349	0.0066473	0.0948037	0.453304	0.110719
LWup	baseline	6.14807	5.50014	1.12167	0.988491	1.3847	16.1454	8.88764	0.201551	5.50014	0.121671	0.0115091	0.317876	1.14423	0.0663373
LWup	detailed	7.52889	7.00849	1.15993	0.985532	1.72394	20.7667	10.958	0.243194	7.00849	0.159931	0.0144684	0.420399	1.72255	0.0761321
Qle	baseline	10.7738	1.66172	1.02066	0.903083	3.70338	8.49132	18.0423	0.44527	1.66172	0.0206565	0.0969172	0.0916914	0.410023	0.163829
Qle	detailed	10.6898	0.582247	0.994669	0.901815	3.7283	5.19	17.8426	0.441985	0.582247	0.00533053	0.0981847	0.084465	0.392498	0.167543
Qh	baseline	19.3491	0.525352	0.722871	0.909678	12.7157	41.8591	27.8127	0.455393	0.525352	0.277129	0.090322	0.0493843	0.0200773	0.235225
Qh	detailed	18.8035	2.07466	0.743885	0.914516	13.1241	38.0095	26.8907	0.439062	2.07466	0.256115	0.0854844	0.0579691	0.0113617	0.238535
Qtau	baseline	0.0819341	-0.0281667	0.859651	0.80565	0.00670731	0.120126	0.156407	0.594848	0.0281667	0.14035	0.19435	0.311417	2.14138	0.0788093
Qtau	detailed	0.0844837	-0.0448746	0.797006	0.806765	0.00514934	0.167747	0.159294	0.590952	0.0448746	0.202995	0.193235	0.315799	2.16241	0.10021

• MAE: mean absolute error (close to 0 is better)
• MBE: mean bias error (close to 0 is better)
• NSD: ratio of model to obs standard deviation (close to 1 is better)
• R: Pearson’s correlation (close to 1 is better)
• all others: closer to 0 is better

Link to variable definitions

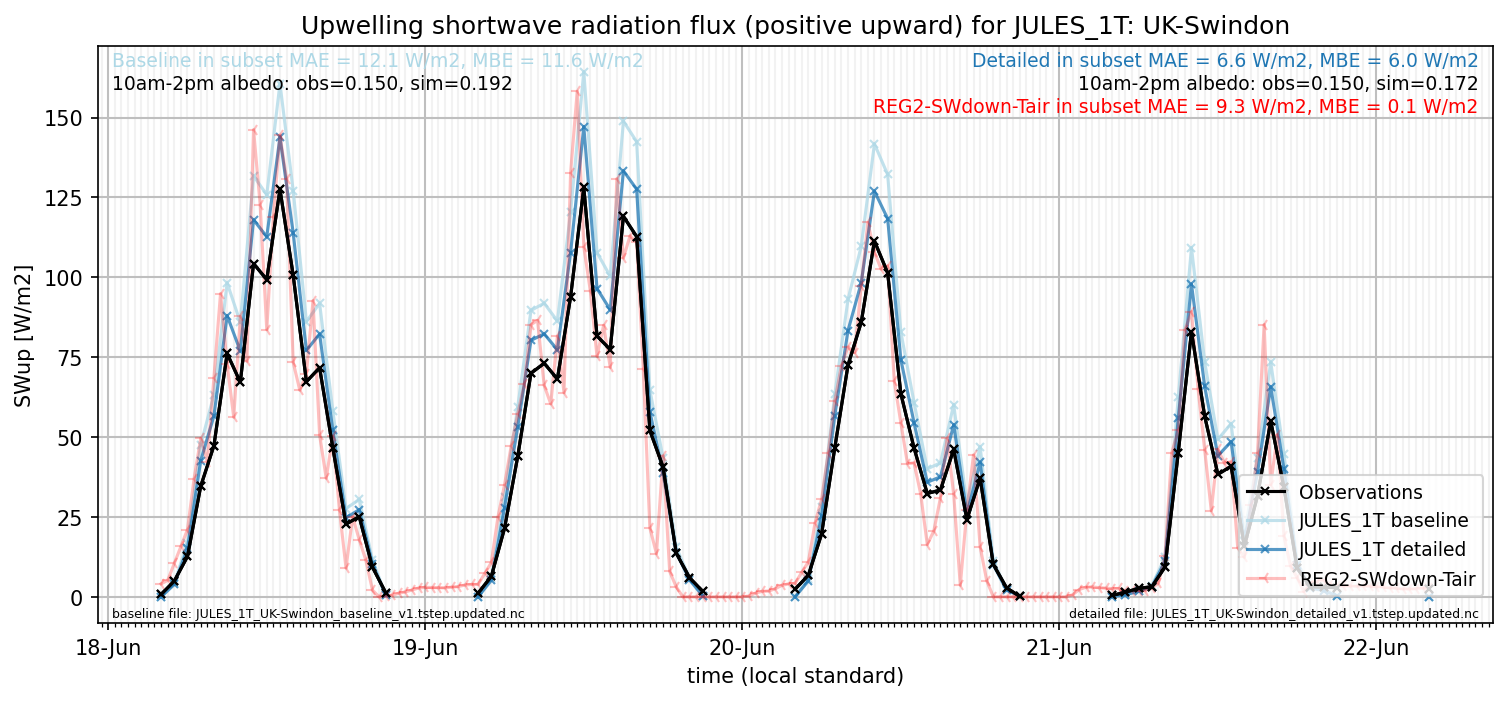

subset_SWup_v0-9

out of range: baseline

out of range: detailed

Link to variable definitions
