UK-Swindon: JULES_2T

NOTE: Results presented here are highly dependent on how models are configured in this experiment and may be subject to variable output formatting errors. Results are not intended to indicate the quality of any individual model, but to help participants better understand and improve modelling approaches in different urban environments.

Submitted metadata

• Baseline
• Detailed

Error metrics

flux	experiment	MAE	MBE	nSD	R	5th	95th	RMSE	cRMSE	AMBE	1-nSD	1-R	nSkewness	nKurtosis	Overlap
SWup	baseline	10.6026	10.2467	1.31437	0.993493	0.662524	28.1561	14.4532	0.340491	10.2467	0.314373	0.00650659	0.0954148	0.453774	0.126053
SWup	detailed	6.44624	5.96694	1.17727	0.993463	0.728905	15.4556	8.80691	0.216372	5.96694	0.177272	0.00653691	0.0953359	0.454297	0.110402
LWup	baseline	6.01813	5.33861	1.13686	0.990994	0.964748	17.4342	8.69151	0.198011	5.33861	0.136858	0.00900641	0.387919	1.67893	0.0592224
LWup	detailed	7.42038	6.76214	1.19417	0.988321	0.925778	24.6221	11.1547	0.256116	6.76214	0.194168	0.0116791	0.581396	2.97479	0.0720927
Qle	baseline	10.7472	1.64109	1.02268	0.903425	3.52385	8.32758	18.0306	0.445023	1.64109	0.0226795	0.0965754	0.0958242	0.416727	0.163103
Qle	detailed	10.6619	0.549799	0.998279	0.90223	3.40123	5.10821	17.835	0.441821	0.549799	0.00172025	0.0977695	0.0925053	0.405555	0.169984
Qh	baseline	16.9659	0.80307	0.759152	0.931738	12.331	36.413	24.564	0.402057	0.80307	0.240848	0.0682617	0.0217678	0.0268923	0.219715
Qh	detailed	14.9744	2.53764	0.816625	0.943742	11.8737	25.7767	21.7814	0.354273	2.53764	0.183375	0.0562578	0.0107271	0.00337737	0.202871
Qtau	baseline	0.0814234	-0.0290044	0.862859	0.806767	0.00442865	0.12003	0.156225	0.593527	0.0290044	0.137142	0.193233	0.301825	2.09902	0.0697784
Qtau	detailed	0.0840415	-0.0459538	0.801096	0.8082	0.00155274	0.167018	0.159106	0.588951	0.0459538	0.198905	0.1918	0.301967	2.10411	0.0862482

• MAE: mean absolute error (close to 0 is better)
• MBE: mean bias error (close to 0 is better)
• NSD: ratio of model to obs standard deviation (close to 1 is better)
• R: Pearson’s correlation (close to 1 is better)
• all others: closer to 0 is better

Link to variable definitions

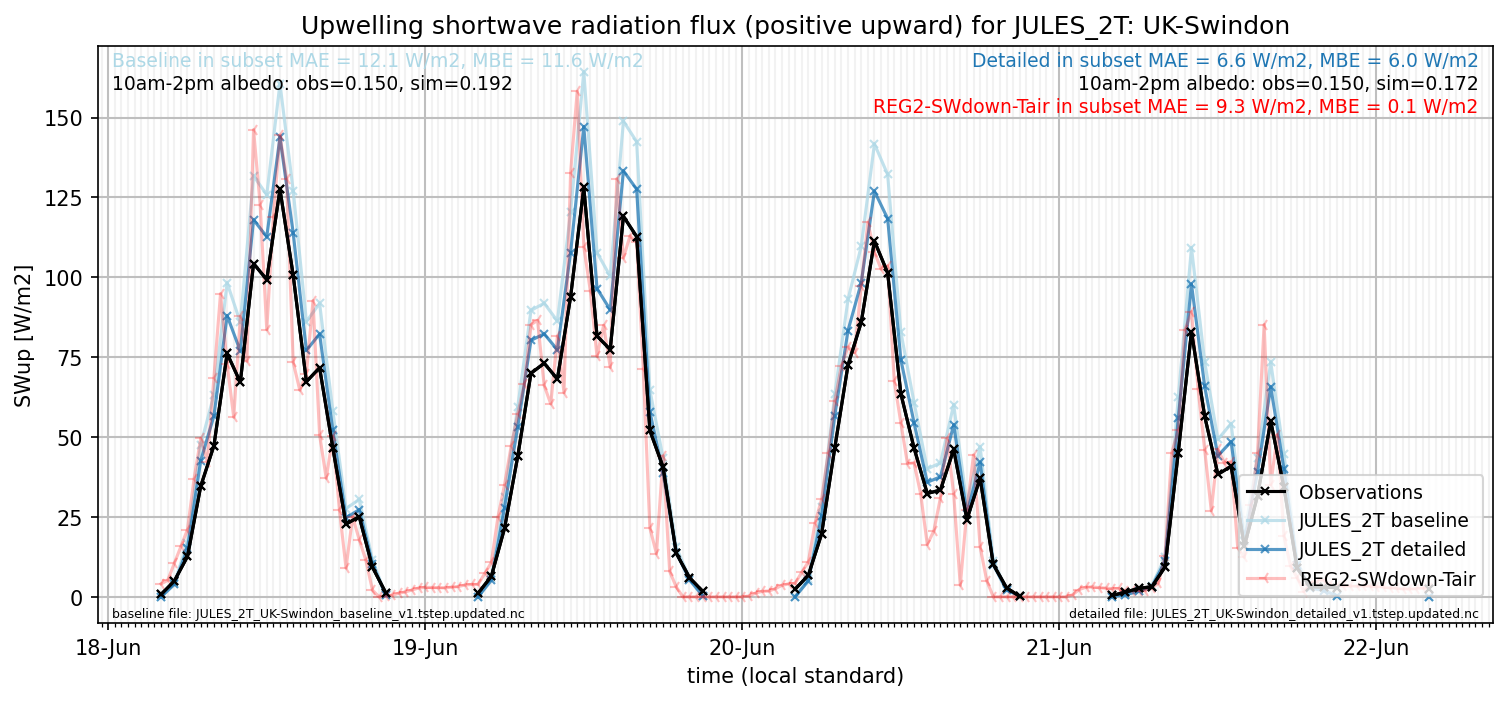

subset_SWup_v0-9

out of range: baseline

out of range: detailed

Link to variable definitions
