UK-Swindon: TEB-CNRM

NOTE: Results presented here are highly dependent on how models are configured in this experiment and may be subject to variable output formatting errors. Results are not intended to indicate the quality of any individual model, but to help participants better understand and improve modelling approaches in different urban environments.

Submitted metadata

• Baseline
• Detailed

Error metrics

flux	experiment	MAE	MBE	nSD	R	5th	95th	RMSE	cRMSE	AMBE	1-nSD	1-R	nSkewness	nKurtosis	Overlap
SWup	baseline	6.1522	-5.01773	0.837663	0.978387	1.315	17.1417	9.01371	0.250126	5.01773	0.162337	0.0216134	0.143739	0.558557	0.149251
SWup	detailed	3.5413	-1.39424	0.956953	0.9837	1.315	6.28179	5.61812	0.181796	1.39424	0.0430466	0.0163	0.154281	0.69567	0.140622
LWup	baseline	7.86931	6.60829	1.24565	0.986205	0.256585	29.1715	12.5421	0.307752	6.60829	0.24565	0.0137946	0.814804	5.21482	0.0688289
LWup	detailed	6.29733	5.91902	1.09212	0.993909	3.48223	13.497	7.82171	0.147616	5.91902	0.0921185	0.00609112	0.27688	0.83608	0.0756384
Qle	baseline	12.5519	-2.98957	0.981143	0.871073	2.90388	0.684202	20.5274	0.503337	2.98957	0.0188567	0.128927	0.145949	0.293544	0.167963
Qle	detailed	13.1972	2.71967	1.10952	0.883506	2.90979	16.4124	21.1602	0.520096	2.71967	0.109522	0.116494	0.0333141	0.0598247	0.119128
Qh	baseline	28.4279	26.5258	1.07853	0.949915	27.9183	35.0895	33.6073	0.337941	26.5258	0.0785296	0.0500853	0.0889865	0.191286	0.413113
Qh	detailed	21.0234	11.9518	0.903054	0.924278	14.3707	6.82163	26.2266	0.38231	11.9518	0.0969459	0.0757222	0.00398578	0.147398	0.298308
Qtau	baseline	0.0822215	-0.0289195	0.831102	0.812497	0.0114614	0.131414	0.153601	0.583262	0.0289195	0.168899	0.187503	0.17175	1.00671	0.0985573
Qtau	detailed	0.102916	0.0424155	1.06729	0.81176	0.0196105	0.0540171	0.170237	0.637448	0.0424155	0.0672844	0.18824	0.114731	0.753368	0.0843781

• MAE: mean absolute error (close to 0 is better)
• MBE: mean bias error (close to 0 is better)
• NSD: ratio of model to obs standard deviation (close to 1 is better)
• R: Pearson’s correlation (close to 1 is better)
• all others: closer to 0 is better

Link to variable definitions

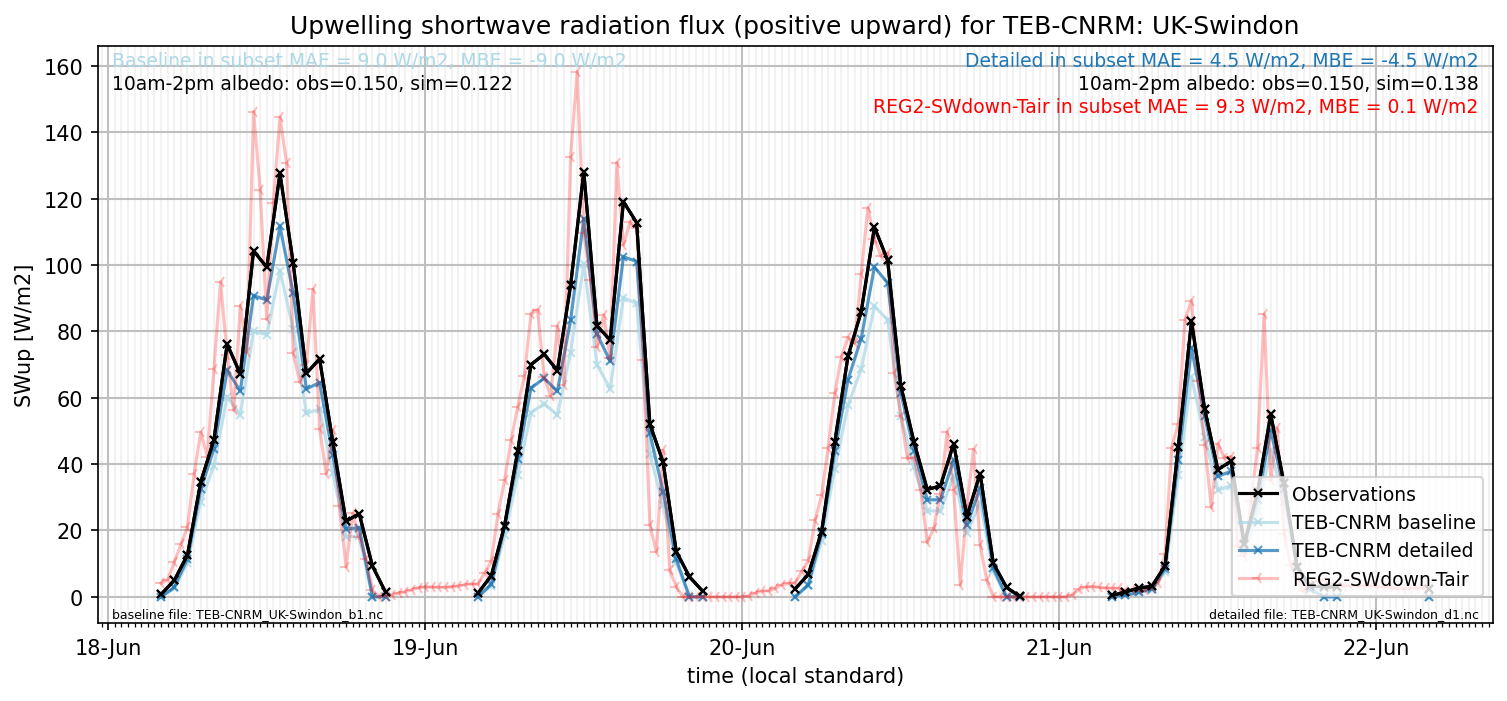

subset_SWup_v0-9

out of range: baseline

out of range: detailed

Link to variable definitions
