UK-Swindon: TEB-SPARTCS

NOTE: Results presented here are highly dependent on how models are configured in this experiment and may be subject to variable output formatting errors. Results are not intended to indicate the quality of any individual model, but to help participants better understand and improve modelling approaches in different urban environments.

Submitted metadata

• Baseline
• Detailed

Error metrics

flux	experiment	MAE	MBE	nSD	R	5th	95th	RMSE	cRMSE	AMBE	1-nSD	1-R	nSkewness	nKurtosis	Overlap
SWup	baseline	6.10896	-5.22614	0.834507	0.982083	1.315	17.4195	8.86893	0.239357	5.22614	0.165493	0.0179171	0.138568	0.58904	0.14427
SWup	detailed	3.54964	-1.66905	0.948008	0.985207	1.315	6.95578	5.50858	0.175358	1.66905	0.0519917	0.0147927	0.151614	0.697479	0.141394
LWup	baseline	8.27668	7.18524	1.25626	0.985877	0.589766	30.4272	13.1525	0.318043	7.18524	0.256256	0.0141226	0.825393	5.43618	0.073317
LWup	detailed	7.23085	6.90963	1.10821	0.993516	3.33588	15.4088	8.89011	0.161494	6.90963	0.108203	0.00648433	0.288386	1.14114	0.0815861
Qle	baseline	12.563	-2.82799	0.98205	0.870541	2.89534	0.80121	20.5539	0.504573	2.82799	0.0179494	0.129459	0.135433	0.270054	0.166586
Qle	detailed	13.2157	2.83477	1.11157	0.884037	2.88328	16.6324	21.1658	0.519857	2.83477	0.111575	0.115963	0.0194654	0.0895886	0.1103
Qh	baseline	28.0331	26.0477	1.07739	0.949838	27.5689	34.2036	33.2242	0.337755	26.0477	0.0773949	0.050162	0.0875291	0.185179	0.409186
Qh	detailed	20.4538	11.22	0.90808	0.925588	13.4399	6.77881	25.7159	0.378937	11.22	0.0919196	0.0744118	0.000725956	0.12122	0.284955
Qtau	baseline	0.0822018	-0.0289768	0.831607	0.812521	0.0114014	0.131374	0.153607	0.583244	0.0289768	0.168394	0.187479	0.170937	1.00256	0.098082
Qtau	detailed	0.102625	0.0418759	1.06905	0.812039	0.018611	0.0542794	0.170164	0.637688	0.0418759	0.0690463	0.187961	0.112324	0.74467	0.0824929

• MAE: mean absolute error (close to 0 is better)
• MBE: mean bias error (close to 0 is better)
• NSD: ratio of model to obs standard deviation (close to 1 is better)
• R: Pearson’s correlation (close to 1 is better)
• all others: closer to 0 is better

Link to variable definitions

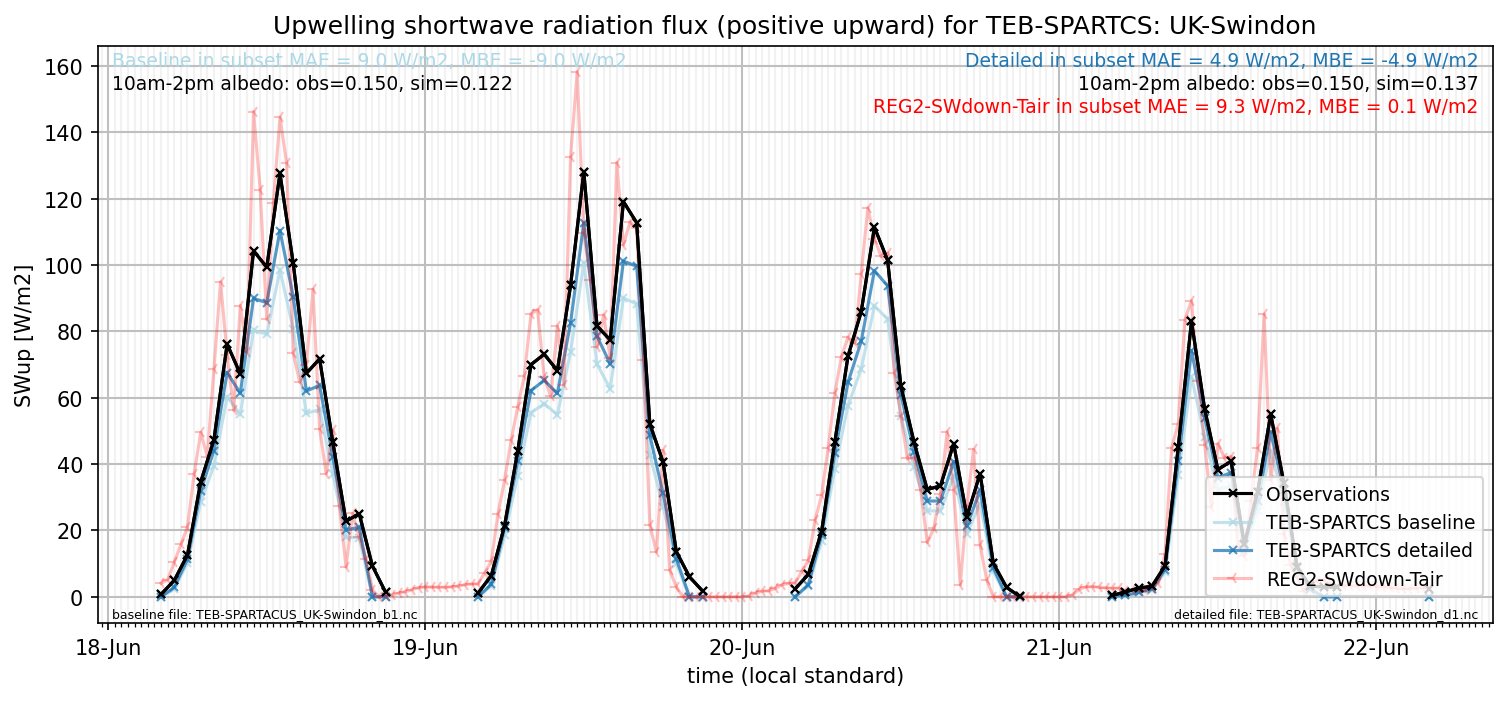

subset_SWup_v0-9

out of range: baseline

out of range: detailed

Link to variable definitions
