UK-Swindon: UCLEM

NOTE: Results presented here are highly dependent on how models are configured in this experiment and may be subject to variable output formatting errors. Results are not intended to indicate the quality of any individual model, but to help participants better understand and improve modelling approaches in different urban environments.

Submitted metadata

• Baseline
• Detailed

Error metrics

flux	experiment	MAE	MBE	nSD	R	5th	95th	RMSE	cRMSE	AMBE	1-nSD	1-R	nSkewness	nKurtosis	Overlap
SWup	baseline	4.33354	3.73918	1.09964	0.982254	0.7866	8.3122	7.60634	0.22126	3.73918	0.0996366	0.0177462	0.146086	0.756295	0.0989434
SWup	detailed	3.8991	-0.703124	0.948254	0.97022	0.8608	6.2399	7.31507	0.24322	0.703124	0.051746	0.0297801	0.164349	0.742727	0.0897476
LWup	baseline	13.5976	13.2618	1.26535	0.980605	4.6899	34.8209	17.8673	0.345675	13.2618	0.265345	0.0193948	0.542727	2.27298	0.132105
LWup	detailed	15.2686	14.8308	1.32389	0.97891	4.5431	40.7966	20.3179	0.400933	14.8308	0.32389	0.02109	0.67347	3.53598	0.140493
Qle	baseline	13.5452	-9.16004	0.878894	0.865118	1.5391	18.5404	22.2207	0.501757	9.16004	0.121106	0.134882	0.135322	0.759452	0.189488
Qle	detailed	13.3361	-8.60183	0.889642	0.866647	1.6276	18.0147	21.9108	0.499451	8.60183	0.110358	0.133353	0.137487	0.628876	0.190875
Qh	baseline	19.6097	12.8018	0.844046	0.934712	23.3306	13.2012	25.7978	0.366789	12.8018	0.155954	0.065288	0.0110376	0.0275705	0.313078
Qh	detailed	19.0898	13.4931	0.8819	0.941855	24.3522	6.0228	24.8288	0.341326	13.4931	0.118099	0.0581449	0.0322971	0.0423525	0.312783
Qtau	baseline	0.100526	0.0412538	1.07577	0.811138	0.0179719	0.0548617	0.171078	0.64194	0.0412538	0.0757702	0.188862	0.289107	1.91883	0.0888321
Qtau	detailed	0.0812516	-0.0281288	0.820061	0.809659	0.00767191	0.144038	0.154402	0.586992	0.0281288	0.17994	0.190341	0.278186	2.04942	0.0946109

• MAE: mean absolute error (close to 0 is better)
• MBE: mean bias error (close to 0 is better)
• NSD: ratio of model to obs standard deviation (close to 1 is better)
• R: Pearson’s correlation (close to 1 is better)
• all others: closer to 0 is better

Link to variable definitions

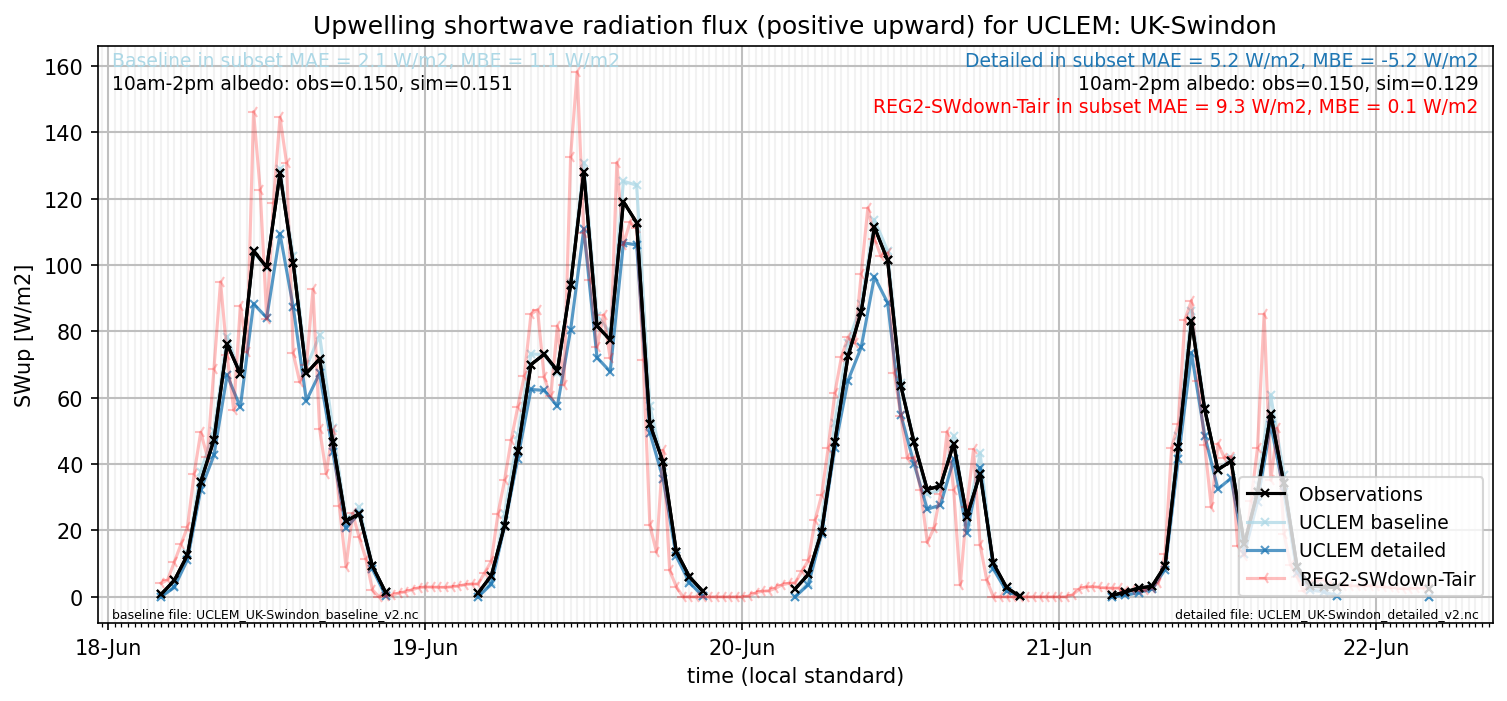

subset_SWup_v0-9

out of range: baseline

out of range: detailed
