US-Baltimore: TEB-SPARTCS

NOTE: Results presented here are highly dependent on how models are configured in this experiment and may be subject to variable output formatting errors. Results are not intended to indicate the quality of any individual model, but to help participants better understand and improve modelling approaches in different urban environments.

Submitted metadata

• Baseline
• Detailed

Error metrics

flux	experiment	MAE	MBE	nSD	R	5th	95th	RMSE	cRMSE	AMBE	1-nSD	1-R	nSkewness	nKurtosis	Overlap
SWup	baseline	7.28103	-2.51968	1.124	0.941604	1.863	3.10038	13.0866	0.382951	2.51968	0.124004	0.0583959	1.1163	3.56448	0.104309
SWup	detailed	8.57316	1.51432	1.20881	0.930918	1.863	7.66244	15.4638	0.458929	1.51432	0.208809	0.0690824	1.31411	5.01317	0.110998
LWup	baseline	14.7277	6.62729	1.30162	0.967083	11.7231	54.8775	24.1555	0.42032	6.62729	0.301622	0.0329174	9.67707	0.867921	0.081771
LWup	detailed	9.06646	2.51812	1.16351	0.986376	8.30805	24.4126	13.5949	0.241743	2.51812	0.163508	0.0136245	3.80667	0.347907	0.0708762
Qle	baseline	28.2354	-5.37923	0.742542	0.752181	14.7905	53.7167	47.9752	0.659028	5.37923	0.257459	0.247819	0.0111481	0.0898066	0.209409
Qle	detailed	33.1756	0.256391	0.984725	0.705647	11.4691	27.9819	55.0891	0.761543	0.256391	0.0152752	0.294353	0.318959	1.48312	0.169653
Qh	baseline	39.8527	20.4413	0.973895	0.828112	23.8939	13.758	55.281	0.57921	20.4413	0.0261066	0.171888	0.0476552	0.275055	0.281889
Qh	detailed	36.6163	2.25782	0.926645	0.791593	10.5207	7.67205	55.5399	0.625796	2.25782	0.0733559	0.208407	0.0454658	0.262593	0.138587
SoilTemp	baseline	2.83041	-1.01184	1.11862	0.94776	2.70617	1.71879	3.53231	0.361862	1.01184	0.118619	0.0522397	0.209131	0.386426	0.127658
SoilTemp	detailed	3.21377	-1.98623	1.12678	0.950297	3.41034	0.52386	3.89205	0.357885	1.98623	0.126774	0.0497031	0.0693161	0.198439	0.148979
Qtau	baseline	0.11049	0.0292531	0.883237	0.866733	0.0332391	0.0497585	0.154063	0.499045	0.0292531	0.116764	0.133267	0.0627388	0.139939	0.208521
Qtau	detailed	0.146605	0.104287	1.14048	0.856554	0.00900542	0.161721	0.206755	0.589006	0.104287	0.140475	0.143446	0.14115	0.213915	0.199888

• MAE: mean absolute error (close to 0 is better)
• MBE: mean bias error (close to 0 is better)
• NSD: ratio of model to obs standard deviation (close to 1 is better)
• R: Pearson’s correlation (close to 1 is better)
• all others: closer to 0 is better

Link to variable definitions

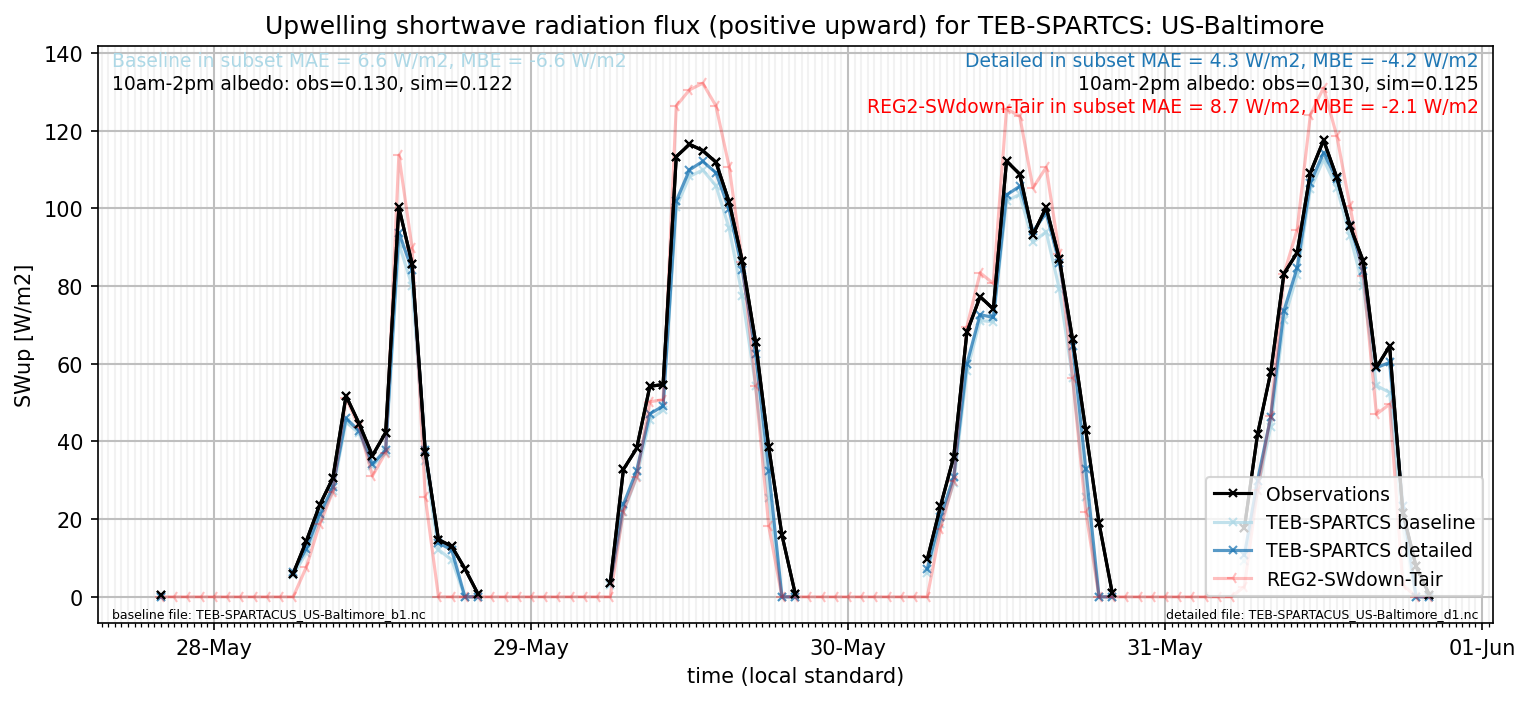

subset_SWup_v0-9

out of range: baseline

out of range: detailed
