US-Minneapolis1: TEB-CNRM

NOTE: Results presented here are highly dependent on how models are configured in this experiment and may be subject to variable output formatting errors. Results are not intended to indicate the quality of any individual model, but to help participants better understand and improve modelling approaches in different urban environments.

Submitted metadata

• Baseline
• Detailed

Error metrics

flux	experiment	MAE	MBE	nSD	R	5th	95th	RMSE	cRMSE	AMBE	1-nSD	1-R	nSkewness	nKurtosis	Overlap
SWup	baseline	46.108	-43.5689	0.512538	0.880589	2.3574	156.87	72.6257	0.600021	43.5689	0.487463	0.119411	0.373903	0.709372	0.212606
SWup	detailed	38.7915	-34.4434	0.613932	0.91462	2.33442	120.156	59.7262	0.503869	34.4434	0.386069	0.0853802	0.284329	0.56896	0.178443
LWup	baseline	10.9076	8.96481	1.06136	0.990761	8.96321	21.6891	14.257	0.1529	8.96481	0.0613624	0.00923948	0.434398	0.0748606	0.0874987
LWup	detailed	8.30724	0.30463	0.967743	0.987107	6.22576	6.98565	11.6938	0.161231	0.30463	0.0322584	0.0128934	0.229014	0.467563	0.0649852
Qle	baseline	19.2373	-0.662676	0.893861	0.738658	4.33927	10.1586	38.424	0.691717	0.662676	0.106139	0.261342	0.0093582	0.205298	0.16227
Qle	detailed	24.3767	2.80539	1.20064	0.608663	4.02963	6.28418	55.053	0.989935	2.80539	0.200644	0.391337	0.867907	3.01815	0.0594694
Qh	baseline	49.7656	44.0703	1.13227	0.876045	27.8043	67.1128	63.616	0.546072	44.0703	0.132265	0.123955	0.00867145	0.0740572	0.327345
Qh	detailed	36.003	20.4327	1.11966	0.836778	18.3333	35.6297	55.6639	0.616297	20.4327	0.119654	0.163222	0.141724	1.46968	0.253672
Qg	baseline	33.7732	-0.934448	1.62394	0.771996	38.8693	42.3267	47.4698	1.06294	0.934448	0.623932	0.228004	0.504778	0.916722	0.329988
Qg	detailed	35.7538	-0.412386	1.65583	0.705872	28.8906	47.5494	52.9112	1.18497	0.412386	0.655817	0.294128	0.0528453	0.0193444	0.274483
Qtau	baseline	0.127718	0.0996199	1.15897	0.869783	0.0505772	0.187632	0.165847	0.571934	0.0996199	0.158973	0.130217	0.0771	0.266493	0.187704
Qtau	detailed	0.163268	0.146995	1.4052	0.881604	0.0282525	0.34501	0.219809	0.70493	0.146995	0.405196	0.118396	0.0488087	0.17899	0.212932
SoilTemp	baseline	4.5199	-2.50336	1.27581	0.932435	10.6256	2.37582	5.82725	0.498468	2.50336	0.27581	0.0675654	5.77781	0.474265	0.233985
SoilTemp	detailed	4.99921	-3.00203	1.30189	0.930186	10.9541	2.86981	6.27909	0.522419	3.00203	0.301897	0.0698143	3.97058	0.432369	0.231263

• MAE: mean absolute error (close to 0 is better)
• MBE: mean bias error (close to 0 is better)
• NSD: ratio of model to obs standard deviation (close to 1 is better)
• R: Pearson’s correlation (close to 1 is better)
• all others: closer to 0 is better

Link to variable definitions

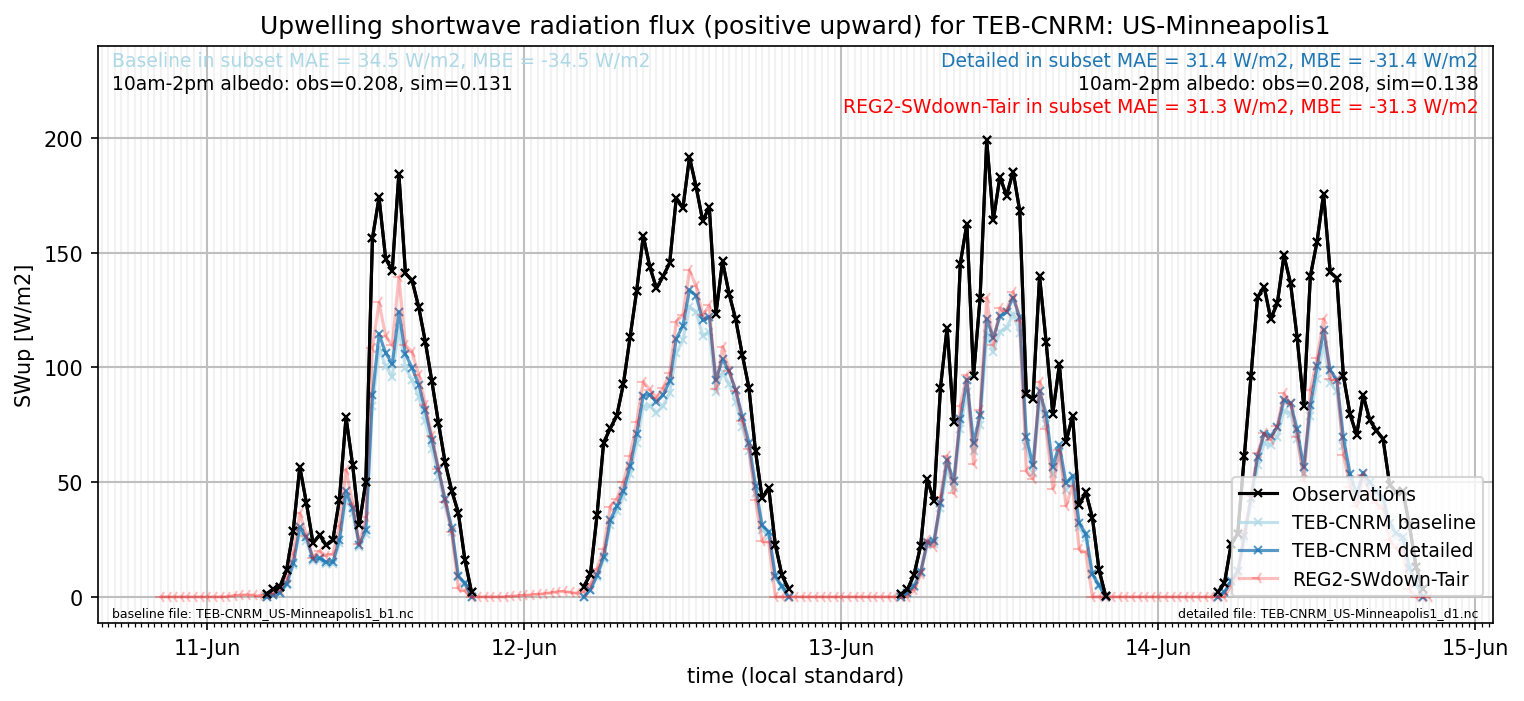

subset_SWup_v0-9

out of range: baseline

out of range: detailed

• TEB-CNRM Qh max value of 703.7618 is greater than expected 600.0 [W/m2]
• TEB-CNRM Qh min value of -629.4464 is less than expected -600.0 [W/m2]
• TEB-CNRM Qle max value of 1063.0913 is greater than expected 700.0 [W/m2]

Link to variable definitions
