US-Minneapolis1: TEB-SPARTCS

NOTE: Results presented here are highly dependent on how models are configured in this experiment and may be subject to variable output formatting errors. Results are not intended to indicate the quality of any individual model, but to help participants better understand and improve modelling approaches in different urban environments.

Submitted metadata

• Baseline
• Detailed

Error metrics

flux	experiment	MAE	MBE	nSD	R	5th	95th	RMSE	cRMSE	AMBE	1-nSD	1-R	nSkewness	nKurtosis	Overlap
SWup	baseline	47.4187	-47.012	0.46998	0.922977	2.36649	176.249	74.3203	0.594408	47.012	0.530021	0.0770234	0.427022	0.751977	0.231371
SWup	detailed	40.6044	-39.8514	0.551649	0.956025	2.31085	147.973	62.6757	0.499536	39.8514	0.448352	0.0439747	0.256687	0.43371	0.213137
LWup	baseline	11.2013	8.92508	1.09591	0.992251	0.906934	23.7954	14.7406	0.161808	8.92508	0.0959058	0.00774863	0.0884135	0.0907469	0.0788239
LWup	detailed	10.5806	5.9627	1.07235	0.988467	2.17806	10.7857	13.896	0.17312	5.9627	0.0723497	0.0115334	0.361789	0.40634	0.0850596
Qle	baseline	19.6397	0.253535	0.885924	0.735119	4.35262	10.2393	38.5742	0.694509	0.253535	0.114076	0.264881	0.0119884	0.206565	0.119736
Qle	detailed	26.9175	3.00241	1.26285	0.592174	9.14141	2.28914	58.306	1.0484	3.00241	0.262853	0.407826	0.777526	2.47986	0.110875
Qh	baseline	51.6922	46.6906	1.16354	0.879839	27.1463	74.1728	65.8978	0.553505	46.6906	0.163536	0.120161	0.0278777	0.00700393	0.325038
Qh	detailed	34.1525	18.4504	1.06479	0.848725	19.502	20.7869	51.4194	0.571269	18.4504	0.064787	0.151275	0.0263084	1.04085	0.24836
Qg	baseline	34.2162	-1.23517	1.63564	0.767396	38.9316	42.9557	48.2083	1.07933	1.23517	0.635627	0.232604	0.48858	0.898157	0.330288
Qg	detailed	35.938	-0.082526	1.6746	0.709474	27.6831	54.1691	53.3589	1.19503	0.082526	0.674584	0.290526	0.0394906	0.0504265	0.2782
Qtau	baseline	0.128625	0.100641	1.16384	0.868713	0.049856	0.188999	0.16732	0.576574	0.100641	0.163838	0.131287	0.0827151	0.276962	0.185812
Qtau	detailed	0.152536	0.130401	1.43761	0.882291	0.0138865	0.347096	0.213277	0.72797	0.130401	0.437607	0.117709	0.0947901	0.277285	0.179641
SoilTemp	baseline	4.5381	-2.50814	1.27341	0.931493	10.5508	2.37887	5.83656	0.499229	2.50814	0.273415	0.0685072	5.71202	0.476226	0.231675
SoilTemp	detailed	5.06097	-3.26688	1.28382	0.929215	10.9319	2.10373	6.31697	0.512155	3.26688	0.283821	0.0707851	4.01789	0.437127	0.234318

• MAE: mean absolute error (close to 0 is better)
• MBE: mean bias error (close to 0 is better)
• NSD: ratio of model to obs standard deviation (close to 1 is better)
• R: Pearson’s correlation (close to 1 is better)
• all others: closer to 0 is better

Link to variable definitions

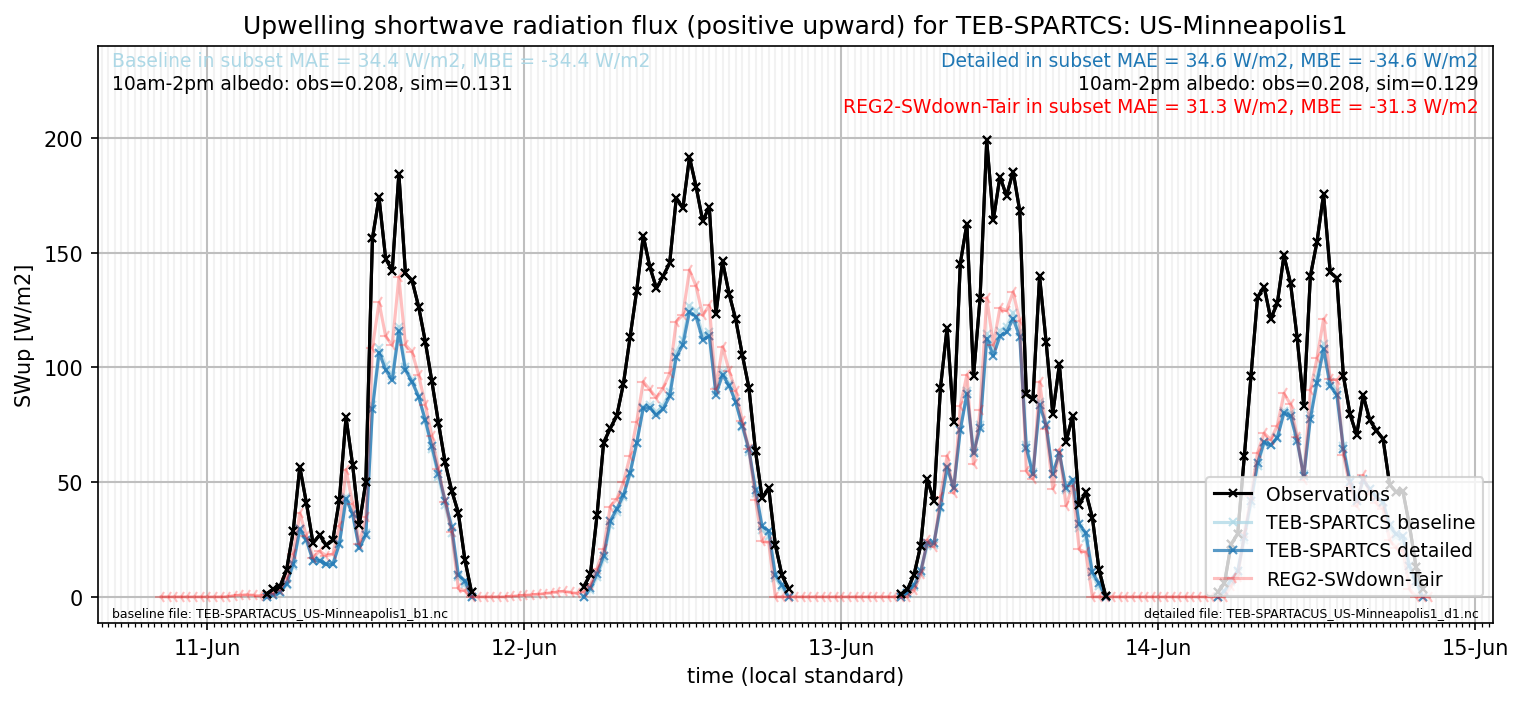

subset_SWup_v0-9

out of range: baseline

out of range: detailed

• TEB-SPARTCS Qh max value of 681.7767 is greater than expected 600.0 [W/m2]
• TEB-SPARTCS Qh min value of -646.5537 is less than expected -600.0 [W/m2]
• TEB-SPARTCS Qle max value of 1075.3821 is greater than expected 700.0 [W/m2]

Link to variable definitions
