US-Minneapolis2: TEB-CNRM

NOTE: Results presented here are highly dependent on how models are configured in this experiment and may be subject to variable output formatting errors. Results are not intended to indicate the quality of any individual model, but to help participants better understand and improve modelling approaches in different urban environments.

Submitted metadata

• Baseline
• Detailed

Error metrics

flux	experiment	MAE	MBE	nSD	R	5th	95th	RMSE	cRMSE	AMBE	1-nSD	1-R	nSkewness	nKurtosis	Overlap
SWup	baseline	43.3129	-42.5484	0.487686	0.836114	2.35767	164.285	75.9656	0.649858	42.5484	0.512314	0.163886	0.623439	1.09073	0.181725
SWup	detailed	39.6217	-38.1119	0.522816	0.838221	2.33825	153.848	71.9323	0.629973	38.1119	0.477184	0.161779	0.630246	1.09268	0.153813
LWup	baseline	9.35156	7.37694	0.997567	0.991433	12.9341	9.4888	12.0123	0.130757	7.37694	0.00243409	0.00856653	0.29332	0.111836	0.0750637
LWup	detailed	7.85806	1.60194	0.949096	0.989747	10.3584	5.31291	10.8857	0.148506	1.60194	0.0509049	0.0102533	0.00443421	0.288277	0.0644998
Qle	baseline	28.1003	-0.629127	1.00812	0.759907	3.39643	6.15191	53.6457	0.695811	0.629127	0.00812411	0.240093	0.021401	0.108061	0.130979
Qle	detailed	33.4518	1.62816	1.25632	0.685524	2.71748	20.2248	71.3393	0.925129	1.62816	0.256319	0.314476	0.518754	1.76764	0.217957
Qh	baseline	40.3288	29.3082	1.39807	0.810536	9.01391	87.0588	60.2099	0.829594	29.3082	0.398068	0.189464	0.270602	0.151778	0.194847
Qh	detailed	42.5853	20.8059	1.63709	0.738491	16.3771	66.5675	74.2015	1.12344	20.8059	0.637094	0.261509	0.388785	1.91325	0.234732
Qg	baseline	33.917	-0.642849	1.58193	0.729691	39.4873	33.3865	48.7912	1.09264	0.642849	0.581921	0.270309	0.549901	0.876855	0.320472
Qg	detailed	41.7503	0.373665	1.75993	0.536908	32.7856	45.453	66.3414	1.48577	0.373665	0.759918	0.463092	0.0395304	0.504126	0.271057
Qtau	baseline	0.0943351	-0.0240332	0.748546	0.859368	0.0181745	0.167603	0.143243	0.523228	0.0240332	0.251455	0.140632	0.128789	0.270651	0.143411
Qtau	detailed	0.121721	0.0822214	1.23791	0.89322	0.00678858	0.181277	0.173607	0.566539	0.0822214	0.237904	0.10678	0.0451738	0.0835019	0.152745
SoilTemp	baseline	4.80614	-2.70976	1.27017	0.92564	10.3949	2.64784	6.04387	0.511753	2.70976	0.270172	0.07436	4.41773	0.499925	0.240176
SoilTemp	detailed	5.29813	-3.07736	1.29948	0.917006	10.9599	2.9412	6.59569	0.55262	3.07736	0.299486	0.0829939	3.66076	0.46605	0.240334

• MAE: mean absolute error (close to 0 is better)
• MBE: mean bias error (close to 0 is better)
• NSD: ratio of model to obs standard deviation (close to 1 is better)
• R: Pearson’s correlation (close to 1 is better)
• all others: closer to 0 is better

Link to variable definitions

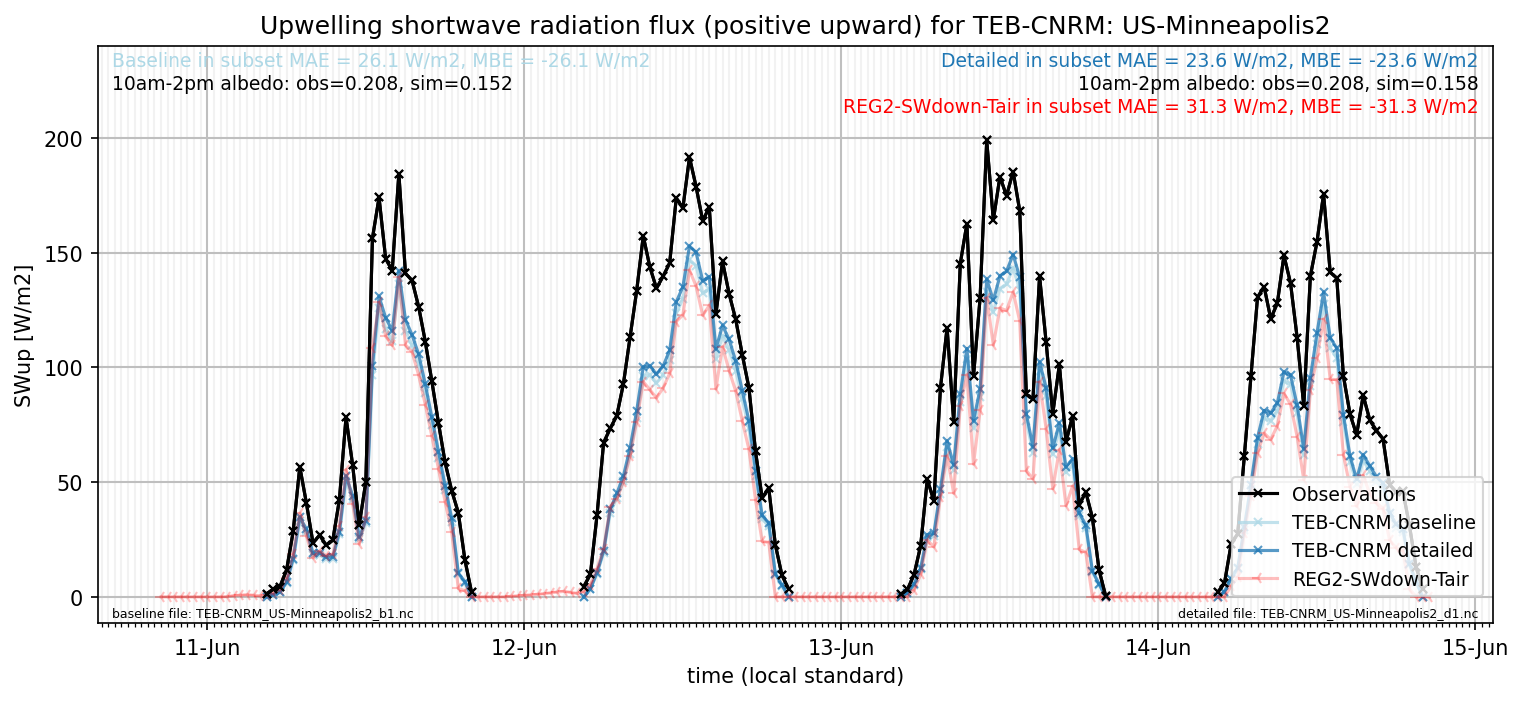

subset_SWup_v0-9

out of range: baseline

out of range: detailed

• TEB-CNRM Qh max value of 909.4695 is greater than expected 600.0 [W/m2]
• TEB-CNRM Qh min value of -765.7489 is less than expected -600.0 [W/m2]
• TEB-CNRM Qle max value of 1235.4586 is greater than expected 700.0 [W/m2]

Link to variable definitions
