US-Minneapolis2: TEB-SPARTCS

NOTE: Results presented here are highly dependent on how models are configured in this experiment and may be subject to variable output formatting errors. Results are not intended to indicate the quality of any individual model, but to help participants better understand and improve modelling approaches in different urban environments.

Submitted metadata

• Baseline
• Detailed

Error metrics

flux	experiment	MAE	MBE	nSD	R	5th	95th	RMSE	cRMSE	AMBE	1-nSD	1-R	nSkewness	nKurtosis	Overlap
SWup	baseline	44.3744	-44.204	0.470548	0.845196	2.35874	168.193	77.1297	0.65269	44.204	0.529452	0.154804	0.638521	1.1057	0.192475
SWup	detailed	41.37	-41.0638	0.492525	0.855734	2.31168	162.534	73.7156	0.632171	41.0638	0.507476	0.144266	0.644243	1.09866	0.175033
LWup	baseline	8.88143	7.26445	1.0118	0.992504	9.29175	10.1104	11.5432	0.123727	7.26445	0.0118005	0.00749612	0.121456	0.119562	0.0670086
LWup	detailed	8.29758	4.83491	1.00172	0.990801	7.41369	4.22944	10.967	0.135769	4.83491	0.0017221	0.00919925	0.0342931	0.285717	0.0655813
Qle	baseline	28.3935	-0.152805	1.00739	0.757452	3.45947	5.8624	53.8955	0.699096	0.152805	0.00738844	0.242548	0.0172482	0.116945	0.126104
Qle	detailed	33.79	0.940209	1.29204	0.698228	7.22477	27.9993	71.7105	0.930105	0.940209	0.292044	0.301772	0.542685	1.81961	0.179239
Qh	baseline	40.6675	30.1282	1.40591	0.815494	8.95547	89.1173	60.4584	0.826776	30.1282	0.405908	0.184506	0.244761	0.204467	0.199614
Qh	detailed	43.1976	21.2225	1.67695	0.715911	3.67958	78.6037	78.2436	1.18788	21.2225	0.676949	0.284089	0.0915803	2.01406	0.219158
Qg	baseline	34.2316	-0.653509	1.59215	0.726304	39.4505	34.0509	49.3663	1.10552	0.653509	0.592142	0.273696	0.536577	0.859143	0.320818
Qg	detailed	41.363	-0.383088	1.74183	0.525712	32.0126	43.437	66.267	1.4841	0.383088	0.741814	0.474288	0.00175995	0.623008	0.265942
Qtau	baseline	0.0948884	-0.0228976	0.749294	0.857765	0.0184144	0.165991	0.143626	0.525362	0.0228976	0.250707	0.142235	0.133327	0.277644	0.144293
Qtau	detailed	0.119184	0.0697358	1.22353	0.88567	0.00364163	0.167232	0.169943	0.574225	0.0697358	0.223525	0.11433	0.10238	0.208733	0.123525
SoilTemp	baseline	4.8094	-2.7061	1.26908	0.925253	10.3632	2.63825	6.0444	0.511982	2.7061	0.269085	0.0747474	4.39667	0.500001	0.23931
SoilTemp	detailed	5.38269	-3.30141	1.28462	0.914518	10.9517	2.33921	6.6635	0.548299	3.30141	0.284621	0.0854824	3.69291	0.470558	0.238076

• MAE: mean absolute error (close to 0 is better)
• MBE: mean bias error (close to 0 is better)
• NSD: ratio of model to obs standard deviation (close to 1 is better)
• R: Pearson’s correlation (close to 1 is better)
• all others: closer to 0 is better

Link to variable definitions

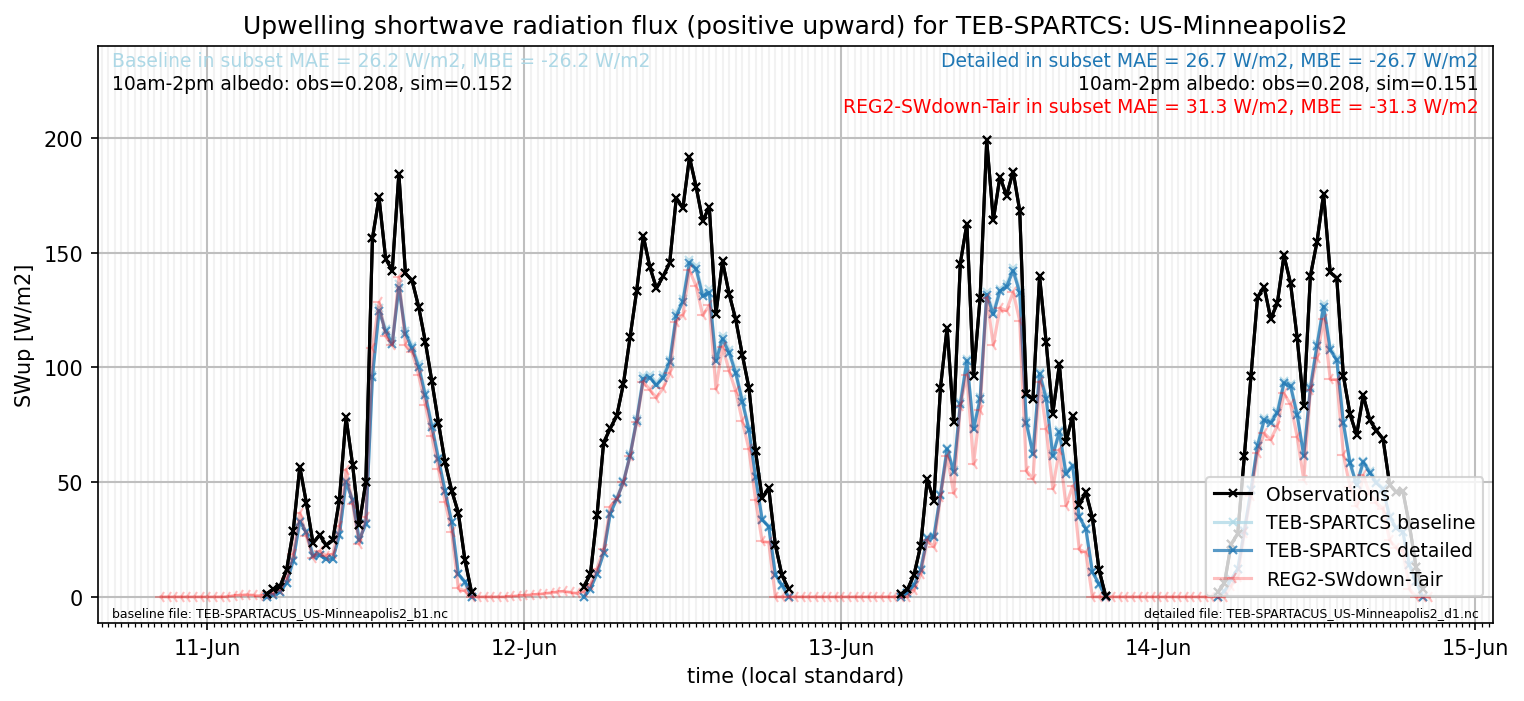

subset_SWup_v0-9

out of range: baseline

out of range: detailed

• TEB-SPARTCS Qh max value of 880.4586 is greater than expected 600.0 [W/m2]
• TEB-SPARTCS Qh min value of -864.5627 is less than expected -600.0 [W/m2]
• TEB-SPARTCS Qle max value of 1086.8230 is greater than expected 700.0 [W/m2]
