US-WestPhoenix: CLMU5

NOTE: Results presented here are highly dependent on how models are configured in this experiment and may be subject to variable output formatting errors. Results are not intended to indicate the quality of any individual model, but to help participants better understand and improve modelling approaches in different urban environments.

Submitted metadata

• Baseline
• Detailed

Error metrics

flux	experiment	MAE	MBE	nSD	R	5th	95th	RMSE	cRMSE	AMBE	1-nSD	1-R	nSkewness	nKurtosis	Overlap
SWup	baseline	35.6231	-35.6231	0.572339	0.995305	4.17595	72.6844	42.0278	0.433899	35.6231	0.427662	0.00469462	1.17852	0.0246503	0.15807
SWup	detailed	4.37316	-3.27767	0.994977	0.995401	2.82104	3.23685	5.915	0.0958003	3.27767	0.00502361	0.00459933	0.0737112	0.00258093	0.082997
LWup	baseline	14.1017	13.9432	1.12873	0.991996	7.29111	43.0648	20.1	0.186122	13.9432	0.128734	0.00800432	0.576117	0.665974	0.0609646
LWup	detailed	11.2651	11.0264	1.03666	0.995906	10.655	21.174	13.4564	0.0991603	11.0264	0.0366571	0.00409447	0.325667	0.392326	0.0704366
Qle	baseline	18.4025	-13.069	0.644307	0.329965	3.81077	36.1092	30.0394	0.994954	13.069	0.355693	0.670035	1.36128	2.59111	0.607453
Qle	detailed	18.2425	-12.9349	0.631121	0.336005	3.81077	35.5209	29.7867	0.987012	12.9349	0.368878	0.663995	1.2542	2.2436	0.646824
Qh	baseline	35.3292	29.7696	1.34531	0.954156	5.75613	103.81	53.825	0.492533	29.7696	0.345315	0.0458436	0.0387283	0.24172	0.196469
Qh	detailed	26.4959	16.6751	1.04182	0.941305	11.6427	32.0173	36.1431	0.352203	16.6751	0.0418213	0.0586945	0.0174452	0.0907461	0.316618
Qtau	baseline	0.0565338	0.0334473	1.27126	0.846391	0.00296141	0.0926423	0.081898	0.681275	0.0334473	0.271261	0.153609	0.153812	0.345172	0.182874
Qtau	detailed	0.0421441	-0.0167143	0.713071	0.836199	0.00318753	0.080365	0.0639018	0.562078	0.0167143	0.28693	0.163801	0.156753	0.358393	0.217981
SoilTemp	baseline	2.45135	0.548321	0.952042	0.974086	2.37531	1.2218	3.05175	0.227251	0.548321	0.0479578	0.0259143	3.99704	0.398274	0.0850462
SoilTemp	detailed	2.25351	0.523307	0.927198	0.98011	2.49359	0.0227951	2.76326	0.205388	0.523307	0.072802	0.01989	2.47923	0.293766	0.0768475

• MAE: mean absolute error (close to 0 is better)
• MBE: mean bias error (close to 0 is better)
• NSD: ratio of model to obs standard deviation (close to 1 is better)
• R: Pearson’s correlation (close to 1 is better)
• all others: closer to 0 is better

Link to variable definitions

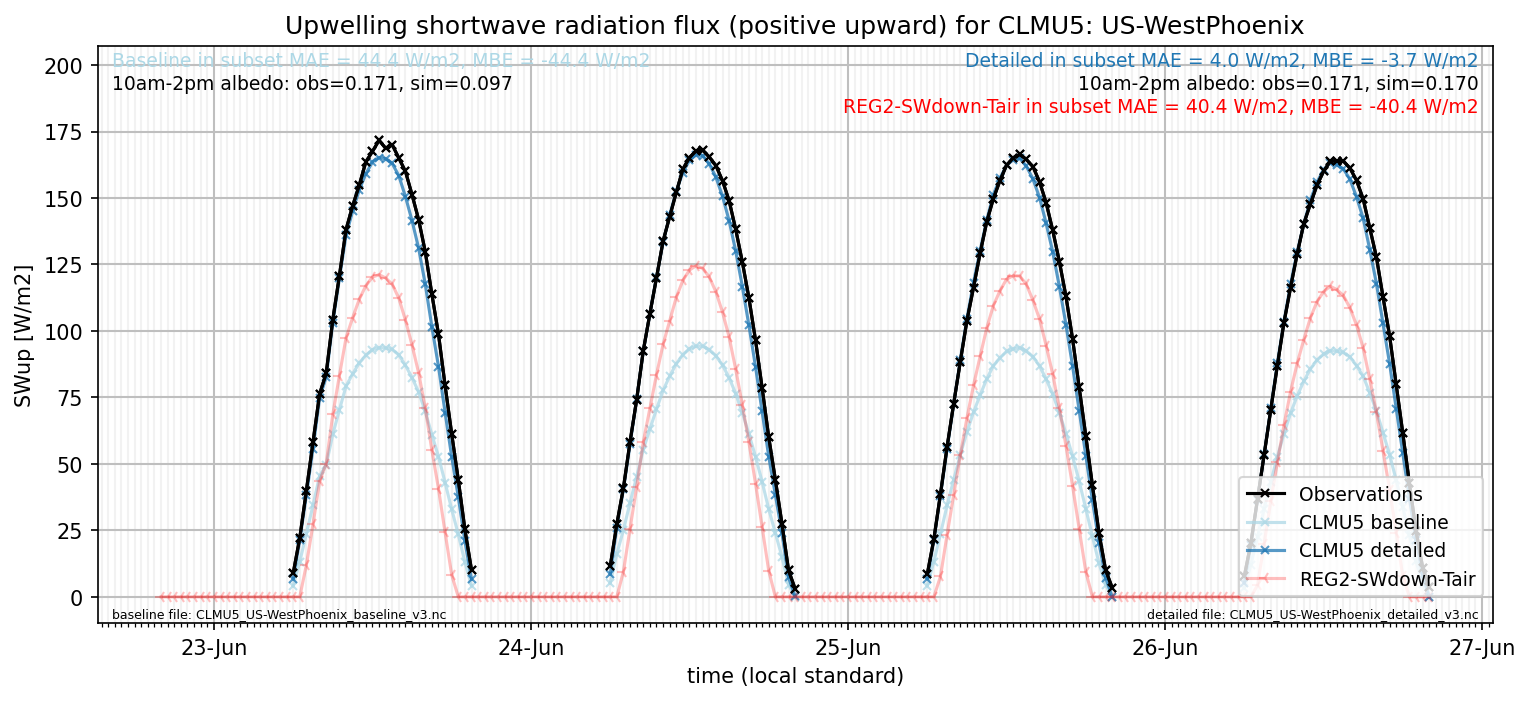

subset_SWup_v0-9

out of range: baseline

• CLMU5 SoilTemp max value of 338.0266 is greater than expected 333.0 [K]

out of range: detailed

• CLMU5 SoilTemp max value of 335.8554 is greater than expected 333.0 [K]

Link to variable definitions
