US-WestPhoenix: JULES_1T

NOTE: Results presented here are highly dependent on how models are configured in this experiment and may be subject to variable output formatting errors. Results are not intended to indicate the quality of any individual model, but to help participants better understand and improve modelling approaches in different urban environments.

Submitted metadata

• Baseline
• Detailed

Error metrics

flux	experiment	MAE	MBE	nSD	R	5th	95th	RMSE	cRMSE	AMBE	1-nSD	1-R	nSkewness	nKurtosis	Overlap
SWup	baseline	4.62673	1.18845	1.05568	0.995295	2.64511	6.6698	5.98692	0.114166	1.18845	0.0556795	0.00470489	0.0701855	0.00631573	0.094012
SWup	detailed	4.0134	-0.604549	1.03319	0.995295	2.72344	2.99103	5.3812	0.104036	0.604549	0.0331881	0.00470489	0.0701853	0.0063157	0.0802833
LWup	baseline	18.1748	17.25	1.19674	0.991541	4.78409	55.3539	25.5785	0.242804	17.25	0.196745	0.00845868	0.549391	0.529683	0.0567762
LWup	detailed	20.2421	19.2058	1.22627	0.989603	5.67307	64.0409	28.8601	0.276939	19.2058	0.22627	0.0103965	0.623071	0.564469	0.0591406
Qle	baseline	16.7886	-11.2149	0.506359	0.373199	3.82915	33.6333	27.8381	0.937259	11.2149	0.49364	0.626801	0.658919	0.779503	0.414176
Qle	detailed	16.6932	-12.5195	0.374933	0.374218	3.83211	43.6006	28.147	0.927341	12.5195	0.625067	0.625782	0.710834	1.32138	0.389494
Qh	baseline	25.9806	7.58904	0.93596	0.914137	19.9878	1.9359	37.7349	0.405993	7.58904	0.0640386	0.0858634	0.132079	0.699626	0.351482
Qh	detailed	25.1352	8.12849	0.931416	0.921756	20.2848	0.710987	36.2391	0.387891	8.12849	0.0685823	0.0782441	0.111502	0.585347	0.321898
Qtau	baseline	0.0437941	-0.00383782	0.940272	0.827301	0.0001468	0.0165815	0.0629933	0.573006	0.00383782	0.059728	0.172699	0.229357	0.516959	0.149735
Qtau	detailed	0.0418579	-0.0162293	0.807898	0.832226	0.000207713	0.0585315	0.0630228	0.554971	0.0162293	0.192103	0.167774	0.239315	0.534543	0.16842
SoilTemp	baseline	8.15109	0.114759	0.527926	0.702695	6.65801	14.3368	9.6792	0.732642	0.114759	0.472074	0.297305	14.5414	0.707939	0.344972
SoilTemp	detailed	8.29703	0.477219	0.507838	0.697974	8.90737	14.1275	9.79969	0.740935	0.477219	0.492162	0.302026	12.0466	0.149366	0.343847

• MAE: mean absolute error (close to 0 is better)
• MBE: mean bias error (close to 0 is better)
• NSD: ratio of model to obs standard deviation (close to 1 is better)
• R: Pearson’s correlation (close to 1 is better)
• all others: closer to 0 is better

Link to variable definitions

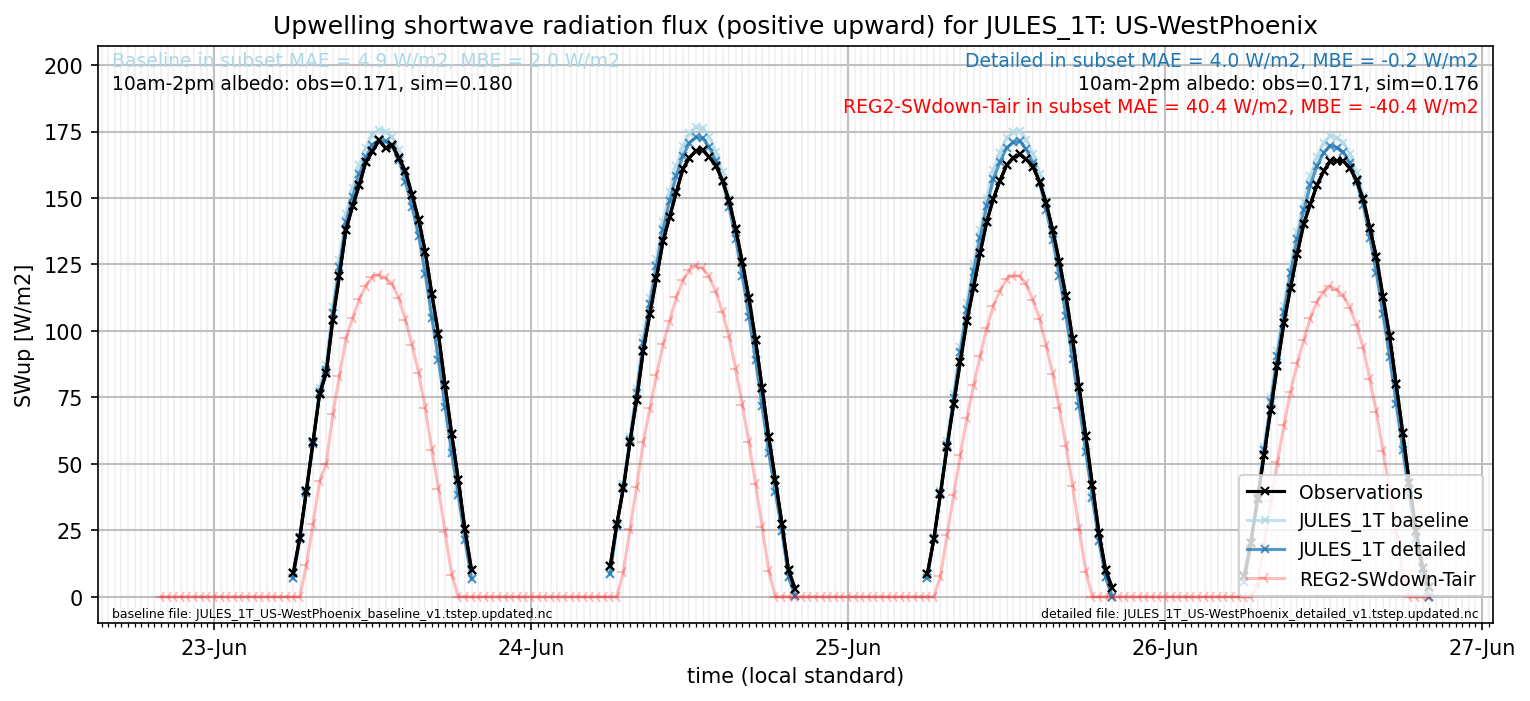

subset_SWup_v0-9

out of range: baseline

out of range: detailed

Link to variable definitions
