Urban-PLUMBER

A multi-site model evaluation project for urban areas

Phase 2 Phase 1 Download project protocol
Mathew Lipson (UNSW), Sue Grimmond (Reading), Martin Best (Met Office),
with observational and modelling participants.

NOTE: Results presented here are highly dependent on how models are configured in this experiment and may be subject to variable output formatting errors. Results are not intended to indicate the quality of any individual model, but to help participants better understand and improve modelling approaches in different urban environments.

KR-Jungnang results

Also see:

Site images


Region Regional map. © OpenStreetMap site_sat Site aerial photo with 500 m radius. © OpenStreetMap, Microsoft

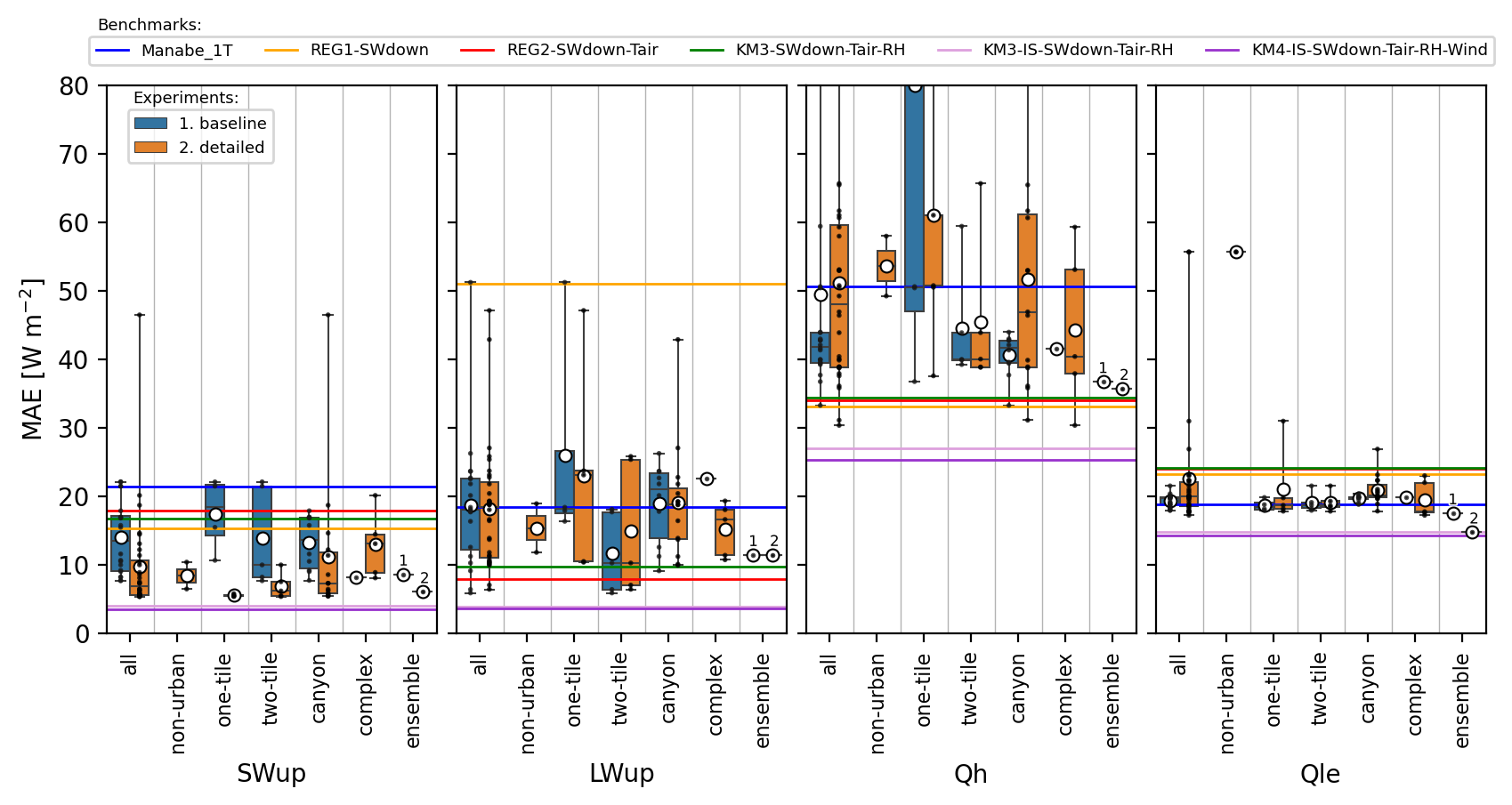

Mean absolute error by cohort

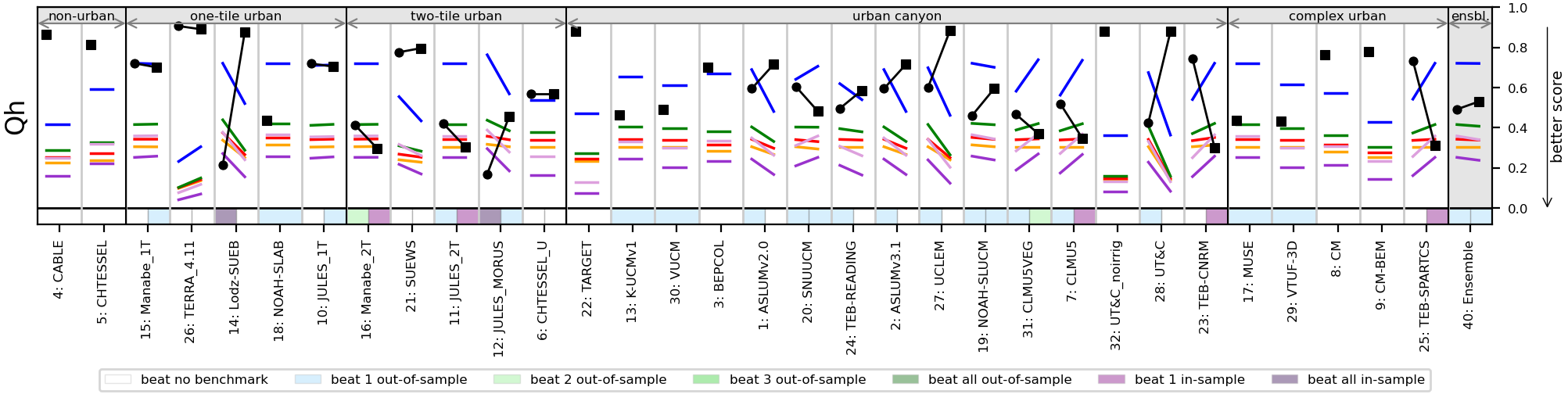

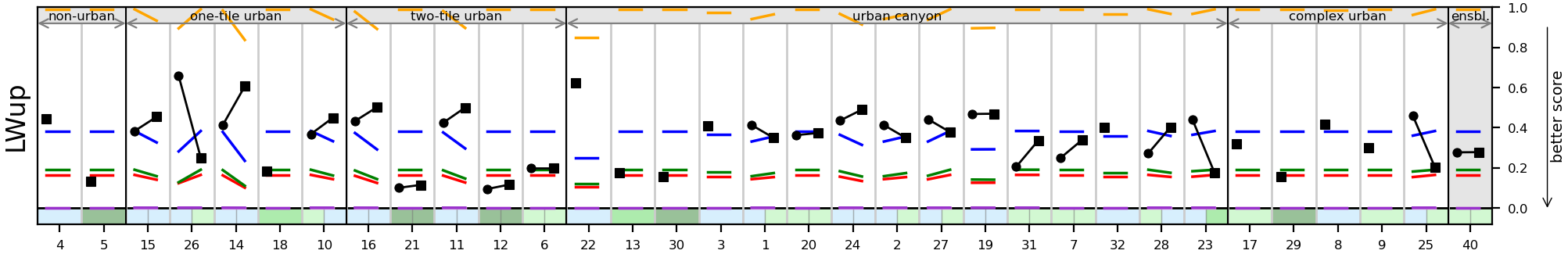

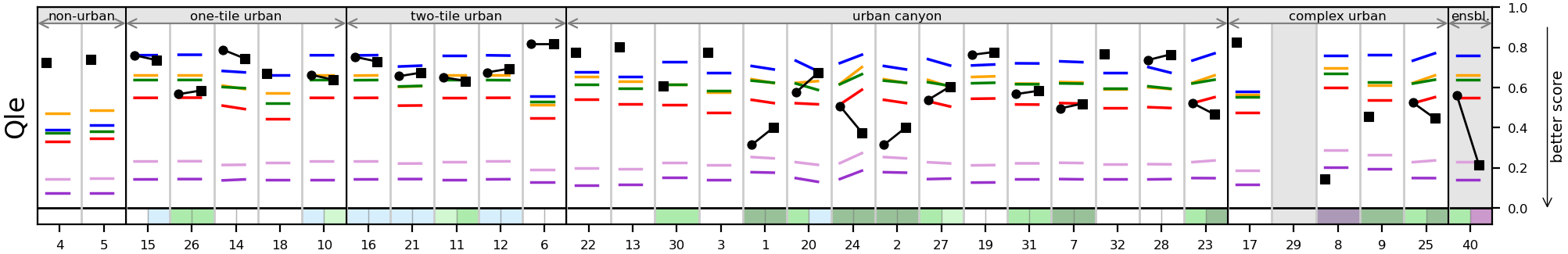

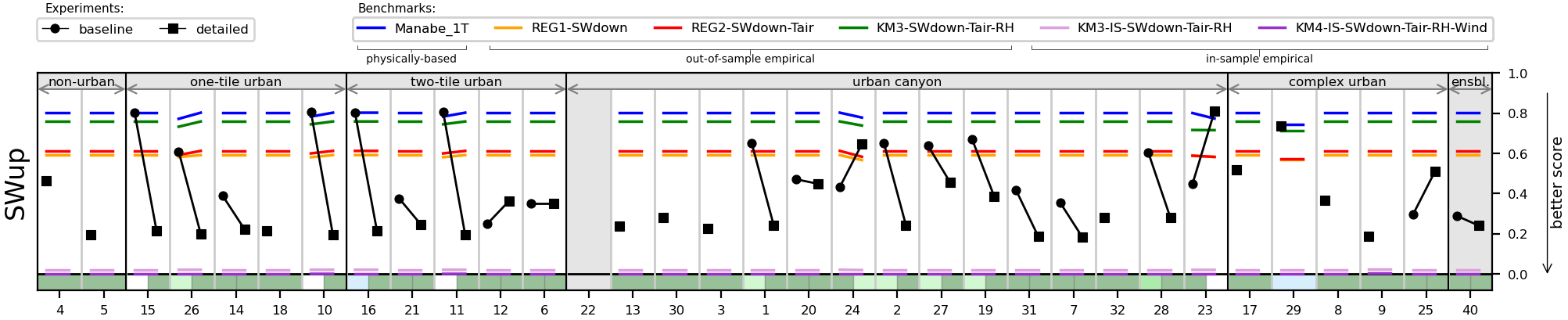

Benchmarking evaluation: PLUMBER2 metrics
